HI1000 Indirect Air Heater, Diesel

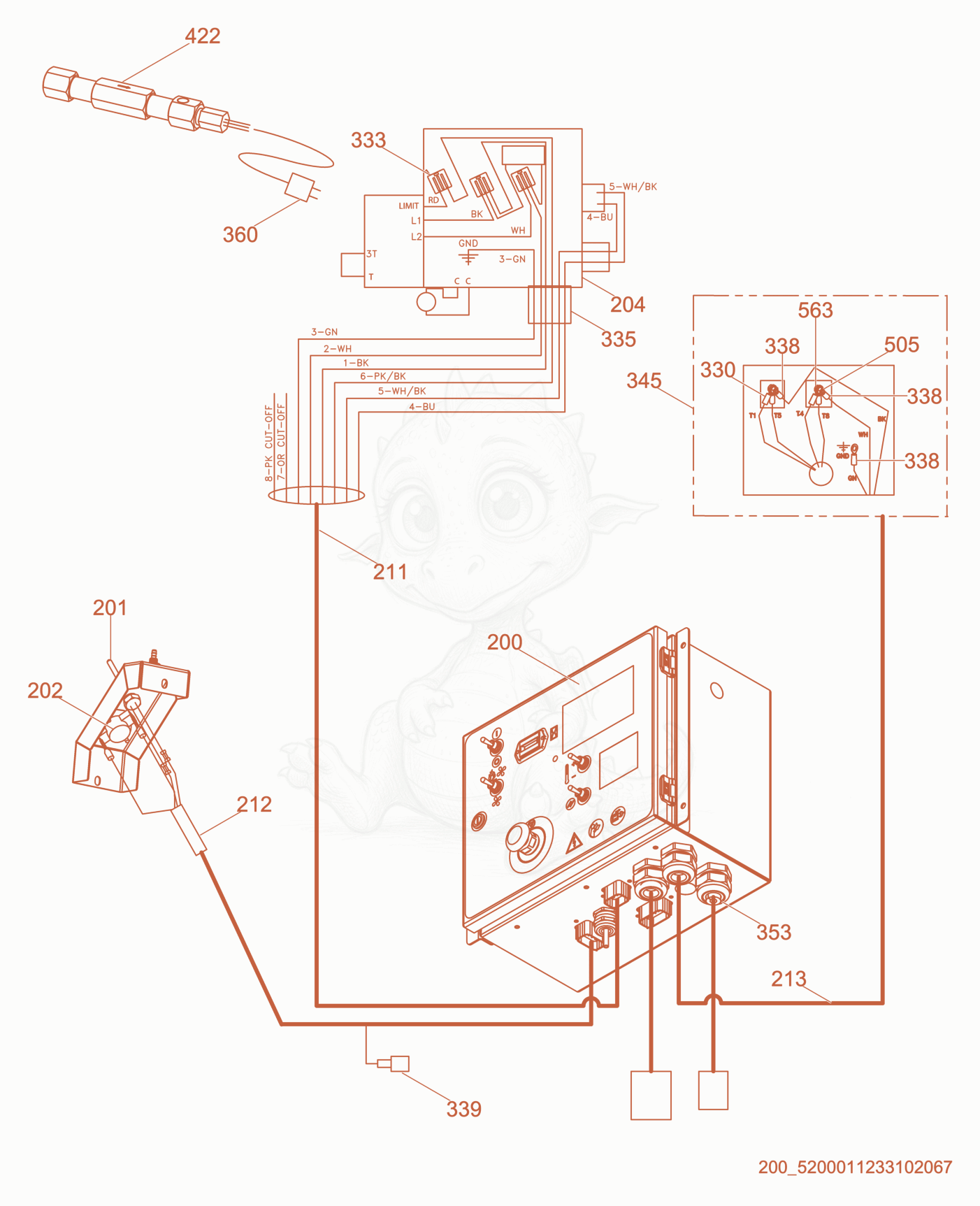

HI1000 Wiring cpl. (2) Diagram
- 2005200018601Not stockedControl panel×1
- 2015200013290Not stockedSensor×1
- 2025200018610Not stockedSensor×1
- 2045200014127Not stockedBurner cpl. (Diesel)×1
- 2115200018603Not stockedCable cpl., burner×1
- 2125200018605Not stockedWiring harness×1
- 2135200020435Not stockedCable×1
- 3305000183789Not stockedRing terminal×4
- 3335000166833Not stockedTerminal×3
- 3355000166473Not stockedCord grip×1
- TERMINAL-8 GA,5/16 IN, NON-INS - 5000192809×3
- 3395100015319Not stockedCap×1
- 3455200021450Not stockedMotor×1
- 3535000166030Not stockedHose cpl.×1
- 3605000166519Not stockedPlug×1
- 4225000192408Not stockedHeater×1
- NUT-LOCK M6 HEX. - 5000010368×2
- SCREW M6 X 10,HX.HD,SER.FLG - 5000073164×2
