HI1000
HI1000 Parts Diagrams
32 factory assemblies. Open one to see the drawing, every part number on it and what we charge for it.

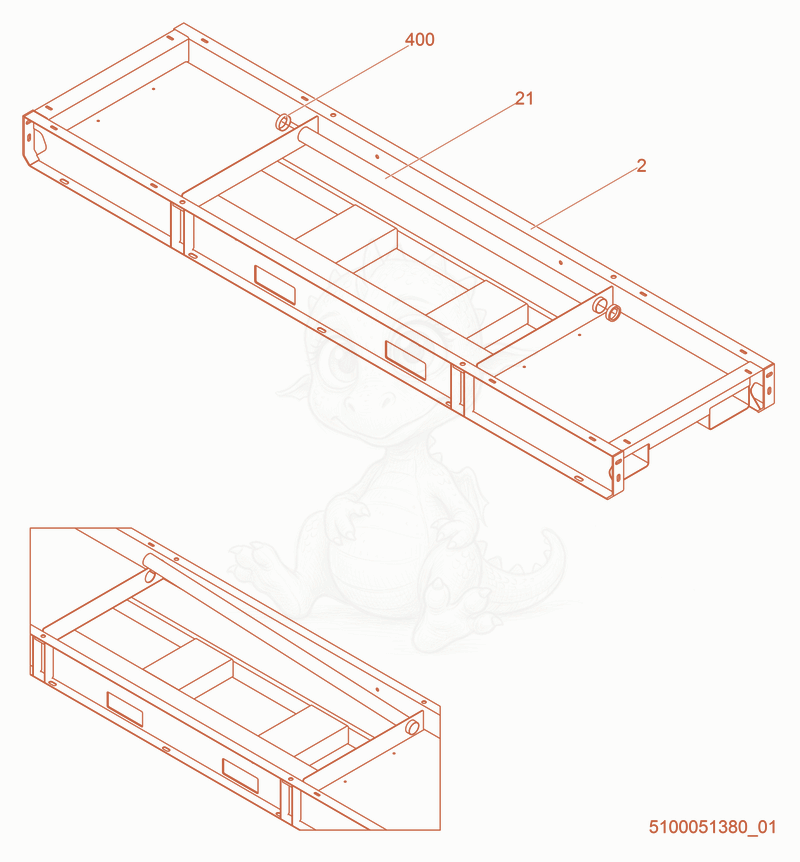

Skid Assembly

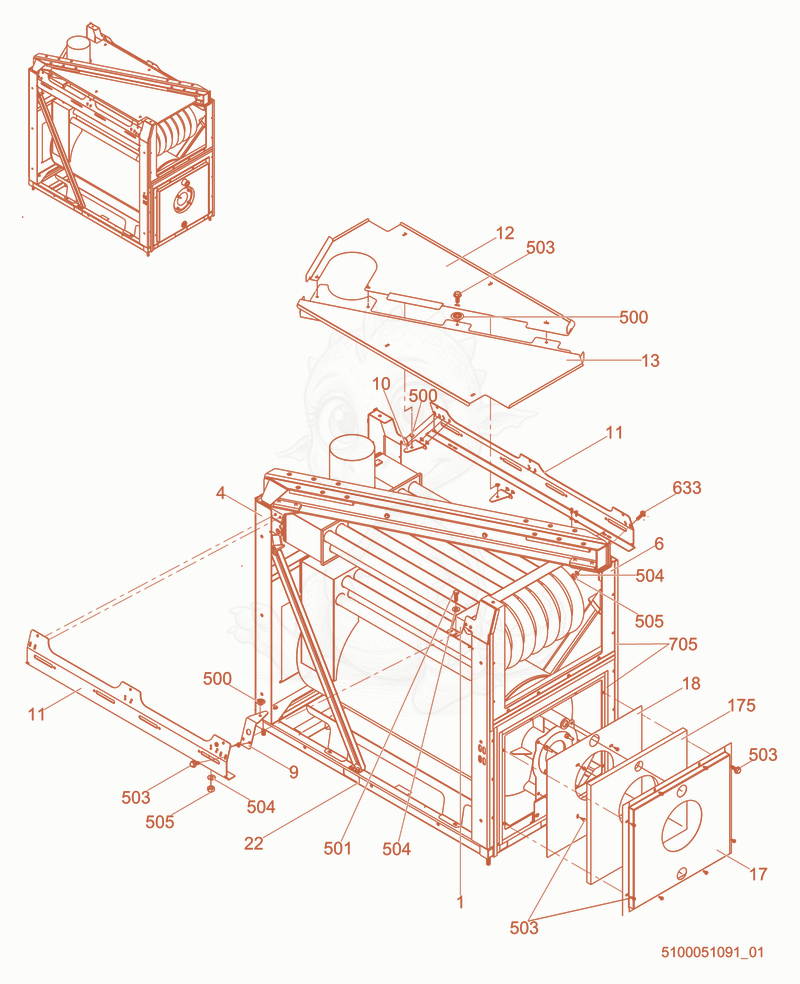

Heater cpl.

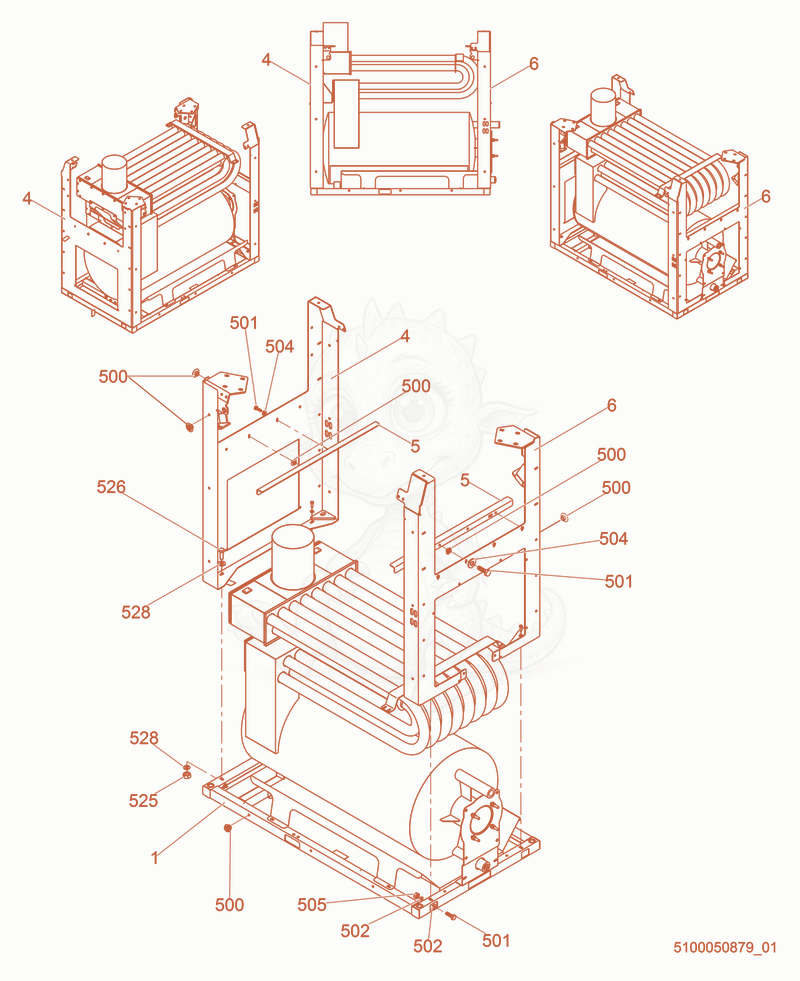

Heater cpl.
Heater cpl.

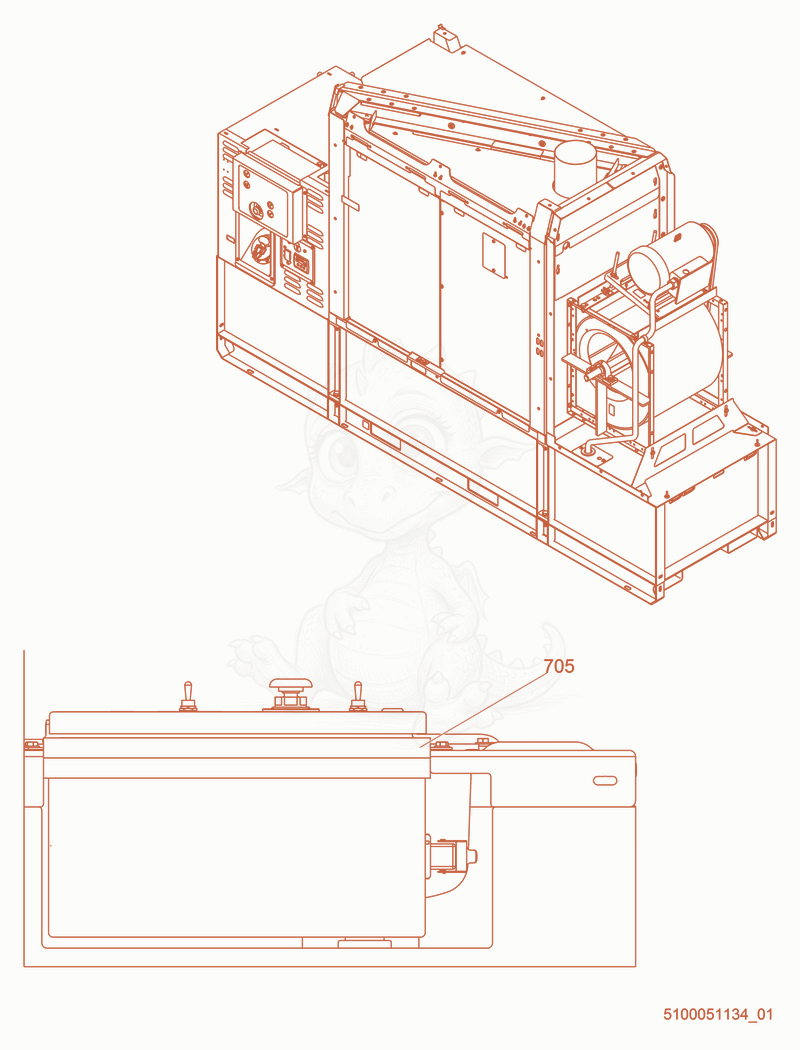

Seal

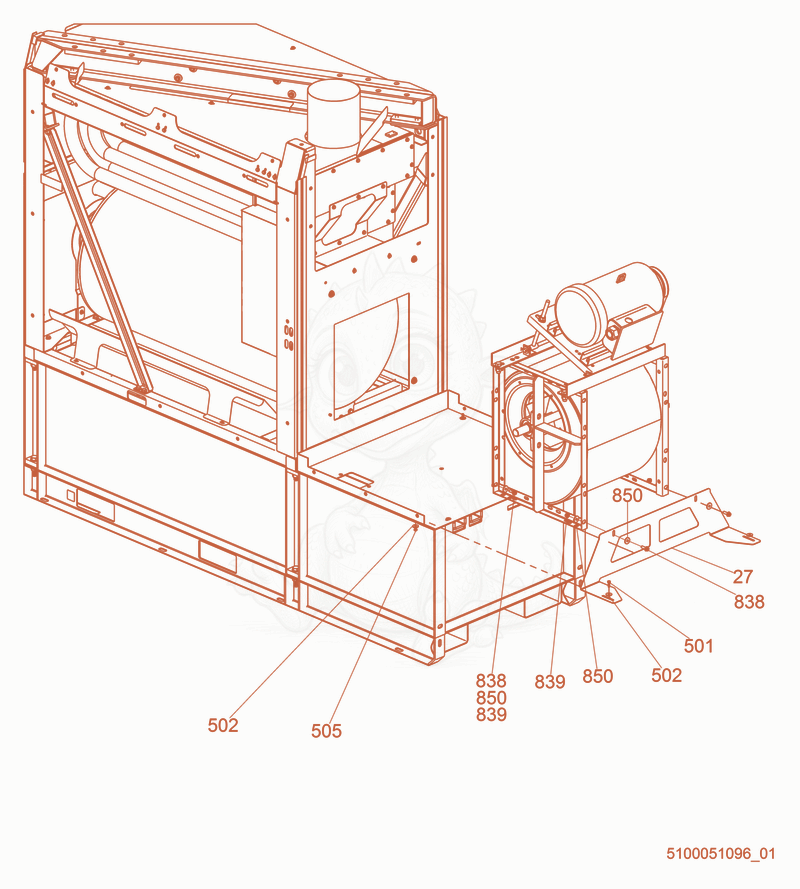

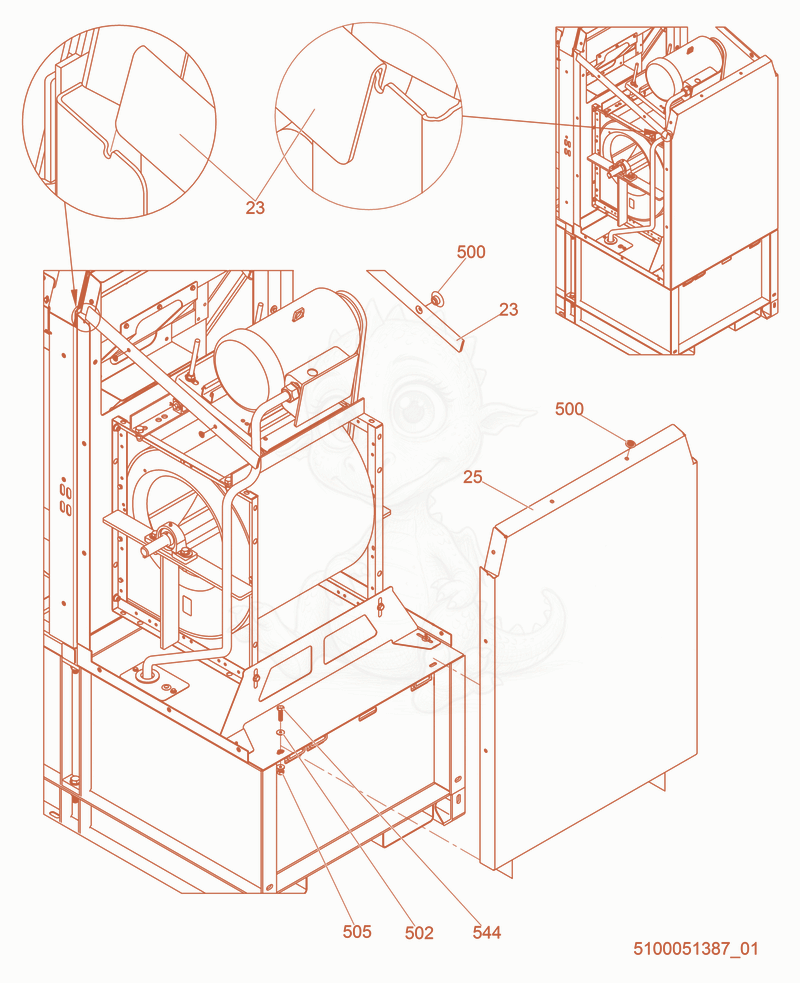

Brace

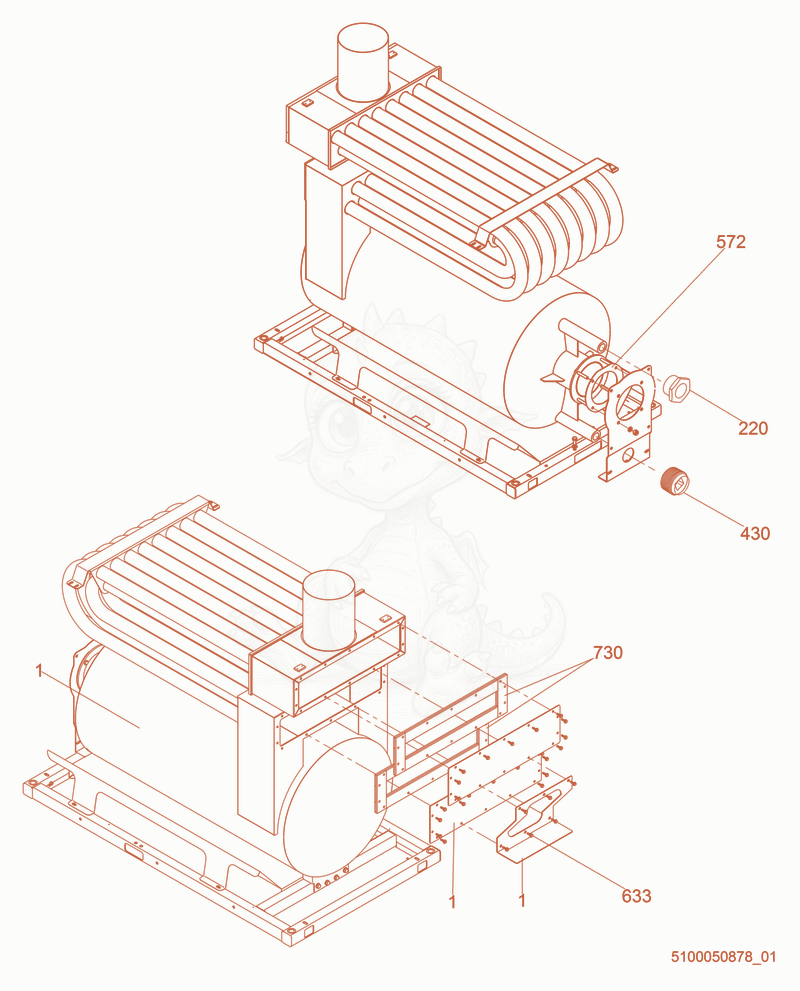

Heat exchanger

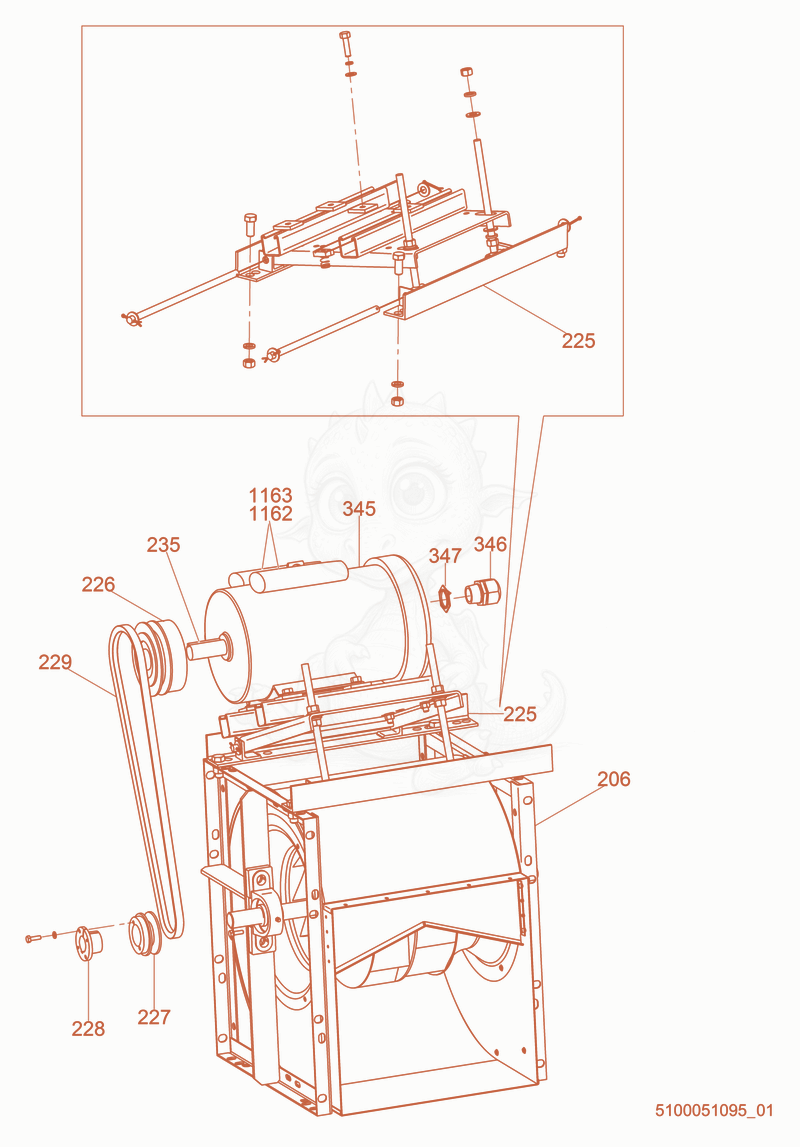

Blower cpl.

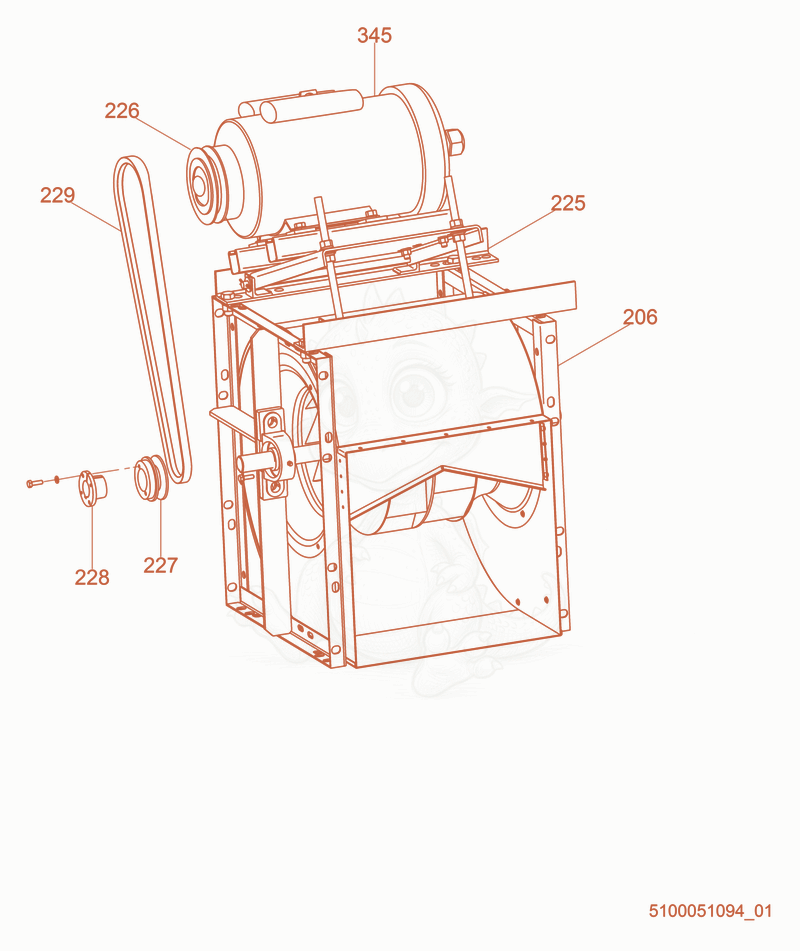

Blower
Blower cpl. 1~

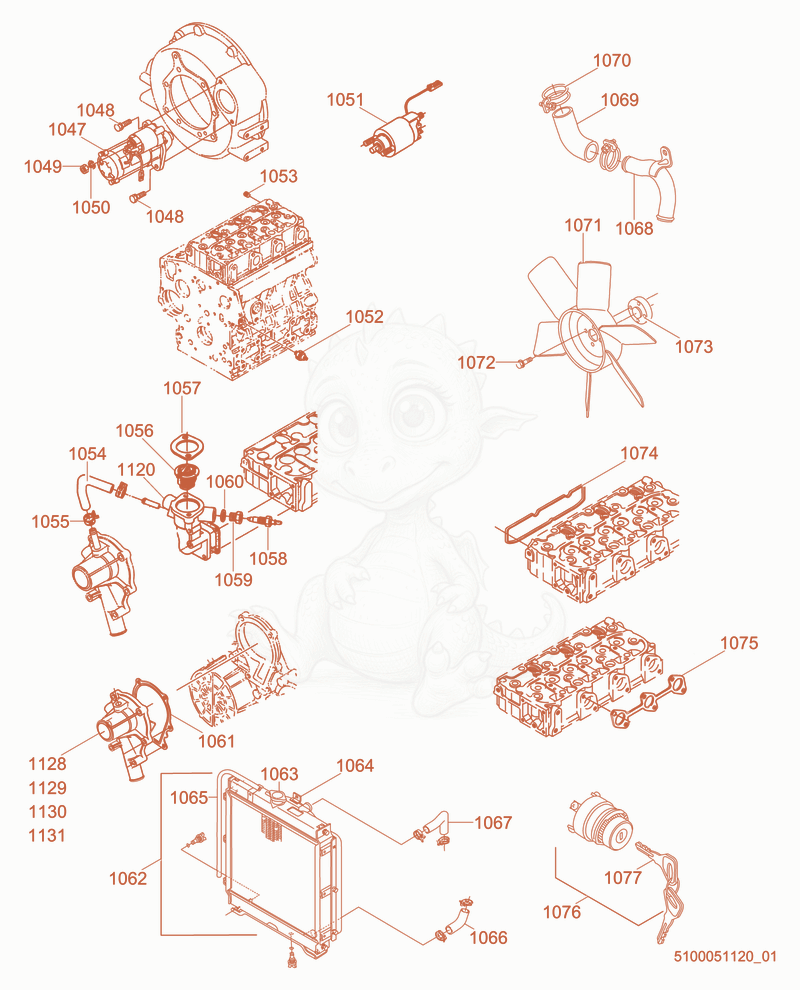

Engine Components (2)
Burner, NG/LP
Blower housing

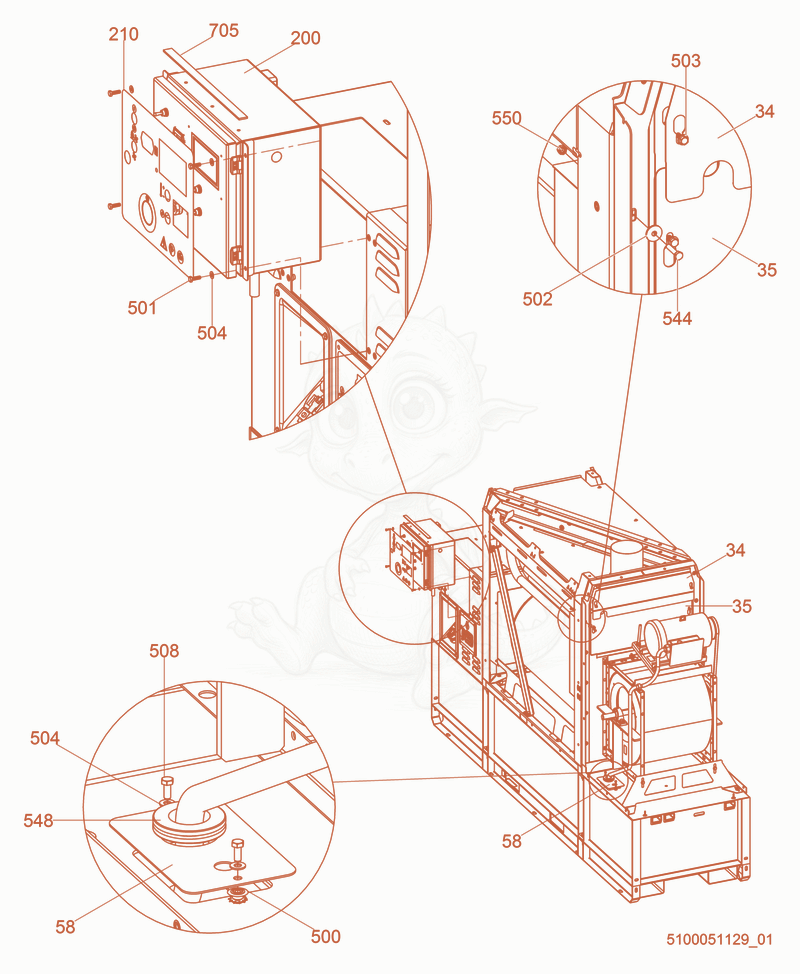

Control box mounting panel
Fuel line plumbing cpl.

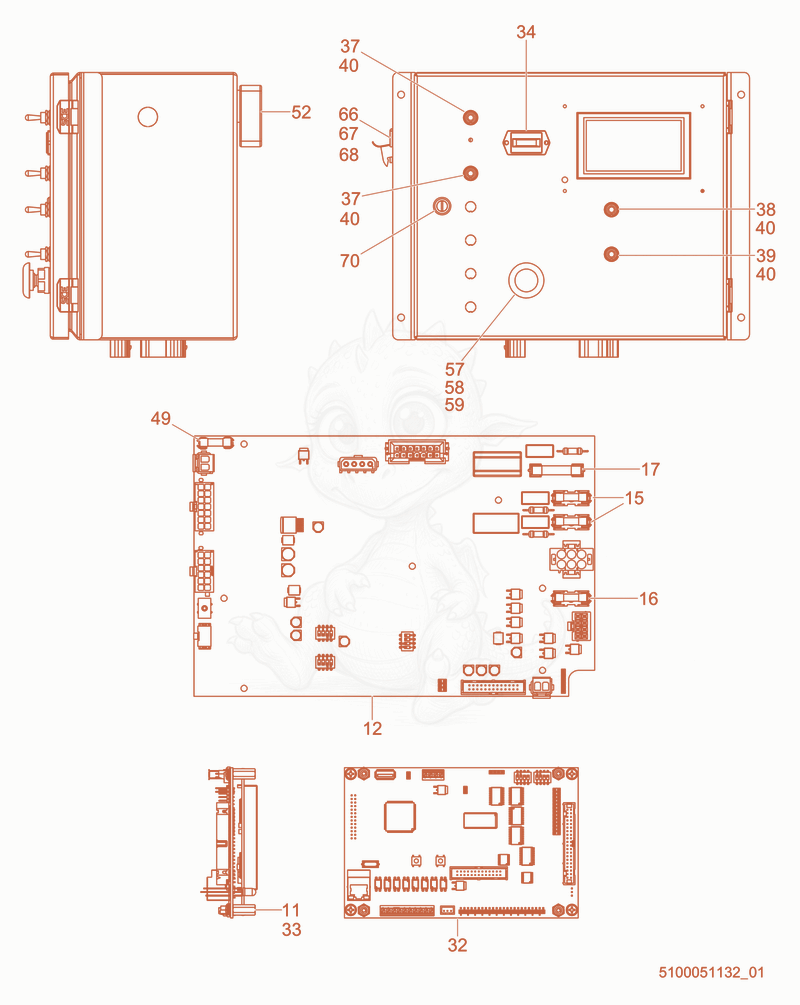

Control Panel cpl. 1
Control Panel cpl. 2
Blower housing
Wiring cpl.
Wiring cpl. (2)

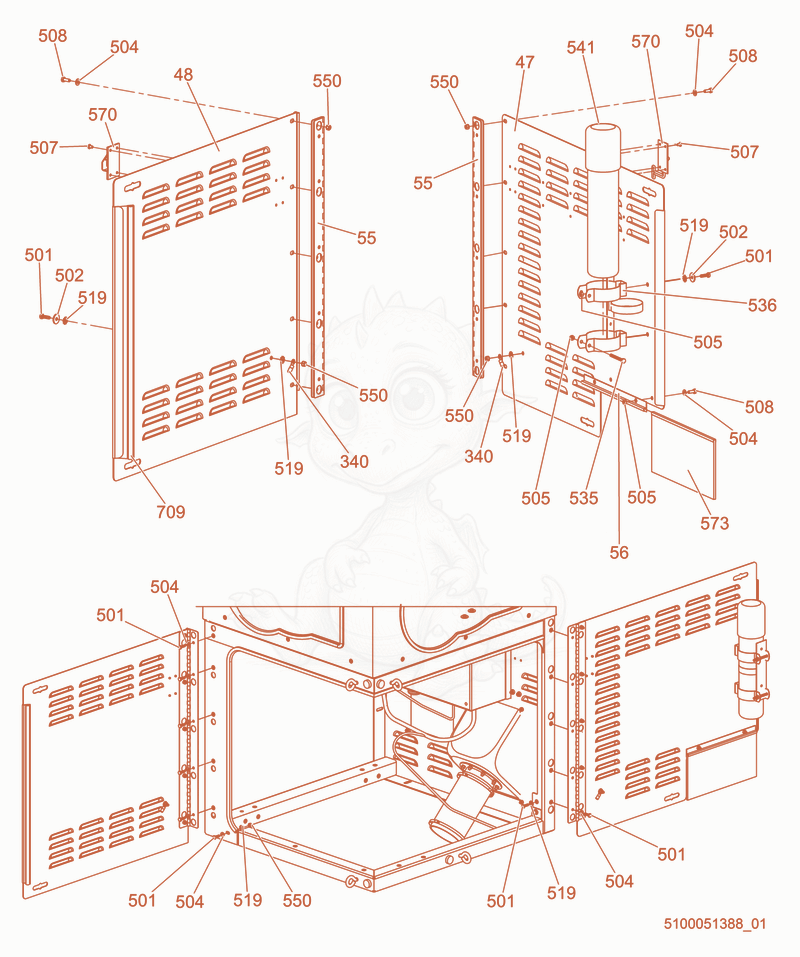

Heatshield
Blower housing

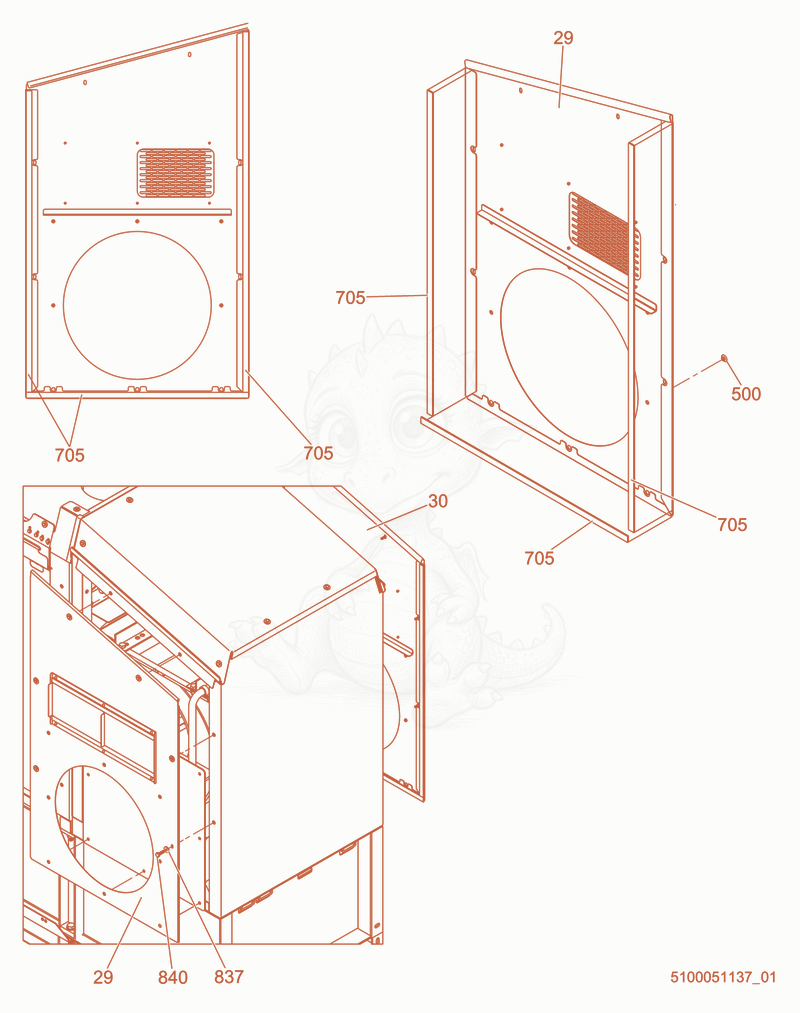

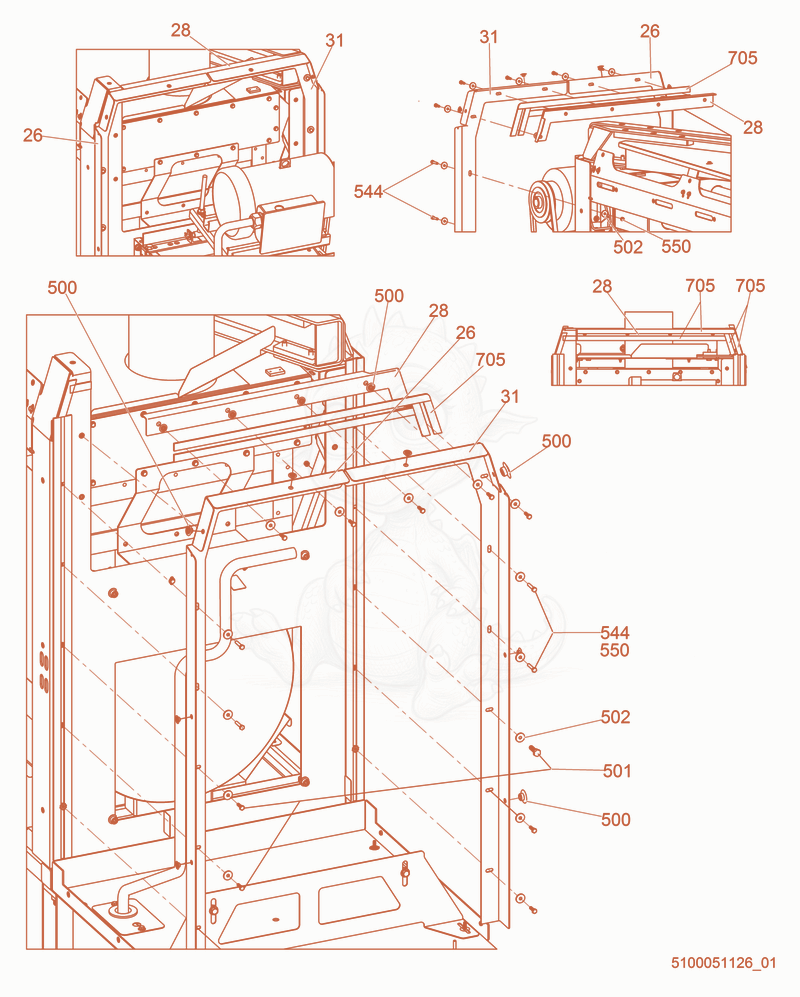

Blower housing (shroud)
Blower housing (shroud)
Outlet box
Duct adapter

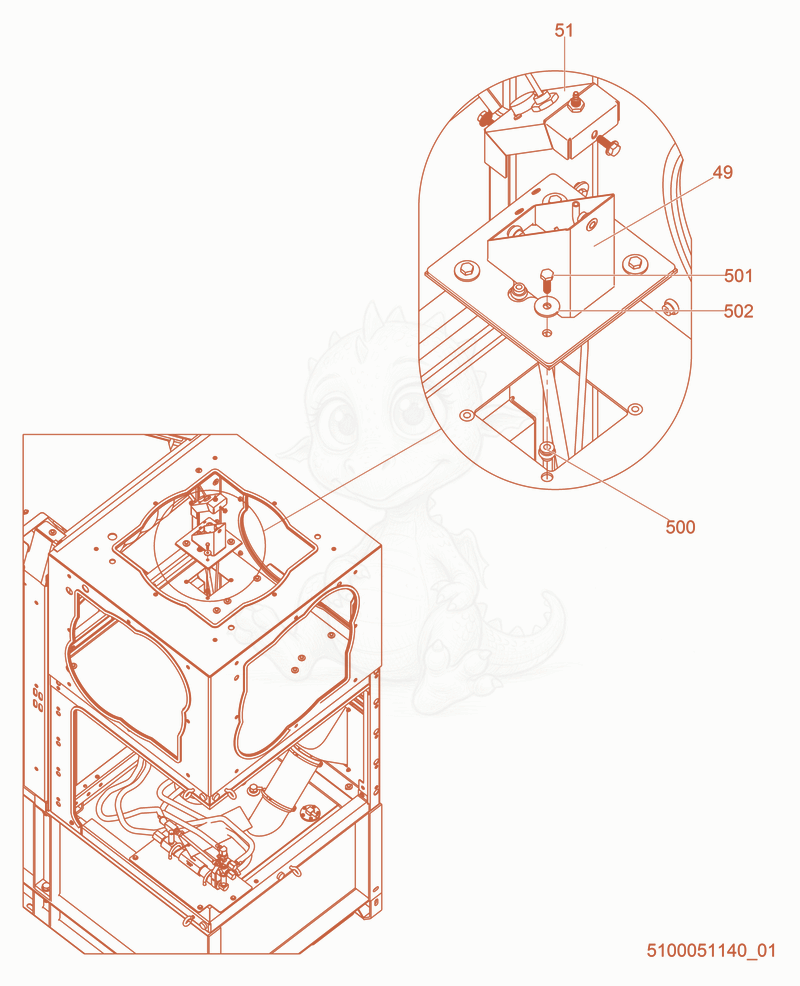

Sensor
Sensor

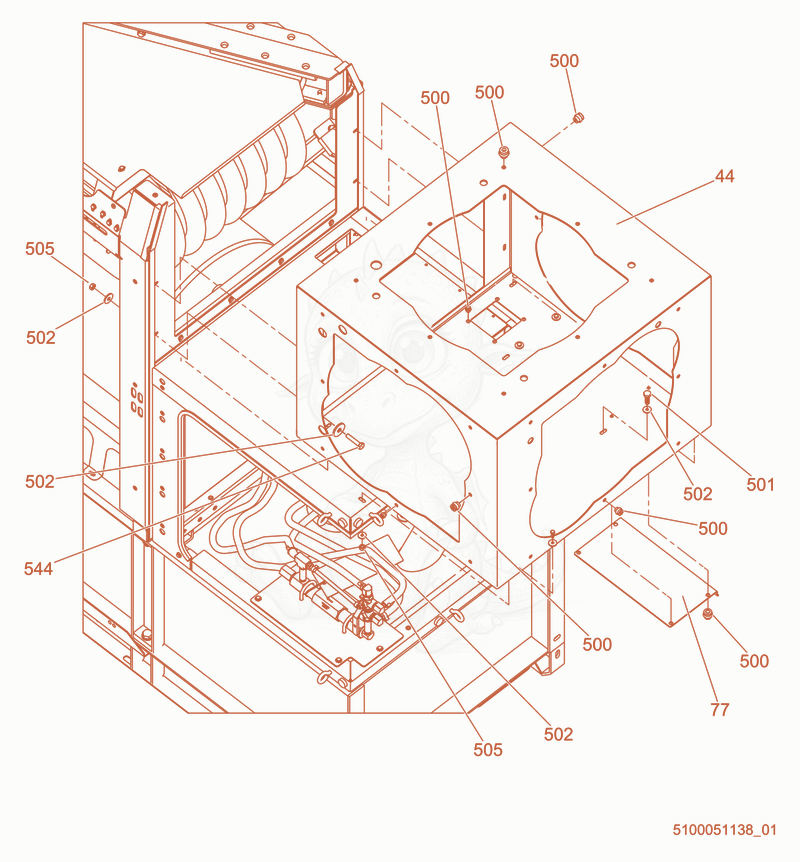

Burner cover

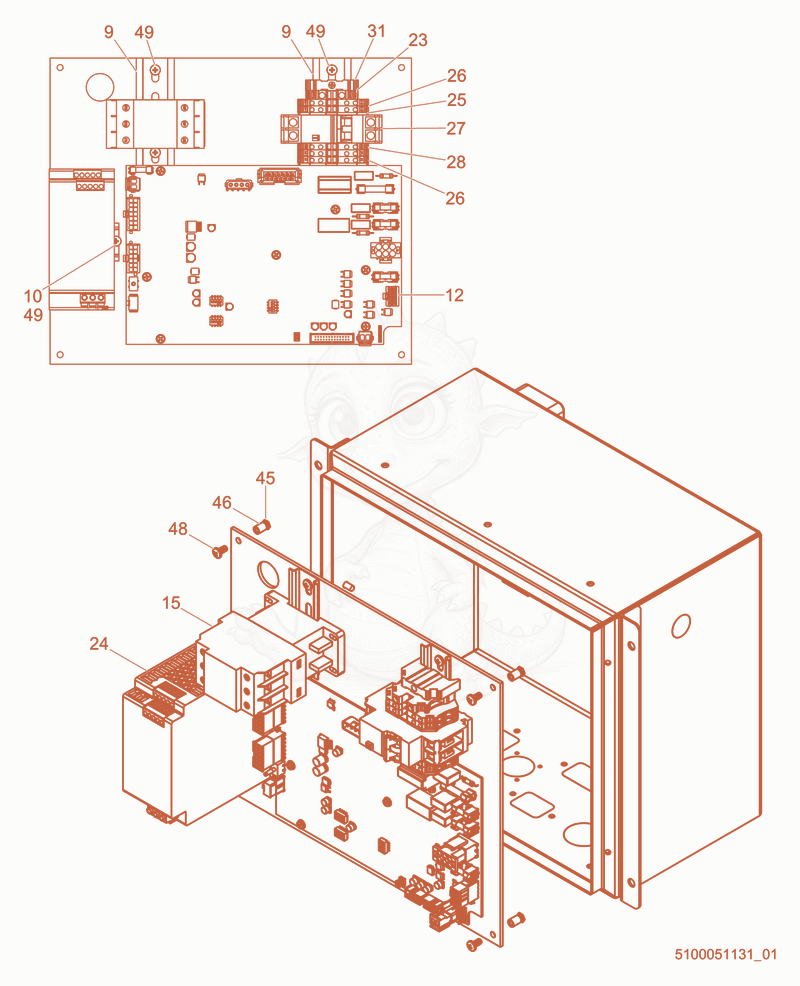

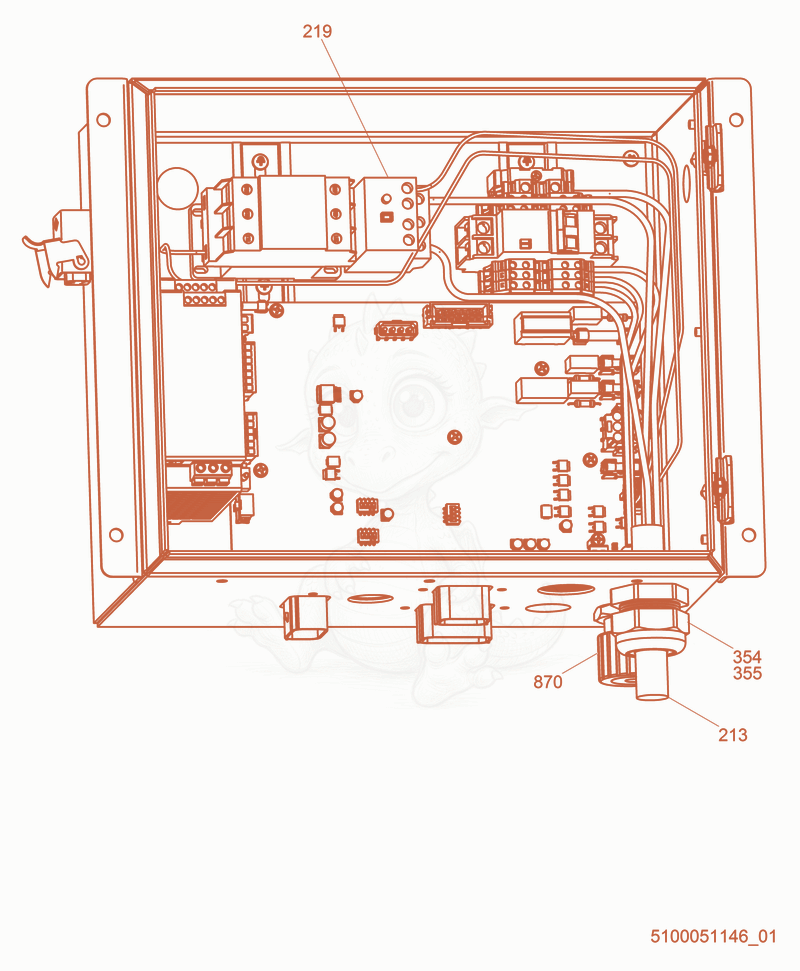

Control box cpl.

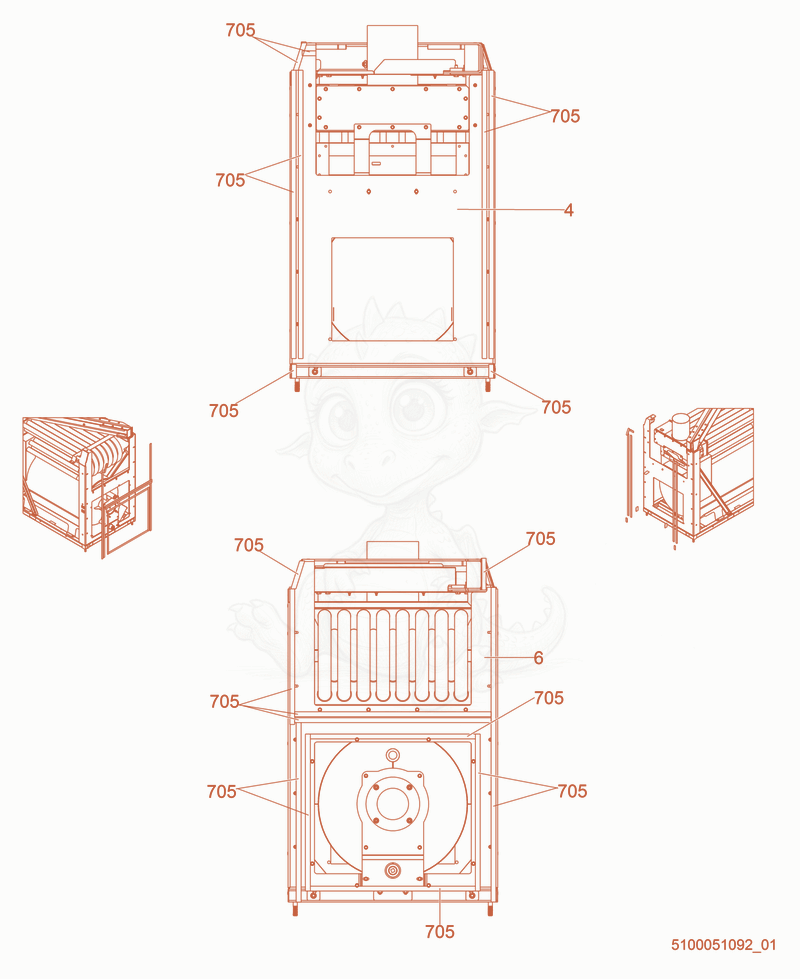

Label Set- Heat exchanger
