HI1000 Indirect Air Heater, Diesel

HI1000 Control box mounting panel Diagram

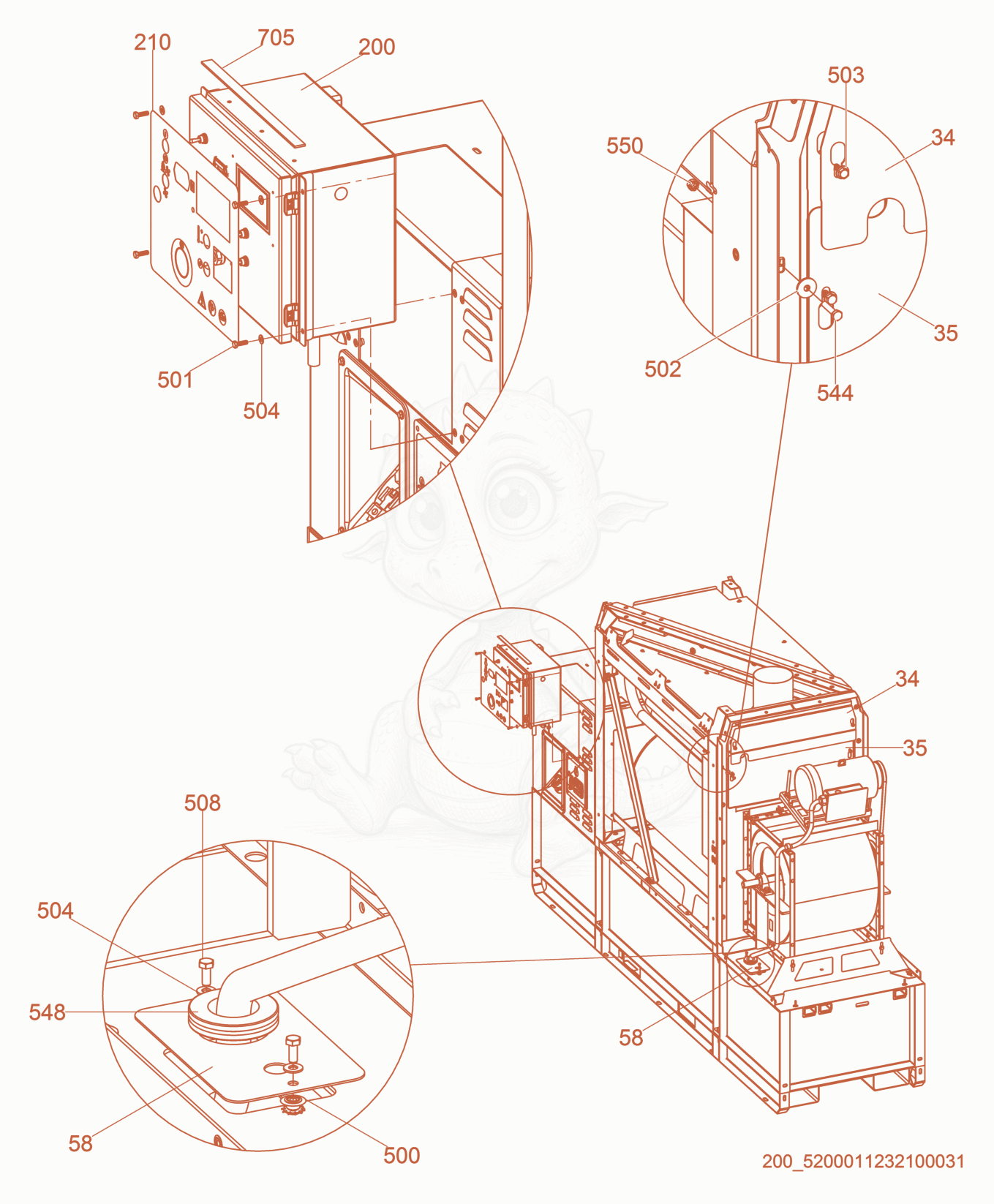

Exploded parts diagram of the Control box mounting panel of a Wacker Neuson HI1000, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 345200015516Not stocked
    Panel×1
  • 355200015517Not stocked
    Panel×1
  • 585200000508Not stocked
    Cover×1
  • 2005200018601Not stocked
    Control panel×1
  • 2105200018764Not stocked
    Label-control panel×1
  • 5005000173960Not stocked
    Nut×2
  • 5015000189215Not stocked
    Hexagonal head cap screw×8
  • 5025000192389Not stocked
    Flat washer×4
  • 5035000028949
    $0.29
    SCREW M6 X 16,HX.HD,SER.FLG - 5000028949×4
  • 5045000192393Not stocked
    Flat washer×10
  • 5085200001234Not stocked
    Hex screw×2
  • 5445000173966
    $0.11
    SCREW-M6X30,HX. HD. - 5000173966×2
  • 5485000172467Not stocked
    Grommet×1
  • 5505000177095Not stocked
    Hexagon nut×4
  • 7055100041966Not stocked
    Seal×1
