HI 770 XHD Indirect Air Heater, Diesel, 1x16

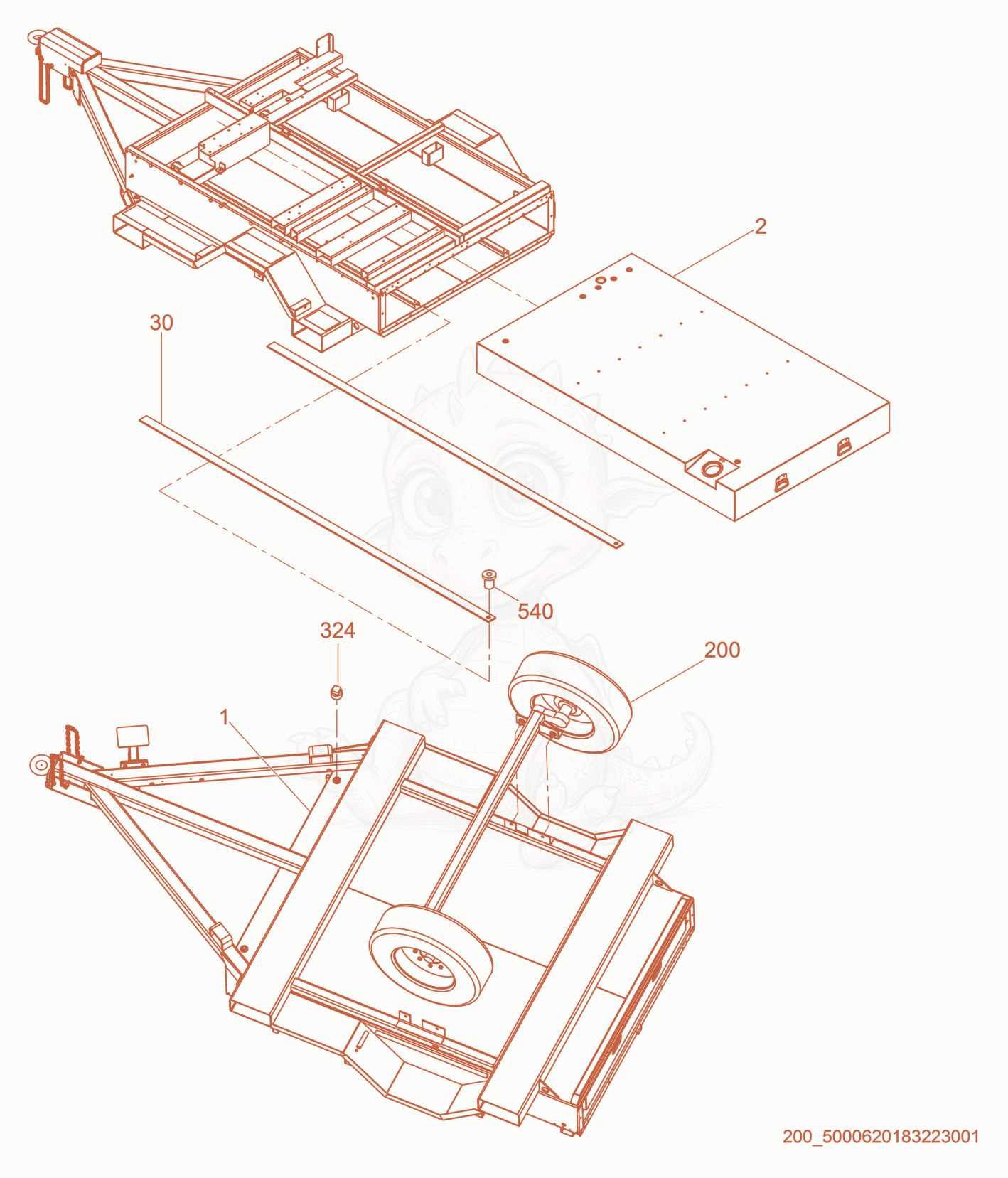

HI770XHD Trailer Frame/Fuel Tank Diagram

Exploded parts diagram of the Trailer Frame/Fuel Tank of a Wacker Neuson HI770XHD, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 25200005918Not stocked
    Fuel tank×1
  • 305000167409Not stocked
    Slide×2
  • 2005000178201Not stocked
    Axle×1
  • 3245000168154Not stocked
    Plug×2
  • 5405000167696Not stocked
    Rivet×2
