HI 770 XHD Indirect Air Heater, Diesel, 1x16

HI770XHD Kit-Combustible Gas Detection Diagram

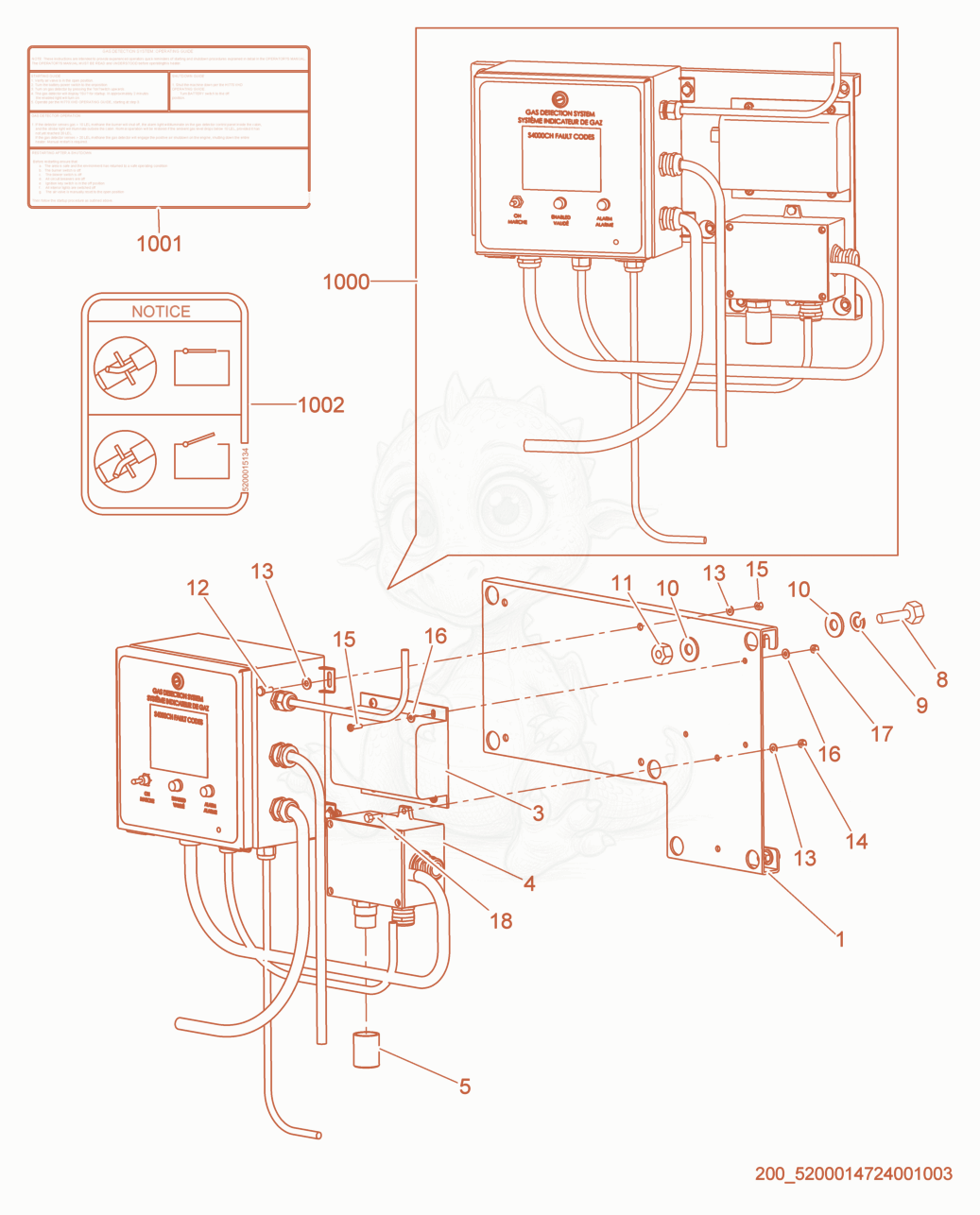

Exploded parts diagram of the Kit-Combustible Gas Detection of a Wacker Neuson HI770XHD, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15200012970Not stocked
    Mounting bracket×1
  • 35200009280Not stocked
    Power unit, converter×1
  • 45200009259Not stocked
    Sensor×1
  • 55200009269Not stocked
    Guard×1
  • 75200014544Not stocked
    Cord grip×1
  • 85000167705Not stocked
    Bolt×6
  • 95000167735Not stocked
    Lock washer×6
  • 105000167730Not stocked
    Flat washer×10
  • 115000167691Not stocked
    Nut×6
  • 125000167704Not stocked
    Bolt×4
  • 135000167729Not stocked
    Flat washer×10
  • 145000167767Not stocked
    Nut×2
  • 155000167709Not stocked
    Screw×8
  • 165000167788Not stocked
    Flat washer×8
  • 175000167688Not stocked
    Nut×4
  • 185000167721Not stocked
    Bolt×2
  • 10005200009447Not stocked
    Kit-Combustible Gas Detection×1
  • 10015200015133Not stocked
    Operating instructions label×1
  • 10025200015134Not stocked
    Label-gas dection air valve position×1
