HSH3000

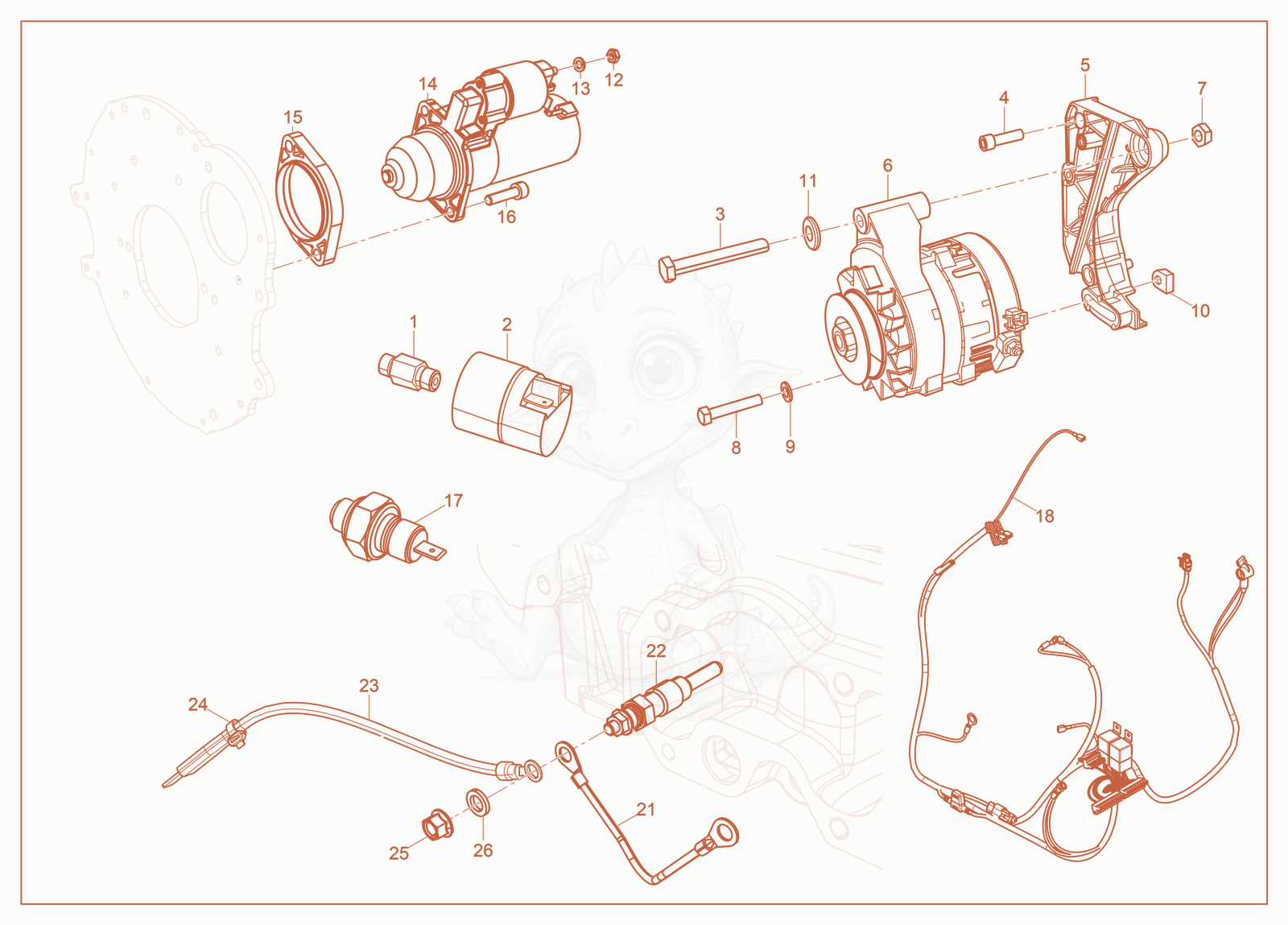

HSH3000 Electrical Components Diagram
- PIPE-UNION M10 X 1 H-36 - 5000160229×1
- INDICATOR-CLOGGING - 5000155680×1
- BOLT M10 X 75 - 5200002696×1
- SCREW M8 X 1.25 X 30 - 5000159476×3
- SUPPORT-ALTERNATOR - 5200002702×1
- ALTERNATOR-12V,33-40A - 5200002694×1
- NUT M10 - 5000083011×1
- SCREW-HEX M8 X 45 - 5000208993×1
- Washer - 5000082293×1
- PLATE-THREADED - 5200002698×1
- WASHER-10MM - 5200002701×1
- NUT-HEX - 5000215493×1
- WASHER - 5000082288×1
- MOTOR-STARTING - 5000160374×1
- flange - 5000206968×1
- BOLT-ALLEN HEAD - 5000161079×2
- SWITCH-PRESS OIL,20PSI,1.4 BAR - 5000155751×1
- HARNESS-LTT,DC,ENGINE,KDW - 5100067791×1
- WIRE-GLOW PLUG - 5000159259×1
- GLOW PLUG 12V - 5100042312×2
- WIRE-GLOW PLUG - 5000160194×1
- CABLE TIE-175MM - 5000209062×1
- Nut - Hex - 5100059623×2
- WASHER,4.3 - 5000209066×2
