HSH3000

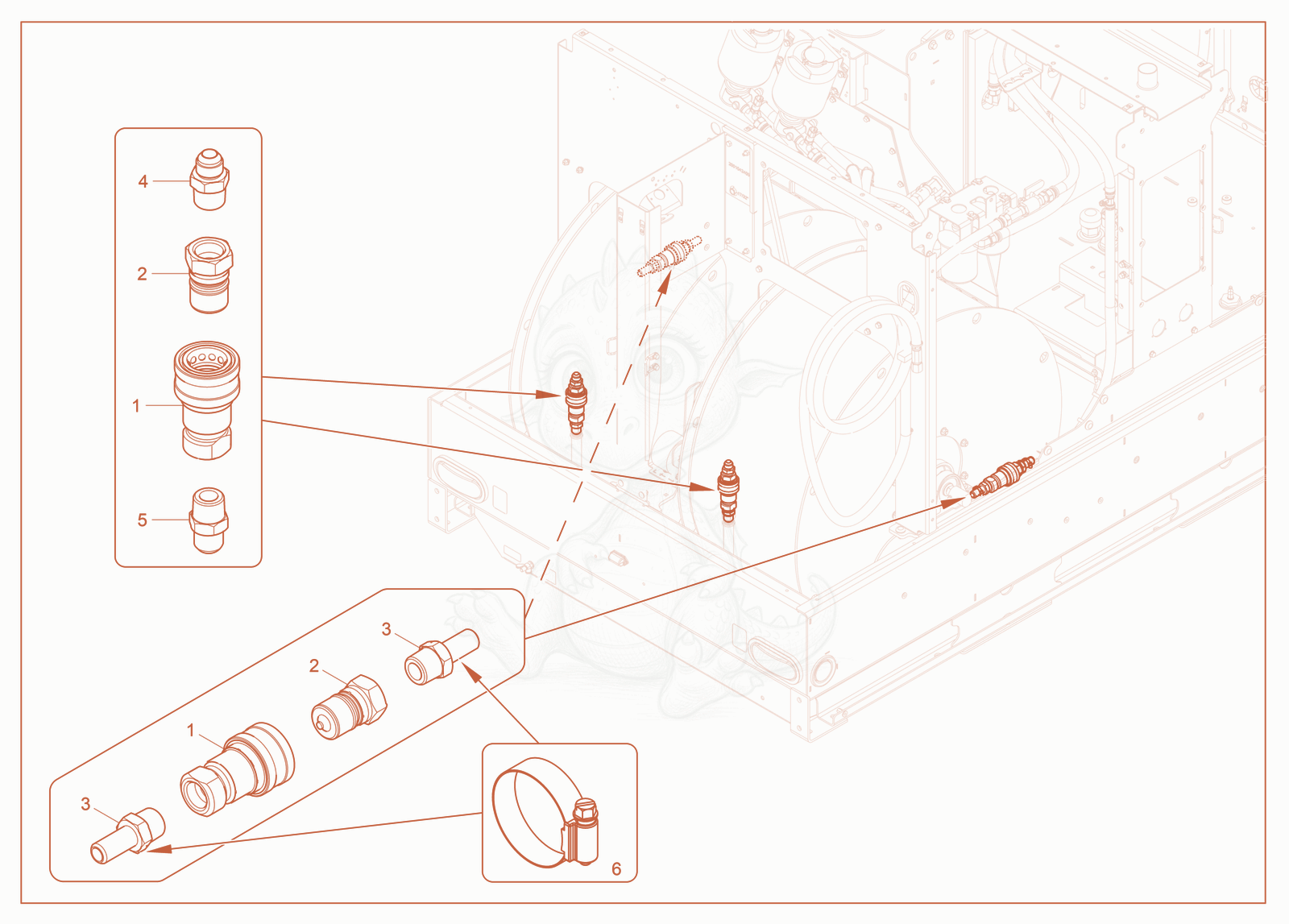

HSH3000 Kit—Spool Expansion Diagram

Exploded parts diagram of the Kit—Spool Expansion of a Wacker Neuson HSH3000, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000168213Not stocked
    Quick disconnect coupling×4
  • 25000168214Not stocked
    Quick disconnect coupling×4
  • 35000168144Not stocked
    Hose barb×4
  • 45000168372Not stocked
    Adapter×2
  • 55100082812Not stocked
    Fitting×2
  • 65200018933Not stocked
    Clamp×4
