HSH3000

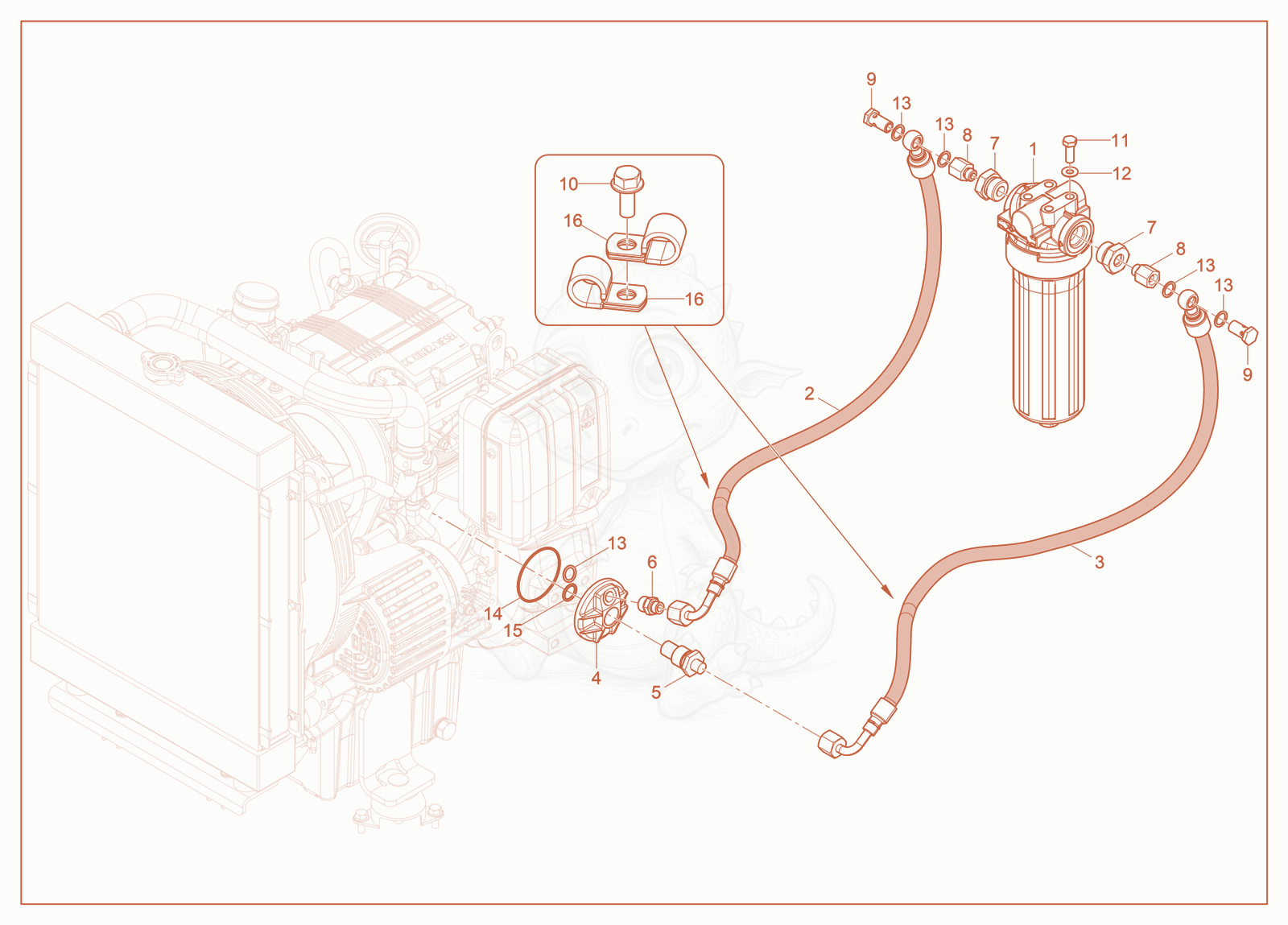

HSH3000 Oil Filter Diagram

Exploded parts diagram of the Oil Filter of a Wacker Neuson HSH3000, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15100056429Not stocked
    FILTER-OIL×1
  • 25100057787Not stocked
    HOSE-EXTENDED RUN×1
  • 35100057787Not stocked
    HOSE-EXTENDED RUN×1
  • 45100057789Not stocked
    Adapter×1
  • 55100057790Not stocked
    ADAPTER-CENTER, OIL×1
  • 65100057796Not stocked
    FITTING-HOSE TO ENG ADAPT×1
  • 75100056655Not stocked
    FITTING-REDUCER -12 SAE MALE,-6 FEMALE×2
  • 85100058008Not stocked
    FITTING-REDUCER -6 SAE MALE,M14 FEMALE×2
  • 95100057793Not stocked
    BOLT-BANJO, EXT RUN×2
  • 101000343396
    $0.18
    BOLT M8 X 20 FLANGED 8.8 ZINC - 1000343396×1
  • 115000025554
    $0.14
    SCREW 3/8-16 X 1 GR5,HX.HD. - 5000025554×2
  • 125100060862
    $0.37
    WASHER 5/16,SEALING - 5100060862×2
  • 135100057795Not stocked
    WASHER-COPPER, SEALING×5
  • 145100057788Not stocked
    O-ring×1
  • 155100059181
    $4.48
    GASKET-O RRING, CENTER BOLT OIL ADAPTER - 5100059181×1
  • 161000397951Not stocked
    P-CLIP 5/8 "" VINYL COAT×2
