L5000/225 ANSI

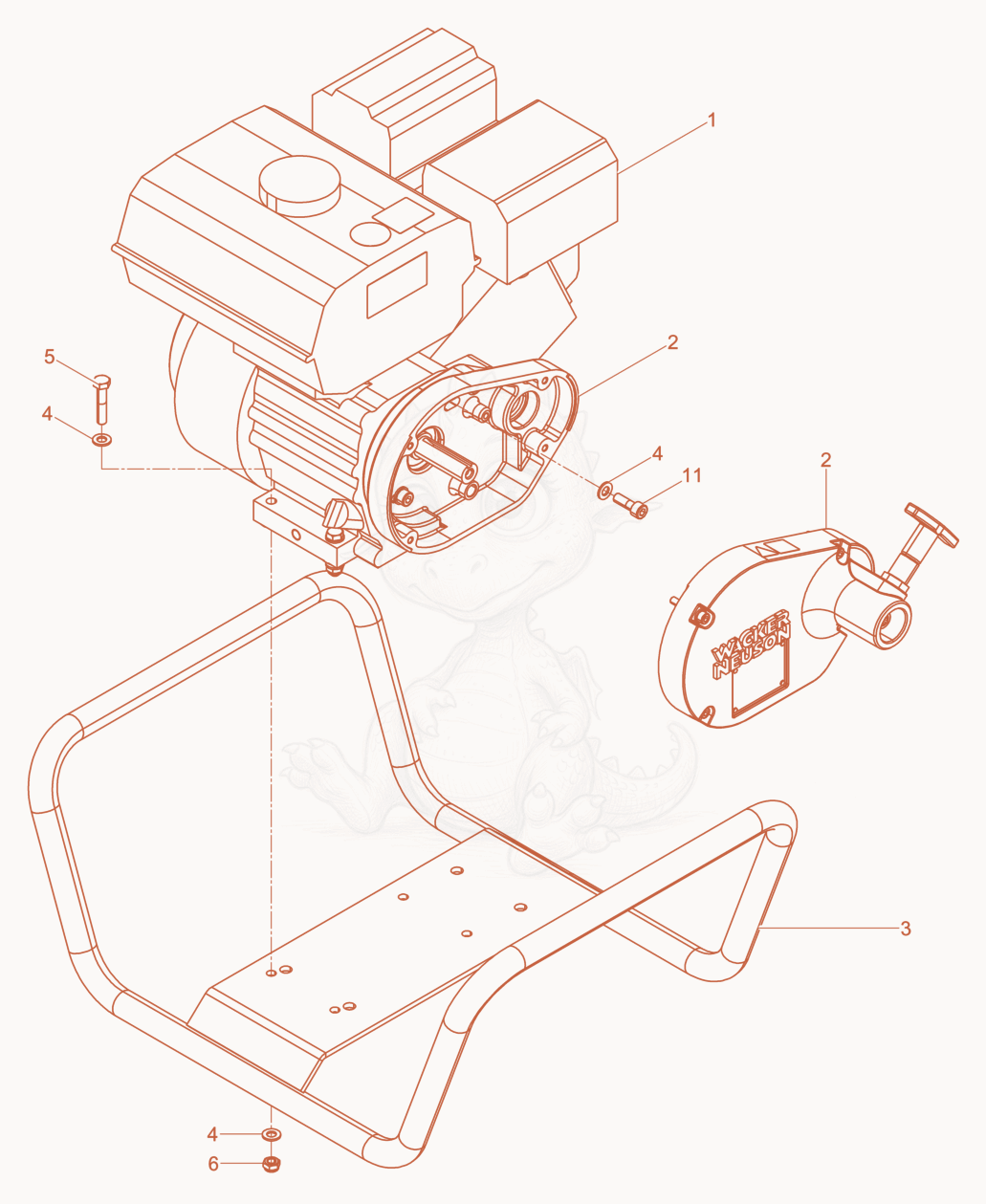

L5000/225ANSI Drive Engine Diagram

Exploded parts diagram of the Drive Engine of a Wacker Neuson L5000/225ANSI, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000203025
    $6,305.89
    ENGINE-DIESEL - 5000203025×1
  • 25000218489
    $1,726.75
    X-5000219140 TRANSMISSION COMPLETE - 5000218489×1
  • 35000218992
    $295.83
    TUBULAR FRAME CPL. - 5000218992×1
  • 45000010622
    $0.10
    WASHER-FLAT,M8,ZINC - 5000010622×12
  • 55000011341
    $0.36
    SCREW M8 X 40 HX.HD. - 5000011341×4
  • 65000010367
    $0.10
    NUT-LOCK M8 HEX - 5000010367×4
  • 115000011538
    $1.80
    SCREW M8 X 45 SOC.HD. - 5000011538×4
