L5000/225 ANSI

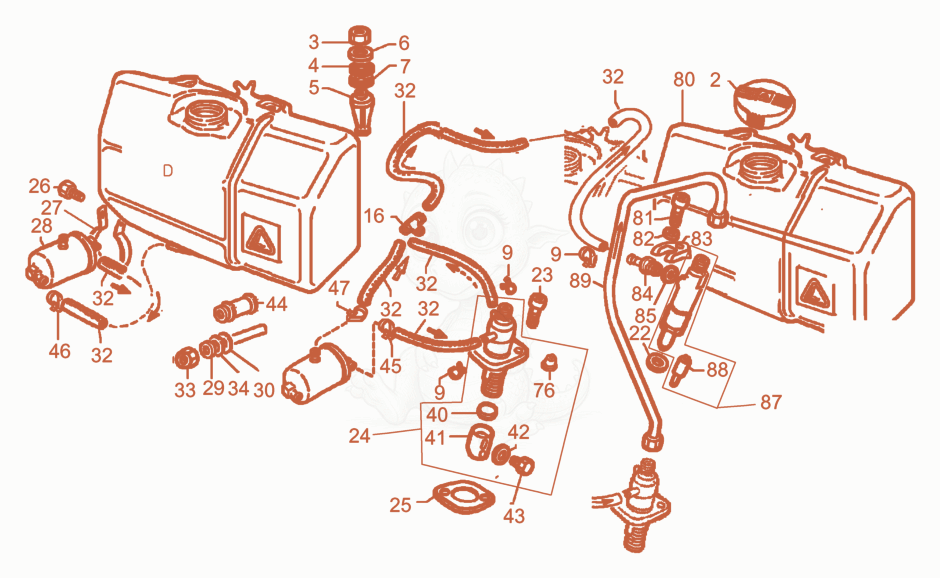

L5000/225ANSI Injection pump-Fuel Tank Diagram
- CAP-FUEL TANK - 5000206241×1
- NUT-FLANGED - 5000063700×2
- WASHER - 5000203727×2
- Spacer - 5000206242×2
- cap - 5000203726×2
- WASHER - 5000203727×2
- Clamp - 5000206243×5
- T-piece - 5000206244×1
- RING-SEAL - 5000103771×1
- RING-SEAL - 5000206245×1
- 235000206246Not stockedScrew×2
- PUMP-INJECTION - 5000206247×1
- GASKET - 5000206248×1
- Screw - 5000206249×1
- clamp - 5000203737×1
- FILTER-FUEL - 5000103754×1
- cap - 5000203726×2
- WASHER - 5000203727×2
- HOSE-FUEL - 5000206250×3
- NUT-FLANGED - 5000063700×2
- WASHER - 5000203727×2
- WASHER - 5000206251×1
- WASHER - 5000206259×1
- WASHER - 5000206258×1
- WASHER - 5000206257×1
- WASHER - 5000206256×1
- WASHER - 5000206255×1
- WASHER - 5000206254×1
- WASHER - 5000206253×1
- WASHER - 5000206252×1
- Tappet - 5000206260×1
- Washer - 5000206261×1
- Screw - 5000206262×1
- Spacer - 5000206263×2
- clamp - 5000082155×1
- Clamp - 5000206264×1
- Clamp - 5000206264×1
- VALVE-CHECK - 5000206265×1
- TANK-FUEL - 5000206266×1
- SCREW M6 X 1 X 30 - 5000159564×1
- Washer - 5000206132×1
- 835000206267Not stockedBracket×1
- BOLT-BANJO - 5000206268×1
- RING-SEAL - 5000206269×1
- NOZZLE-INJECTION COMPL. - 5000211906×1
- Jet - 5000206271×1
- HOSE-LINE PRESSURE - 5000211907×1
