L5000/225 ANSI

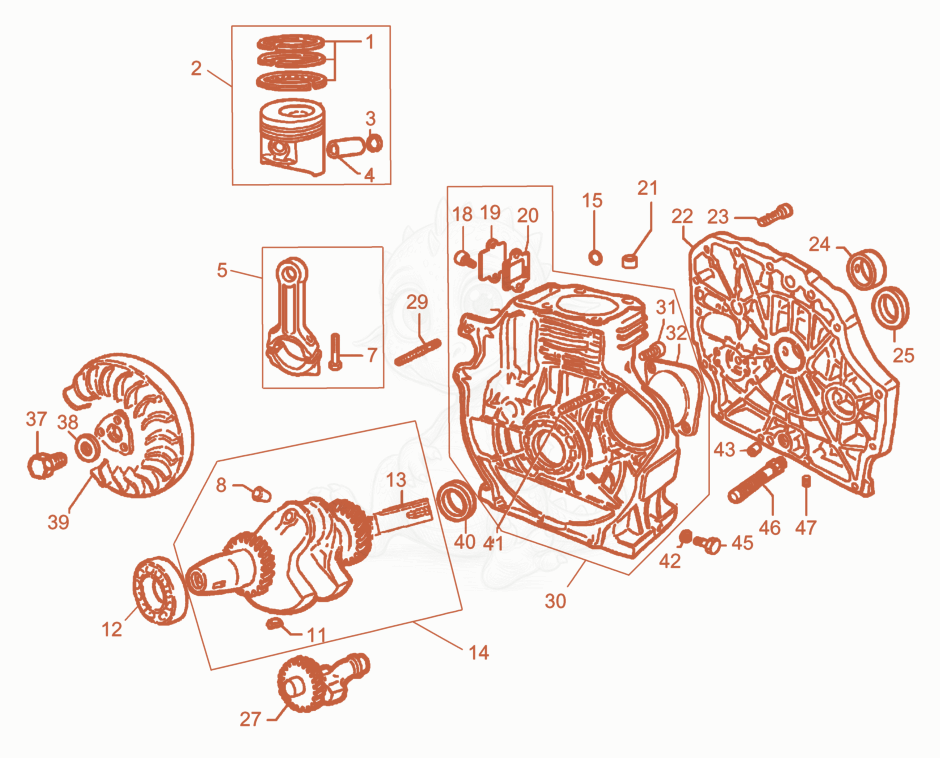

L5000/225ANSI Connecting rod-Crankshaft-Crankcase-Flywheel Diagram
- SET-PISTON RING - 5000206139×1
- SET-PISTON RING - 5000206140×1
- SET-PISTON RING - 5000206141×1
- PISTON COMPLETE - 5000206142×1
- PISTON COMPLETE - 5000206143×1
- PISTON COMPLETE - 5000206144×1
- RING-RETAINING - 5000206145×2
- PIN-PISTON - 5000206146×1
- Connecting rod compl. - 5000206147×1
- CONNECTING ROD COMPL. - 5000206148×1
- CONNECTING ROD COMPL. - 5000206149×1
- Screw - 5000206150×2
- plug - 5000159454×1
- KEY-FEATHER - 5000206151×1
- BEARING-ROLLER - 5000206153×1
- KEY-FEATHER - 5000206152×1
- Crankshaft 5000206154×1
- O-Ring - 5000206155×1
- SCREW M8 X 1.25 X 16 - 5000159469×2
- Flange - 5000206156×1
- Gasket - 5000206157×1
- sleeve - 5000159257×2
- COVER-HOUSING - 5000206158×1
- SCREW M8 X 35 - 5000084171×14
- Bearing - 5000206159×1
- BEARING - 5000206160×1
- BEARING - 5000206161×1
- BEARING - 5000206162×1
- SEAL-SHAFT,ROTARY - 5000103698×1
- SHAFT BALANCER - 5000206163×1
- STUD - 5000206164×1
- HOUSING-CRANKCASE - 5000206165×1
- Screw - 5000206166×2
- Cover - 5000206167×1
- SCREW-HEX - 5000103673×1
- Washer - 5000103672×1
- FLYWHEEL - 5000206168×1
- SEAL-SHAFT,ROTARY - 5000103699×1
- STUD - 5000206164×1
- RING-SEAL - 5000206169×2
- SLEEVE-CENTERING - 5000206170×2
- PLUG-THREADED - 5000159451×2
- Oil Filter - 5000103701×1
- Screw - 5000082360×2
