RC70

RC70DPFROPS vibro automatic Diagram

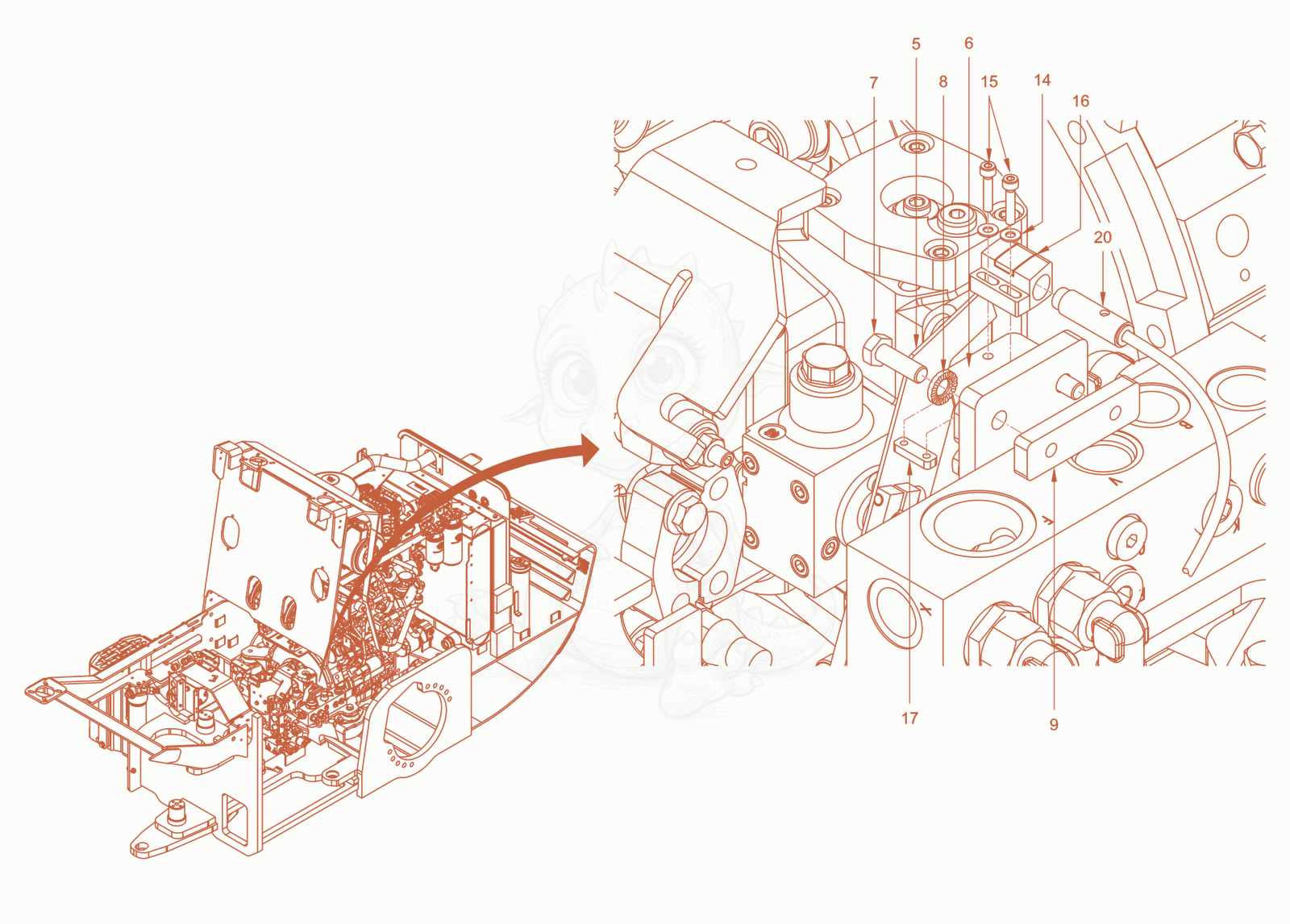

Exploded parts diagram of the vibro automatic of a Wacker Neuson RC70DPFROPS, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 55100040603Not stocked
    metal plate×1
  • 65100040604Not stocked
    metal plate×1
  • 75100012613
    $1.57
    Hexagon screw - 5100012613×2
  • 85100012966
    $1.57
    Locking washer - 5100012966×2
  • 95100040605Not stocked
    metal plate×1
  • 145100013438
    $1.57
    Washer - 5100013438×2
  • 155100040606Not stocked
    cheese-head screw×2
  • 165100040607Not stocked
    mounting clip×1
  • 175100040608Not stocked
    metal plate×1
  • 205100040609Not stocked
    cable harness×1
