RC70

RC70DPFROPS camera Diagram

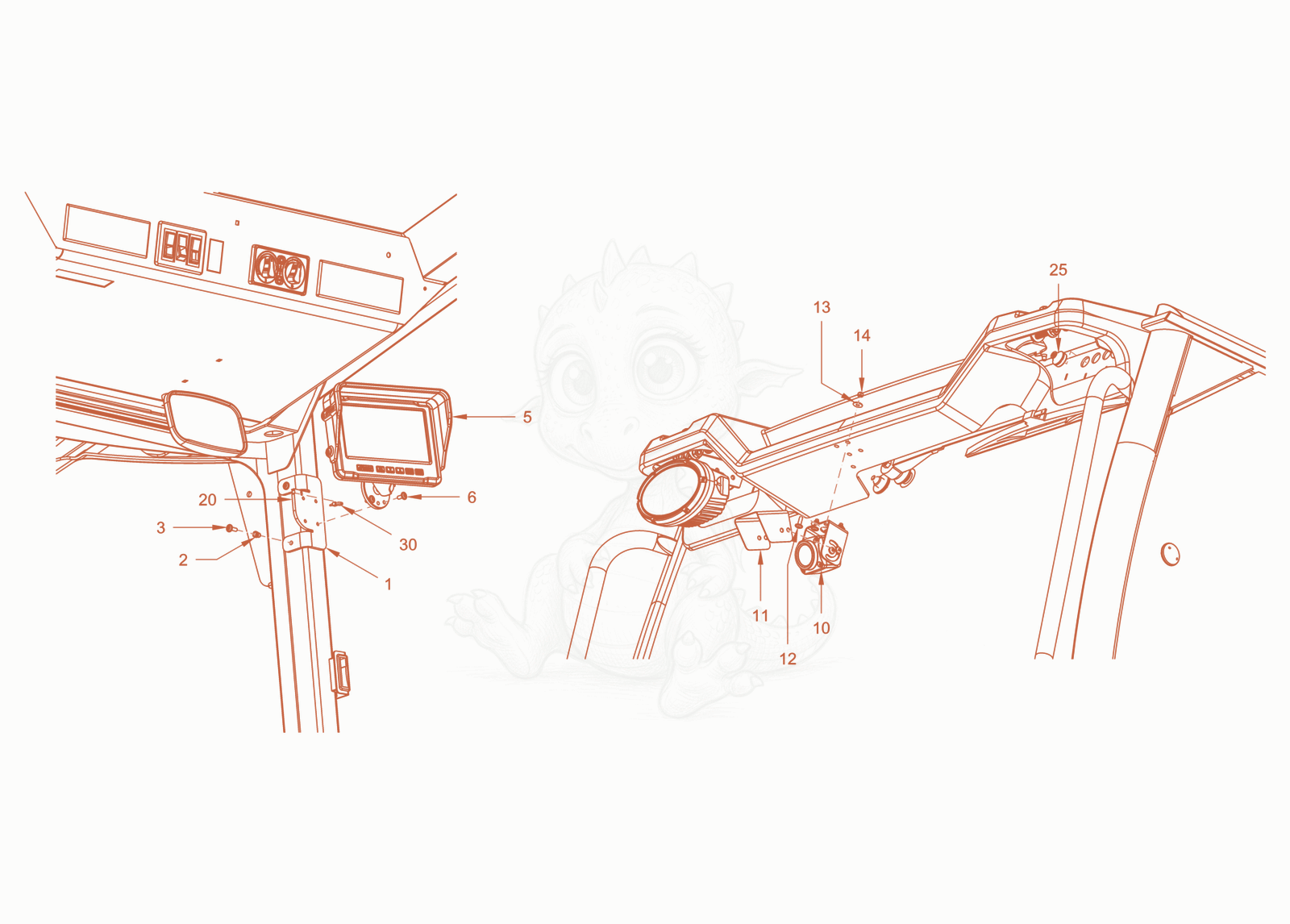

Exploded parts diagram of the camera of a Wacker Neuson RC70DPFROPS, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15100080315Not stocked
    holder×1
  • 25100040616Not stocked
    blind rivet nut×2
  • 35100011581
    $1.66
    Fillister head screw - 5100011581×2
  • 55100080317Not stocked
    monitor unit×1
  • 65100025881
    $1.57
    fillister head screw - 5100025881×4
  • 105100080320Not stocked
    camera×1
  • 115100080324Not stocked
    protecting sheet×1
  • 125100011581
    $1.66
    Fillister head screw - 5100011581×4
  • 135100013453
    $1.49
    Washer - 5100013453×4
  • 145100011599
    $3.01
    Hexagon nut - 5100011599×4
  • 205100080326Not stocked
    cable×1
  • 255100035701
    $20.15
    cable support sleeve - 5100035701×1
  • 305100013573
    $1.49
    Wire fastener - 5100013573×10
