RC70

RC70DPFROPS compactometer Diagram

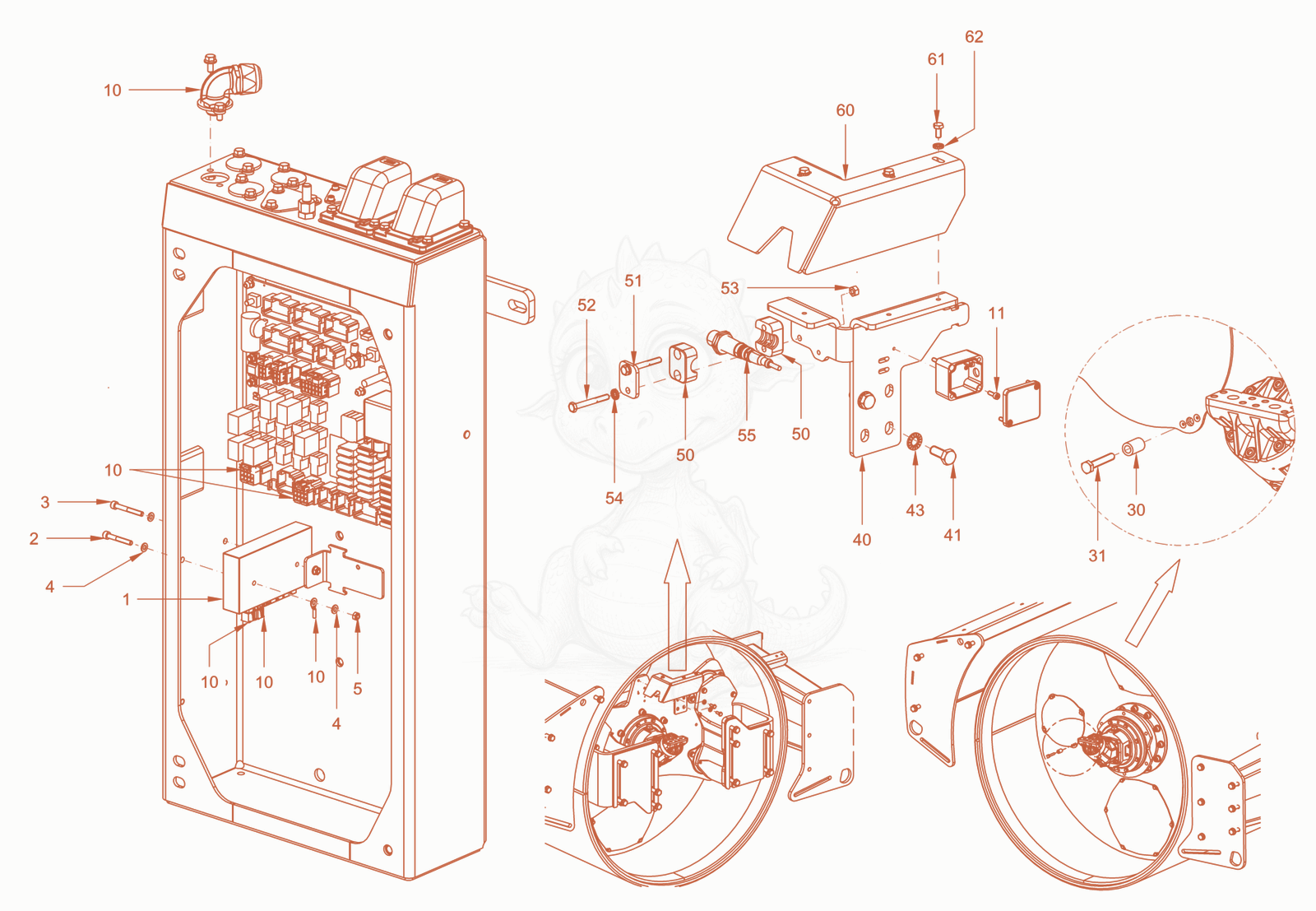

Exploded parts diagram of the compactometer of a Wacker Neuson RC70DPFROPS, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15100080330Not stocked
    calculator×1
  • 25100011756
    $1.49
    Cheese-head screw - 5100011756×1
  • 35100033254
    $1.49
    cheese-head screw - 5100033254×1
  • 45100012936
    $2.27
    Washer - 5100012936×2
  • 55100011599
    $3.01
    Hexagon nut - 5100011599×1
  • 105100080332Not stocked
    cable harness×1
  • 115100033260Not stocked
    cheese-head screw×2
  • 305100080334Not stocked
    sleeve×1
  • 315100034968
    $1.49
    hexagon screw - 5100034968×1
  • 405100080336Not stocked
    metal plate×1
  • 415100011479
    $1.57
    Hexagon screw - 5100011479×2
  • 435100012967
    $1.57
    Locking washer - 5100012967×2
  • 505100033264Not stocked
    half-clip×2
  • 515100080338Not stocked
    top cover×1
  • 525100034772
    $0.83
    hexagon screw - 5100034772×2
  • 535100012545
    $1.57
    Hexagon nut - 5100012545×2
  • 545100012965
    $3.01
    Locking washer - 5100012965×2
  • 555100080340Not stocked
    proximity switch×1
  • 605100080346Not stocked
    metal plate×1
  • 615100012572
    $20.09
    Hexagon screw - 5100012572×3
  • 625100012965
    $3.01
    Locking washer - 5100012965×3
