RC70

RC70DPFROPS vibration drive Diagram

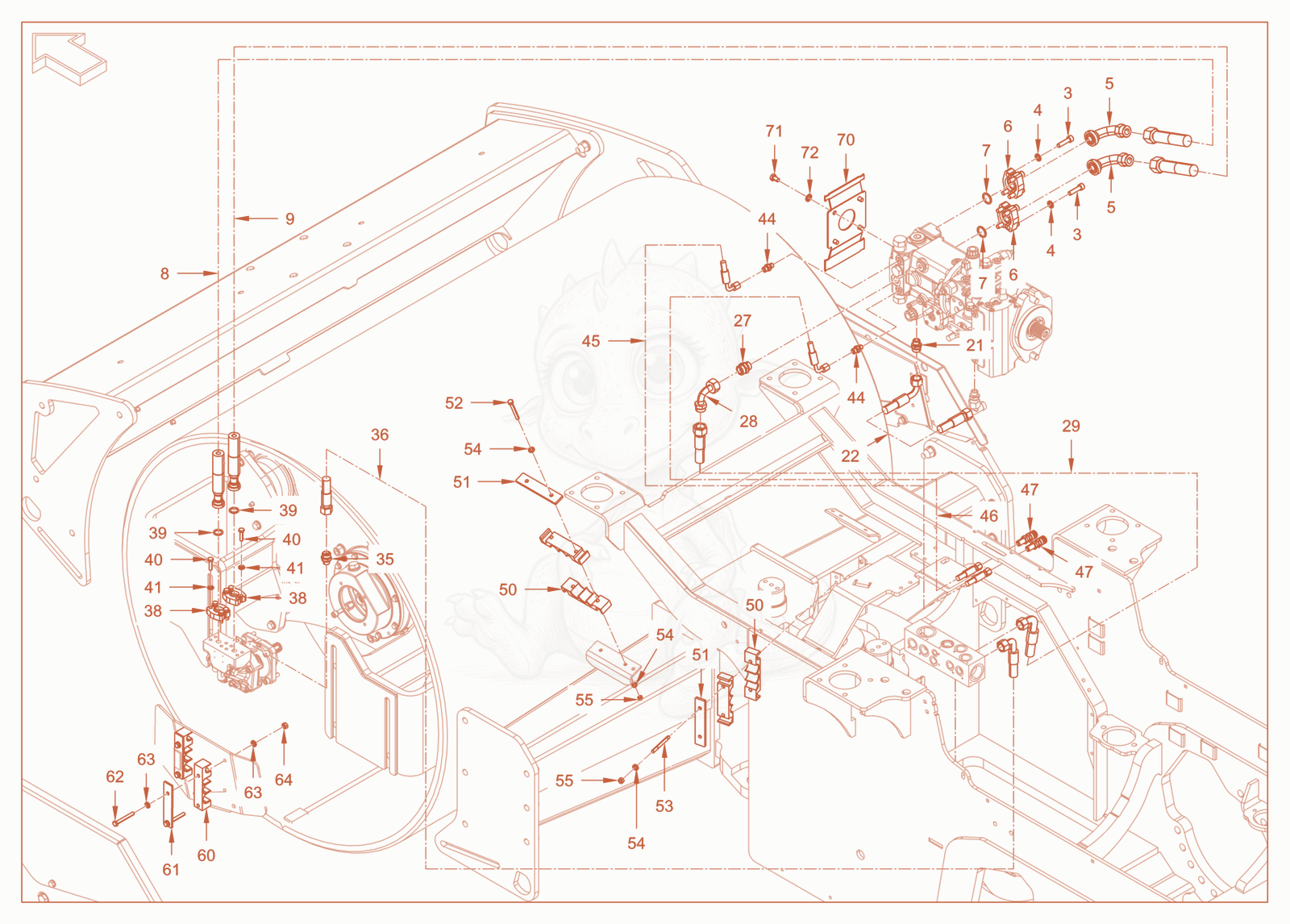

Exploded parts diagram of the vibration drive of a Wacker Neuson RC70DPFROPS, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 35100012783
    $1.66
    Cheese-head screw - 5100012783×8
  • 45100012967
    $1.57
    Locking washer - 5100012967×8
  • 55100023037
    $135.14
    pipe elbow - 5100023037×2
  • 65100013430
    $23.53
    Sae-flange half - 5100013430×4
  • 75100013431
    $1.57
    O-ring seal - 5100013431×2
  • 85100080303Not stocked
    hose×1
  • 95100080307Not stocked
    hose×1
  • 215100013473
    $11.22
    Straight screwed socket - 5100013473×1
  • 225100080309Not stocked
    hose×1
  • 275100013471
    $14.36
    Straight screwed socket - 5100013471×1
  • 285100074519Not stocked
    intermediate piece×1
  • 295100023479
    $167.51
    hose - 5100023479×1
  • 355100022933
    $18.14
    straight screwed socket - 5100022933×1
  • 365100080310Not stocked
    hose×1
  • 385100022885
    $18.98
    sae-flange half - 5100022885×4
  • 395100022884
    $1.57
    o-ring seal - 5100022884×2
  • 405100013510
    $1.57
    Hexagon screw - 5100013510×8
  • 415100012966
    $1.57
    Locking washer - 5100012966×8
  • 445100022866Not stocked
    Straight screwed socket×2
  • 455100080311Not stocked
    hose×1
  • 465100080312Not stocked
    hose×1
  • 475100023452Not stocked
    Measuring connection×2
  • 505100023058
    $18.63
    half-clip - 5100023058×4
  • 515100023095Not stocked
    top cover×2
  • 525100040612Not stocked
    hexagon screw×2
  • 535100012977
    $4.15
    Stud bolt - 5100012977×2
  • 545100012966
    $1.57
    Locking washer - 5100012966×6
  • 555100012546
    $1.57
    Hexagon nut - 5100012546×4
  • 605100085871Not stocked
    collier de serrage×2
  • 615100023418Not stocked
    Top cover×2
  • 625100040595Not stocked
    hexagon screw×4
  • 635100012966
    $1.57
    Locking washer - 5100012966×8
  • 645100012546
    $1.57
    Hexagon nut - 5100012546×4
  • 705100080313Not stocked
    holder×1
  • 715100035014
    $1.57
    hexagon screw - 5100035014×4
  • 725100012967
    $1.57
    Locking washer - 5100012967×4
