RD16-90 Tandem Roller

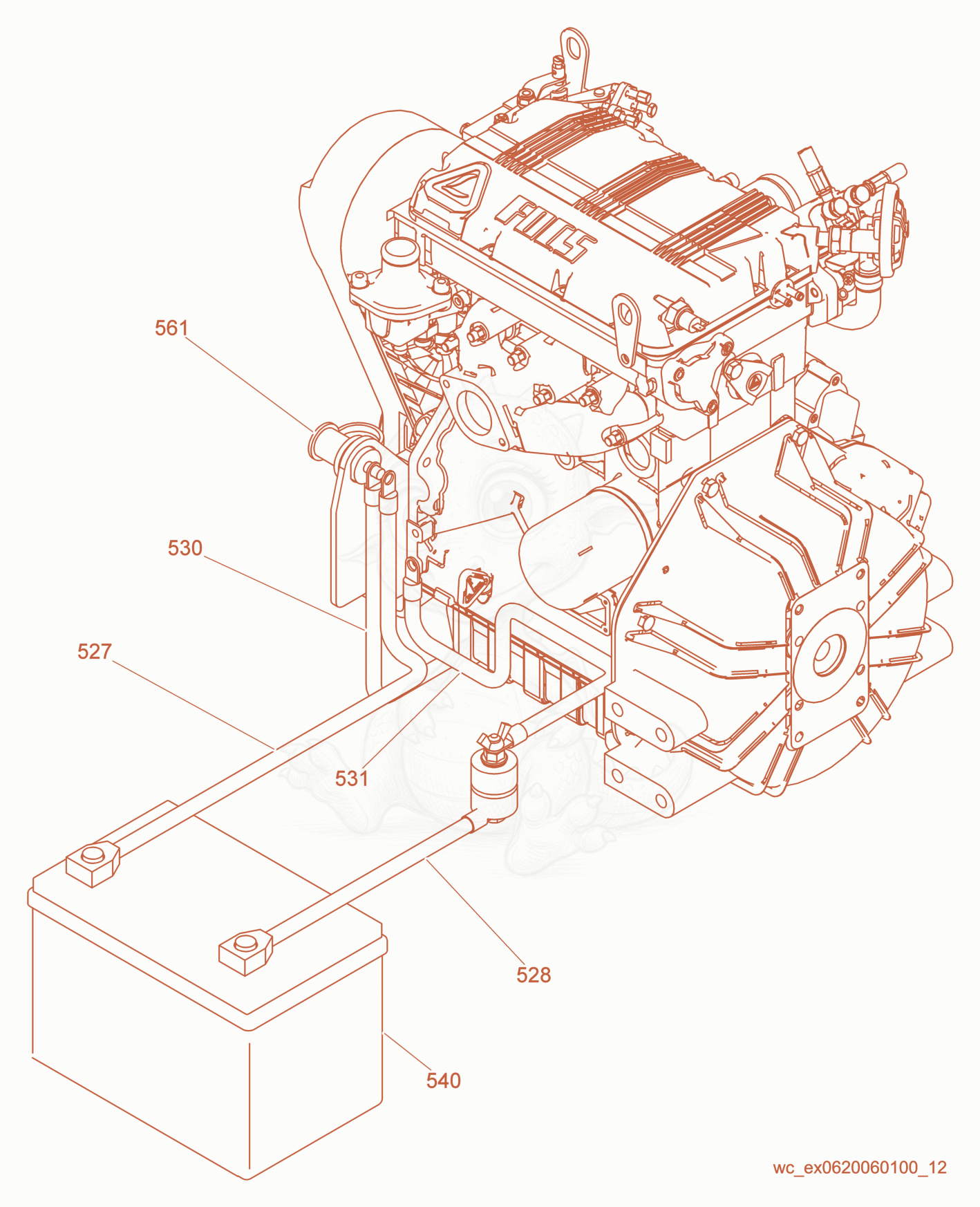

RD16-90 Battery Installation Diagram

Exploded parts diagram of the Battery Installation of a Wacker Neuson RD16-90, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 5275000163613
    $39.63
    CABLE-BATTERY,POSITIVE - 5000163613×1
  • 5285000163614
    $20.32
    CABLE-BATTERY,NEGATIVE - 5000163614×1
  • 5305000164805
    $41.61
    CABLE-POSITIVE - 5000164805×1
  • 5315000164806
    $10.27
    CABLE-NEGATIVE - 5000164806×1
  • 5405000153758
    $202.25
    BATTERY-WET,GR 34 - 5000153758×1
  • 5615000164775
    $61.08
    TERMINAL-REMOTE JUMPER - 5000164775×1
