RD16-90 Tandem Roller

RD16-90 Fuel Tank cpl. Diagram

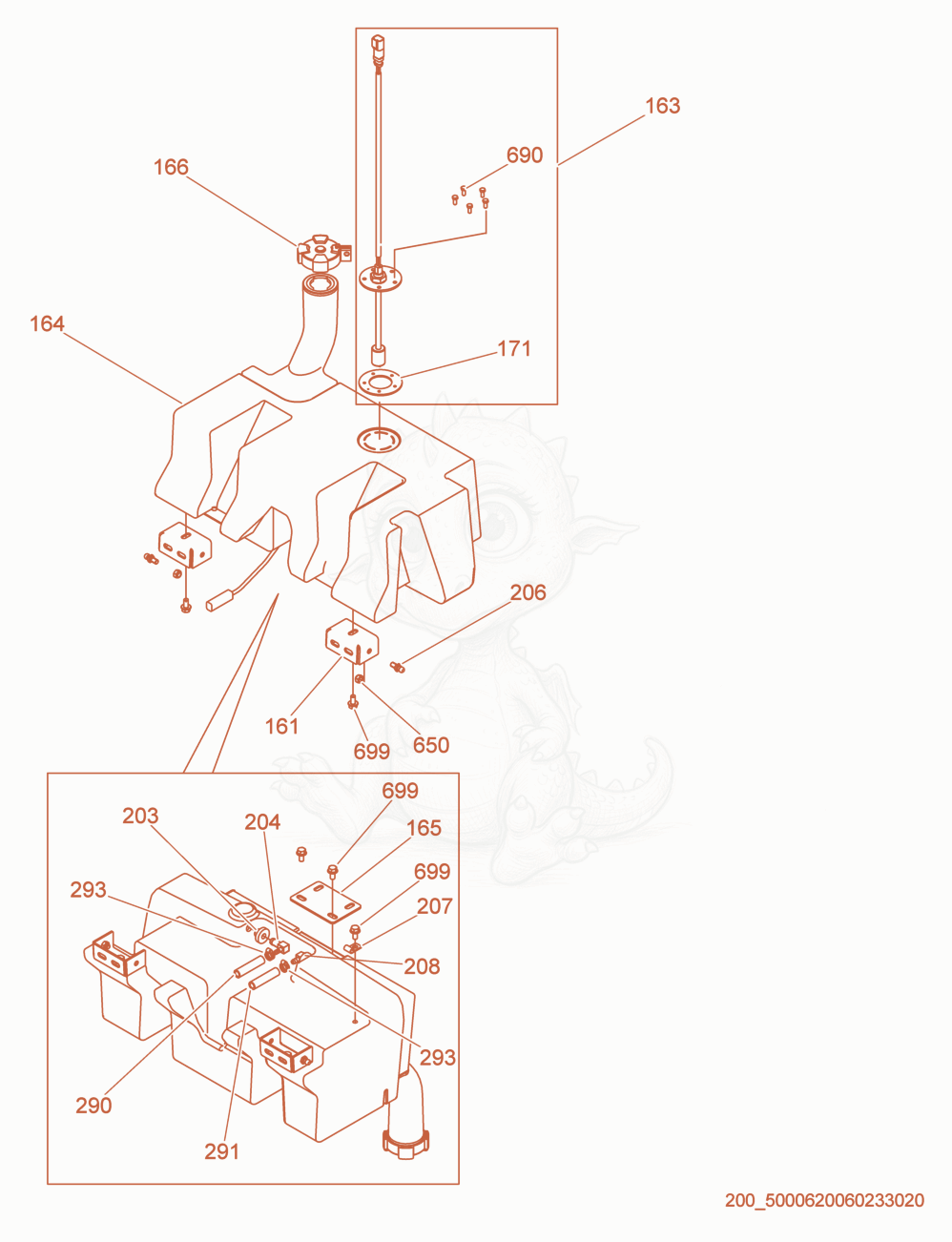

Exploded parts diagram of the Fuel Tank cpl. of a Wacker Neuson RD16-90, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 1615000163269
    $104.01
    MOUNT-GAS SPRING P-5000112007 - 5000163269×2
  • 1635000171675
    $340.89
    SENSOR-FUEL,ASSEMBLY - 5000171675×1
  • 1645000163270
    $739.85
    TANK-FUEL - 5000163270×1
  • 1655000163271
    $10.11
    SUPPORT-REAR,TANK P-5000112007 - 5000163271×1
  • 1665000162932
    $113.12
    CAP-FUEL,LOCKABLE - 5000162932×1
  • 1715000171672
    $10.51
    GASKET-FUEL LEVEL COVER - 5000171672×1
  • 2035000110586
    $3.70
    BUSHING-FUEL VALVE - 5000110586×1
  • 2045000111321
    $3.78
    FITTING-W/O FILTER - 5000111321×1
  • 2065000155125
    $1.16
    STUD-BALL 10 x M8 - 5000155125×2
  • 2075000163957
    $0.96
    CLAMP-TUBE .312 ID COV-0611 - 5000163957×1
  • 2085000170351
    $7.61
    FITTING-1/4 90 DEG W/SCREEN - 5000170351×1
  • 2905000171637
    $34.25
    HOSE-FUEL,2120MM - 5000171637×1
  • 2915000171636
    $10.59
    HOSE-FUEL,1830MM - 5000171636×1
  • 2935000028707
    $0.67
    CLAMP-THREADED,.21-.63 - 5000028707×4
  • 6505000010367
    $0.10
    NUT-LOCK M8 HEX - 5000010367×2
  • 6905000155845
    $0.50
    SCREW M5X12 HX HD,BLK MED LOC - 5000155845×5
  • 6995000163948
    $0.35
    SCREW M8X16 HX FLG BL ZN 8.8,W/202 - 5000163948×5
