RD16-90 Tandem Roller

RD16-90 Water Tank/Seat Diagram

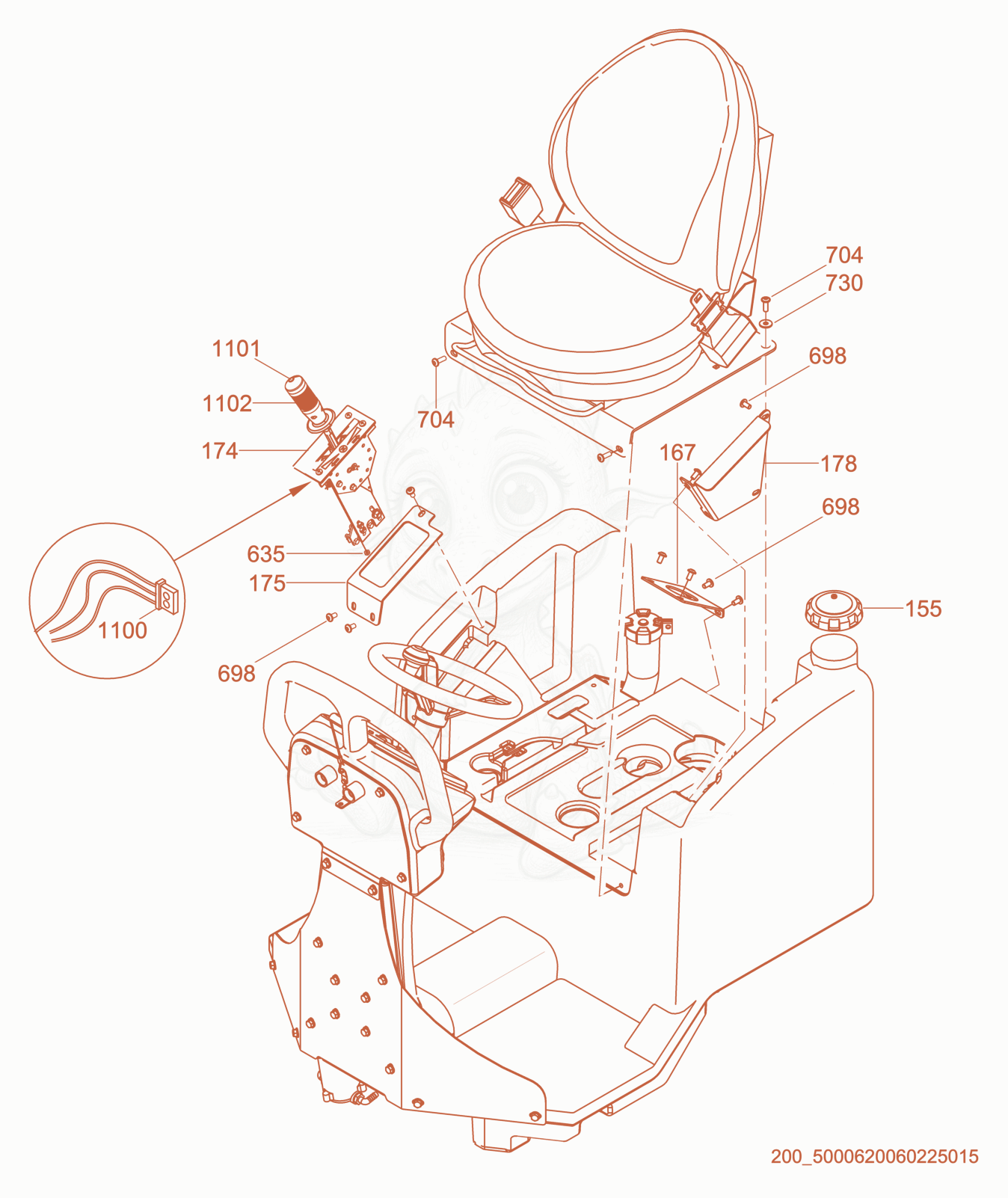

Exploded parts diagram of the Water Tank/Seat of a Wacker Neuson RD16-90, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 1555000164776
    $45.58
    CAP-WATER TANK - 5000164776×1
  • 1675000163272
    $148.89
    GUARD-FUEL SPILL P-5000112007 - 5000163272×1
  • 1745200010672Not stocked
    Control lever×1
  • 1745200012020Not stocked
    Switch×1
  • 1755000163275
    $313.86
    BRACKET-MOUNT,CONTROL LEVER P-5000112007 - 5000163275×1
  • 1785000163277
    $81.14
    COVER-BRAKE P-5000112007 - 5000163277×1
  • 6355000030340
    $0.03
    NUT #10-32,HEX.- HMSN Z - 5000030340×1
  • 6985000163945
    $0.26
    SCREW M8X16 BTN HD BL ZN 10.9 - 5000163945×11
  • 7045000163946
    $0.33
    SCREW M8X25 BTN HD BL ZN 10.9 - 5000163946×4
  • 7305000163953
    $0.98
    WASHER-M8 FLAT,ZINC BLK PL - 5000163953×2
  • 11005200012020Not stocked
    Switch×1
  • 11015000114261
    $12.43
    CAP-RUBBER - 5000114261×1
  • 11025200023172Not stocked
    Grip Housing Kit×1
