RD27-120 ROLLER,EU

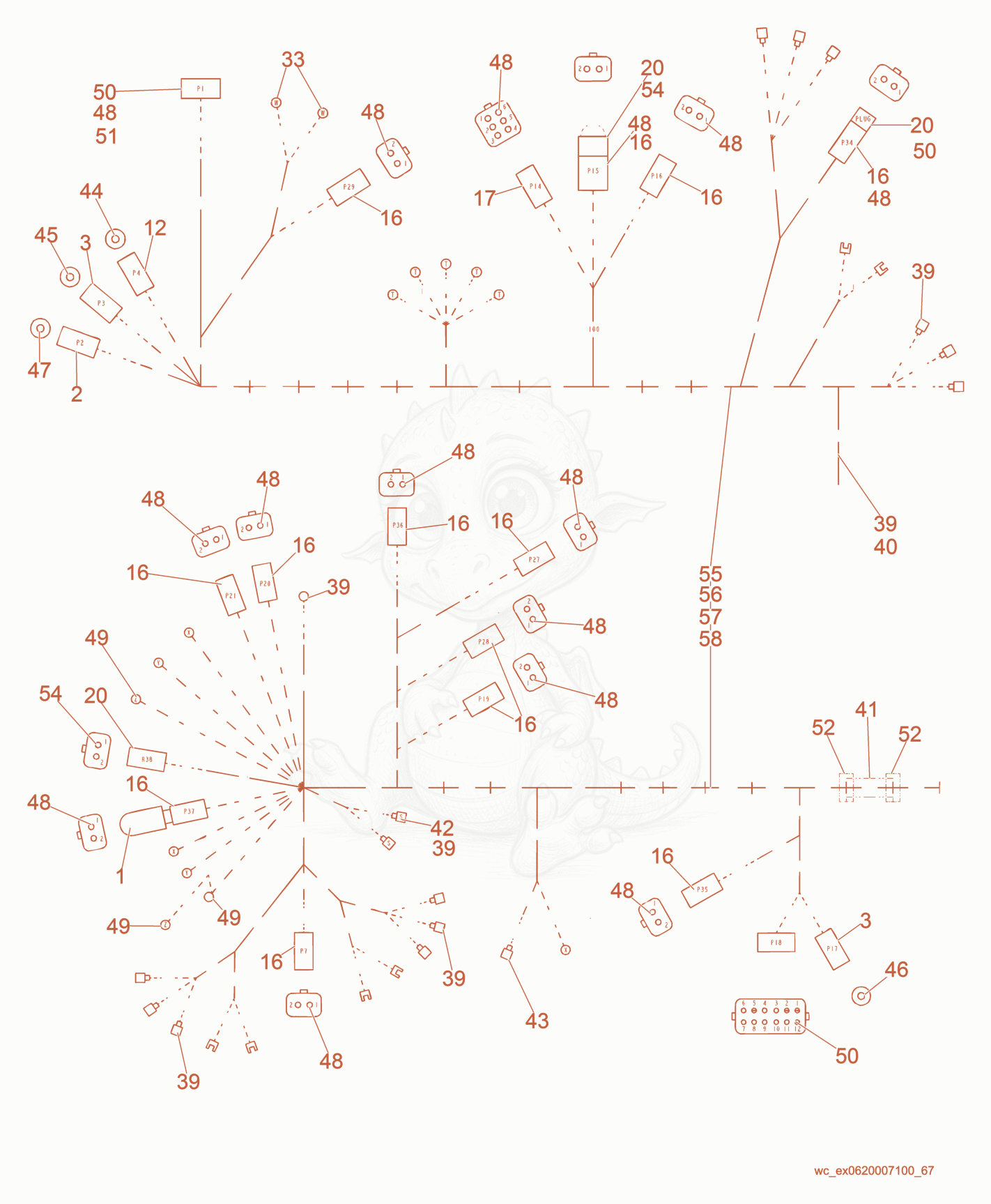

RD27-120 Wiring Harness / Main Diagram
- SURGE ABSORBER - 5000162390×1
- PLUG-CONNECTOR - 5000162384×1
- PLUG-CONNECTOR - 5000162385×2
- PLUG-CONNECTOR - 5000162386×1
- plug-cavity - 5000162249×13
- plug-cavity - 5000162387×1
- CONNECTOR-RECEPTACLE - 5000162312×3
- TUBE-HEAT SHRINK - 5000161916×1
- TUBE-SHRINK 1DM - 5000161921×1
- TUBE-HEAT SHRINK - 5000162374×1
- hose - 5000162375×1
- TERMINAL-FLANGE - 5000162376×2
- terminal - 5000162377×1
- HOUSING-CONNECTOR - 5000162378×1
- HOUSING-CONNECTOR - 5000162379×1
- HOUSING-CONNECTOR - 5000162380×1
- HOUSING-CONNECTOR - 5000162381×1
- HOUSING-CONNECTOR - 5000162310×72
- COVER-PROTECTIVE - 5000162036×4
- PLUG-SEAL - 5000162311×14
- CONNECTOR-PLUG - 5000162382×1
- TUBE - 5000162383×1
- PIN-CONNECTOR - 5000162309×4
- WIRING HARNESS-MAIN - 5000161798×1
- WIRE - 5000162389×1
- WIRE - 5000162307×1
- WIRE - 5000162335×1
