RD27-120 ROLLER,EU

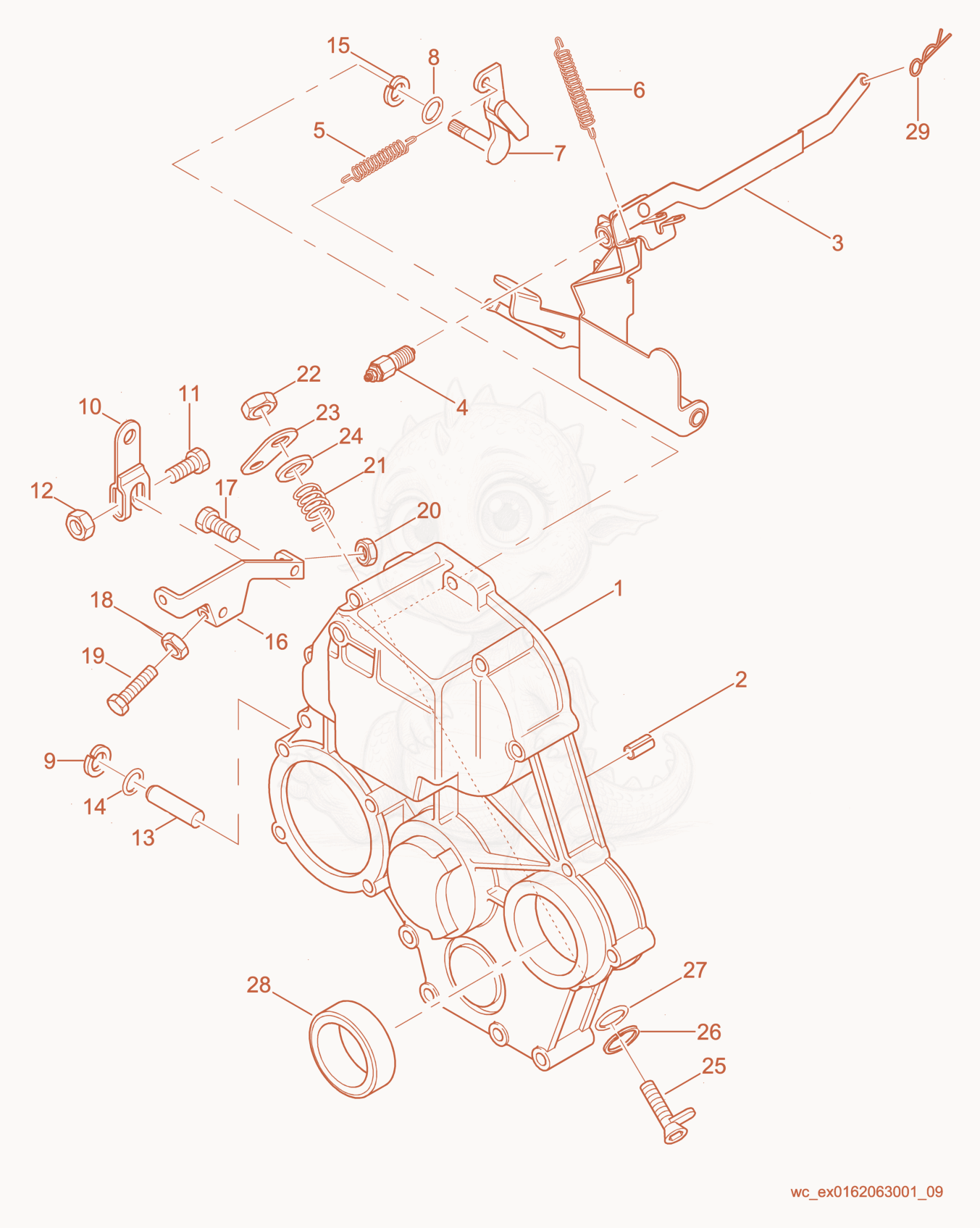

RD27-120 Governor Control Diagram
- COVER-TIMING - 5000161436×1
- Pin - 5000161122×1
- KIT-LEVER - 5000161378×1
- SENSOR - 5000161388×1
- Spring - 5000161476×1
- Spring - 5000161353×1
- Arm - 5000161380×1
- O-Ring - 5000161142×1
- RING-LOCKING - 5000161135×1
- KIT-LEVER - 5000161384×1
- Screw - 5000160787×1
- Nut - 5000161109×1
- Shaft - 5000161379×1
- O-Ring - 5000161140×2
- CLIP-RETAINING - 5000161133×1
- BRACKET - 5000161385×1
- Screw - 5000160785×2
- Nut - 5000161507×1
- Screw - 5000161506×2
- Nut - 5000161510×1
- Spring - 5000161473×1
- Nut - 5000161107×2
- Lever - 5000161382×1
- Washer - 5000161117×1
- Arm - 5000161381×1
- CLIP-RETAINING - 5000161134×1
- O-Ring - 5000161141×1
- SEAL - 5000161491×1
- PIN-ROLL - 5000161130×1
