RD27-120 ROLLER,EU

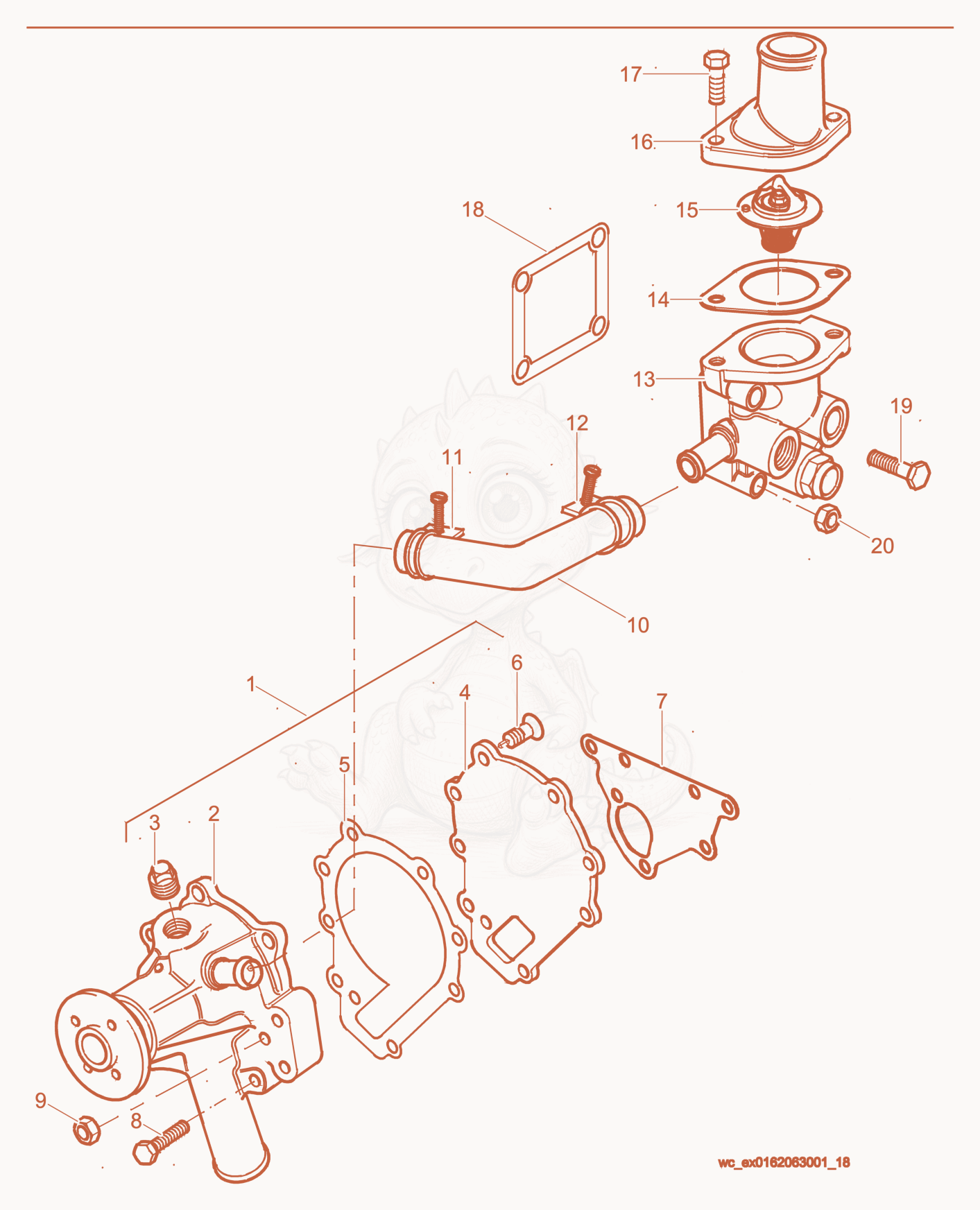

RD27-120 Water Pump Diagram

Exploded parts diagram of the Water Pump of a Wacker Neuson RD27-120, with numbered balloons — Hover a box for the part, its price and its row below. Click it to select.

15000161421
$241.73
PUMP-WATER - 5000161421×1
35000161160
$14.00
Plug - 5000161160×1
45000161422
$99.46
Plate - 5000161422×1
55000161431
$36.08
Gasket - 5000161431×1
65000161099
$0.87
Screw - 5000161099×3
75000161430
$26.53
Gasket - 5000161430×1
85000160799
$2.35
Screw - 5000160799×4
95000161109
$0.87
Nut - 5000161109×1
105000161428
$16.92
Hose - 5000161428×1
115000161162
$13.45
CLIP - 5000161162×1
125000161162
$13.45
CLIP - 5000161162×1
135000161424
$64.67
HOUSING-THERMOSTAT - 5000161424×1
145000161429
$5.38
GASKET - 5000161429×1
155000161423
$63.05
VALVE-THERMOSTAT - 5000161423×1
165000161425
$9.03
Connector housing - 5000161425×1
175000161091
$4.58
Screw - 5000161091×2
185000161432
$8.92
Gasket - 5000161432×1
195000160800
$2.92
Screw - 5000160800×2
205000161109
$0.87
Nut - 5000161109×2
