RD28e-120c

RD28-120CE mounting Diagram

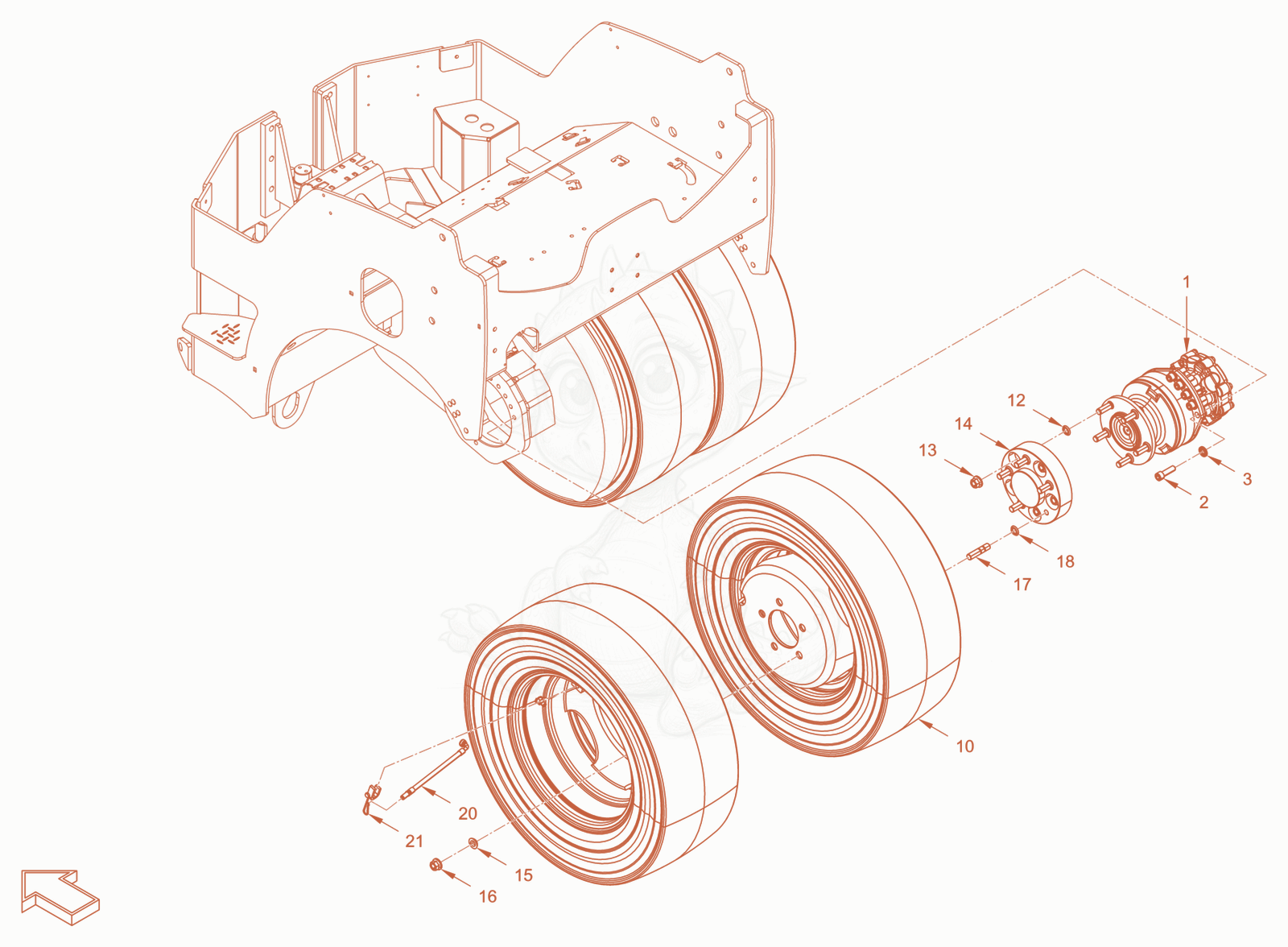

Exploded parts diagram of the mounting of a Wacker Neuson RD28-120CE, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15100076184Not stocked
    gear hub motor×2
  • 25100012784
    $2.88
    Cheese-head screw - 5100012784×20
  • 35100012968
    $1.57
    Locking washer - 5100012968×20
  • 105100066874Not stocked
    tyre×4
  • 125100029586Not stocked
    centering ring×10
  • 135100012376
    $16.02
    Flat collar nut - 5100012376×10
  • 145100012370
    $1,092.23
    Flange - 5100012370×2
  • 155100012377
    $8.47
    Spring ring - 5100012377×10
  • 165100012376
    $16.02
    Flat collar nut - 5100012376×10
  • 175100012379
    $39.85
    Stud bolt - 5100012379×10
  • 185100029586Not stocked
    centering ring×10
  • 205100012401
    $166.82
    Valve extension - 5100012401×2
  • 215100011968
    $85.48
    Bracket - 5100011968×2
