RD28e-120c

RD28-120CE sprinkling Diagram

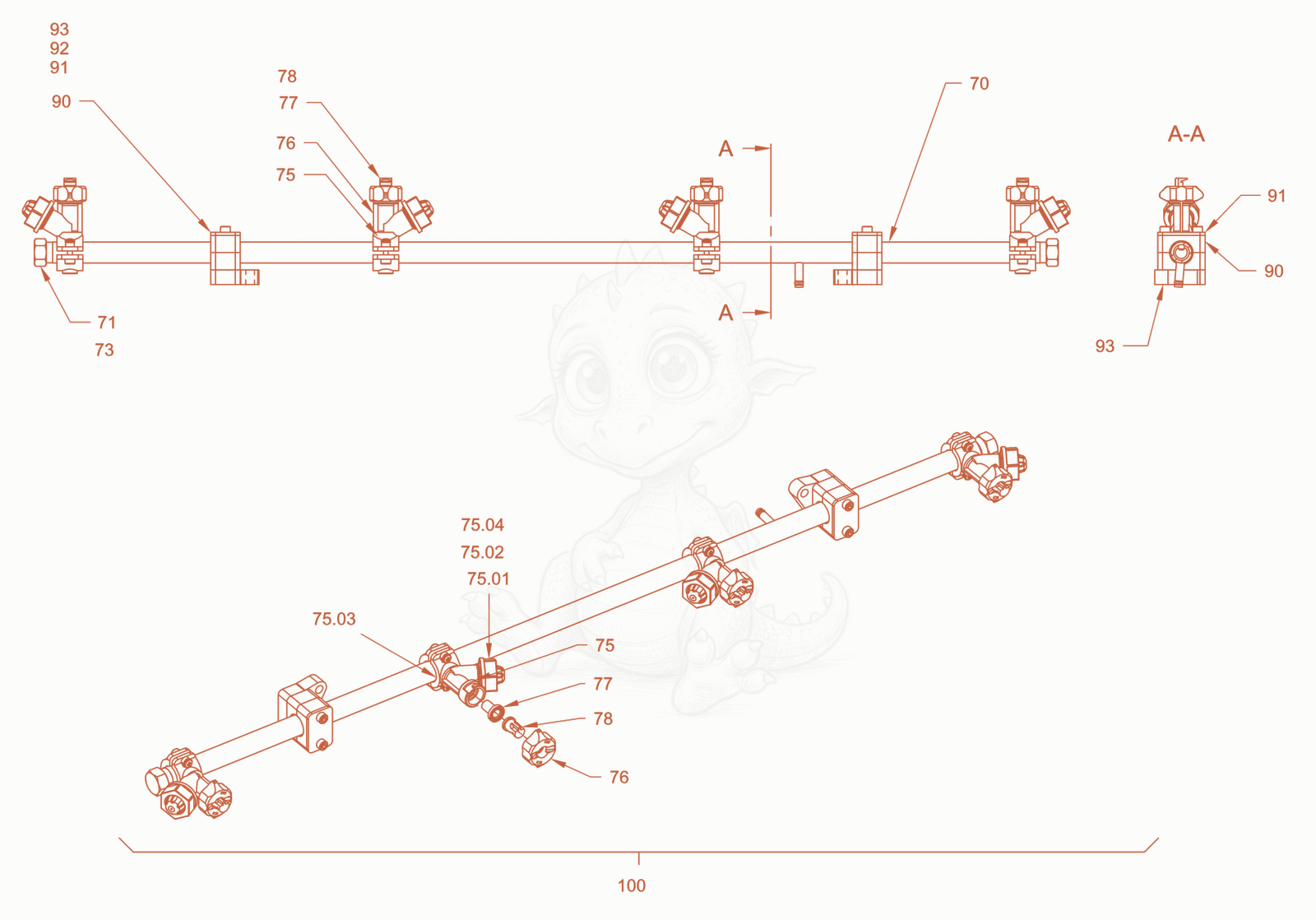

Exploded parts diagram of the sprinkling of a Wacker Neuson RD28-120CE, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 705100053009Not stocked
    sprinkler pipe×1
  • 715100011513
    $1.27
    Sealing ring - 5100011513×2
  • 735100011514
    $11.87
    Cap - 5100011514×2
  • 755100011530
    $26.46
    Nozzle holder - 5100011530Unknown×4
  • 755100011535
    $7.59
    Cap nut - 5100011535Unknown×1
  • 755100011651
    $12.75
    Membrane holder - 5100011651Unknown×1
  • 755100011978
    $4.97
    Membrane - 5100011978Unknown×4
  • 755100073204Not stocked
    sealing ring×1
  • 765100066888
    $3.71
    nut - 5100066888×4
  • 775100011489
    $4.80
    Filtering screen - 5100011489×4
  • 785100011529
    $5.78
    Sprinkler nozzle - 5100011529×4
  • 905100013469
    $1.57
    Half-clip - 5100013469×4
  • 915100013465
    $1.93
    Cover plate - 5100013465×2
  • 925100013497
    $3.23
    Cheese-head screw - 5100013497×4
  • 935100013168
    $97.02
    Bracket - 5100013168×2
  • 1005100053010Not stocked
    sprinkler pipe×1
