RD28e-120c

RD28-120CE electrical system Diagram

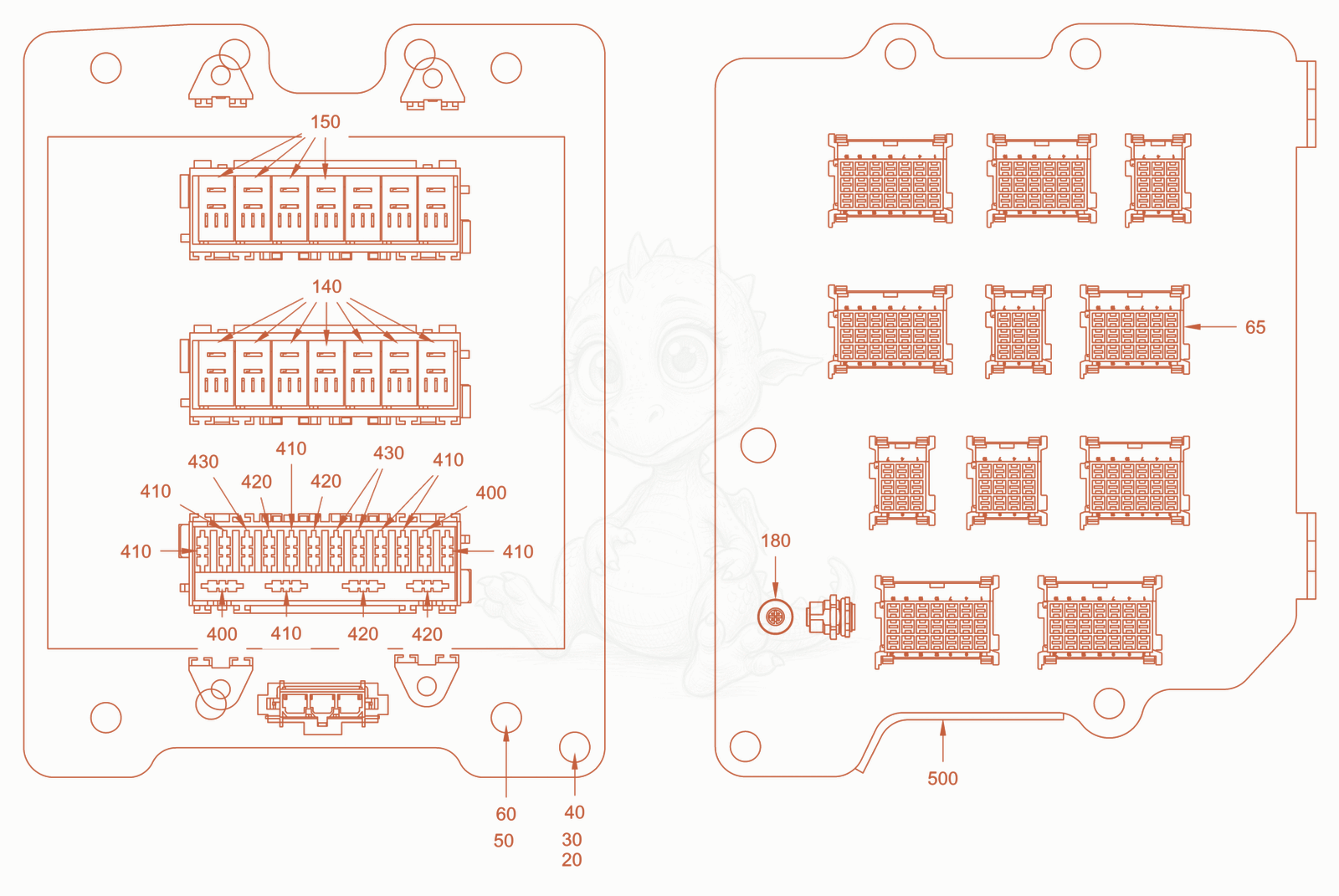

Exploded parts diagram of the electrical system of a Wacker Neuson RD28-120CE, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 205100073185Not stocked
    bolt×4
  • 305100023132
    $1.57
    hexagonal nut - 5100023132×4
  • 405100023164
    $3.88
    safety screw - 5100023164×4
  • 505100034988
    $1.49
    safety screw - 5100034988×4
  • 605100023132
    $1.57
    hexagonal nut - 5100023132×4
  • 655100073188Not stocked
    wire harness jumper plug×1
  • 1405100073112Not stocked
    relay×7
  • 1505100073112Not stocked
    relay×4
  • 1805100073189Not stocked
    socket connector×1
  • 4005100035248
    $2.20
    blade-type fuse - 5100035248×2
  • 4105100035246
    $1.93
    blade-type fuse - 5100035246×7
  • 4205100013579
    $1.83
    Blade fuse - 5100013579×4
  • 4305100013580
    $1.83
    Blade fuse - 5100013580×3
  • 5005100073518Not stocked
    edge protection×0.06
