RD28e-120c

RD28-120CE scraper Diagram

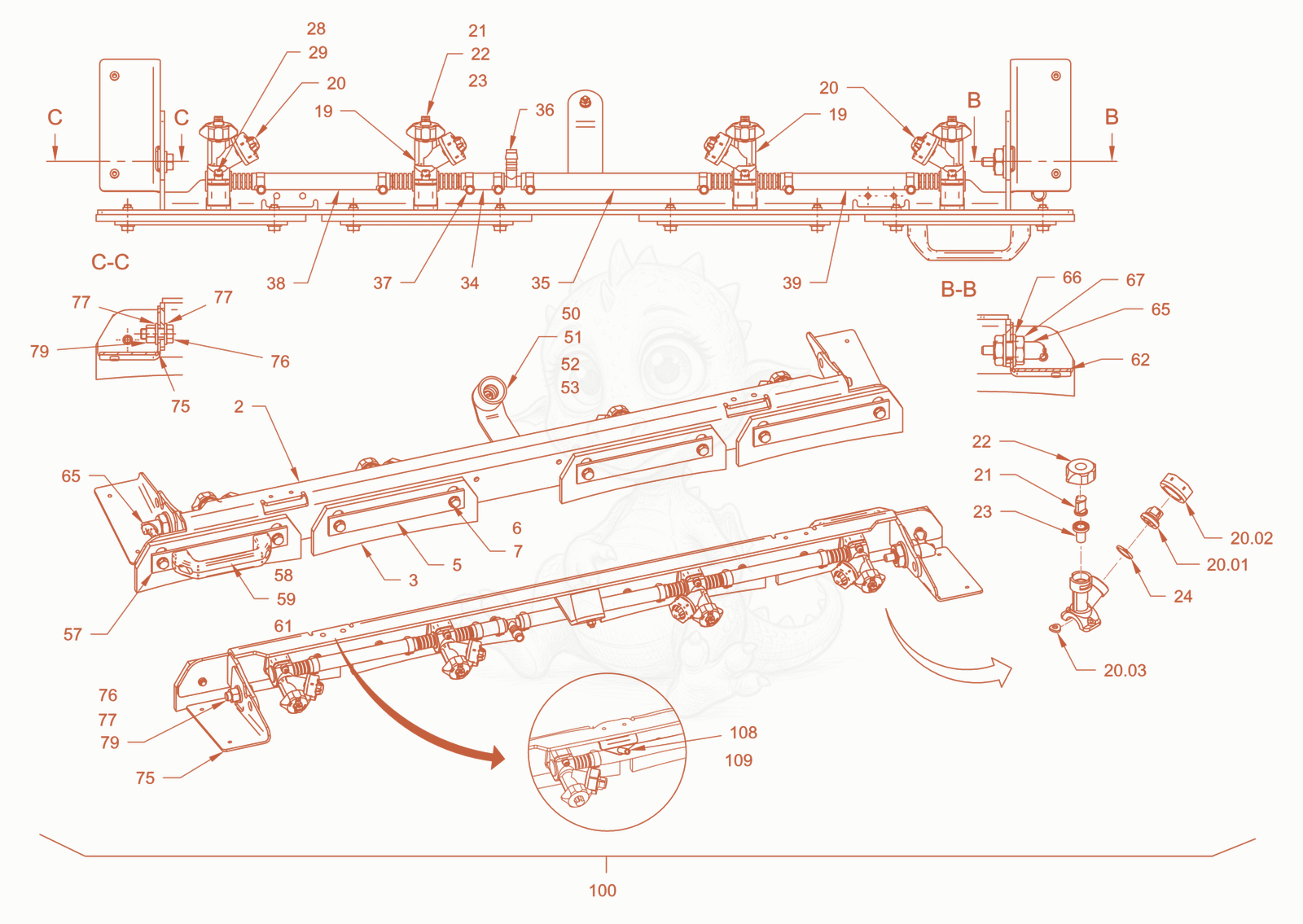

Exploded parts diagram of the scraper of a Wacker Neuson RD28-120CE, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 25100013176
    $784.62
    Bracket - 5100013176×1
  • 35100012434
    $44.88
    Scraper - 5100012434×4
  • 55100013633
    $33.34
    Flat steel - 5100013633×4
  • 65100012613
    $1.57
    Hexagon screw - 5100012613×8
  • 75100012966
    $1.57
    Locking washer - 5100012966×8
  • 195100011898
    $36.17
    Nozzle holder - 5100011898×2
  • 205100011535
    $7.59
    Cap nut - 5100011535Unknown×1
  • 205100011651
    $12.75
    Membrane holder - 5100011651Unknown×1
  • 205100011867
    $36.80
    Nozzle holder - 5100011867Unknown×2
  • 205100073204Not stocked
    sealing ring×1
  • 215100059528
    $14.12
    sprinkler nozzle - 5100059528×4
  • 225100066888
    $3.71
    nut - 5100066888×4
  • 235100011489
    $4.80
    Filtering screen - 5100011489×4
  • 245100011978
    $4.97
    Membrane - 5100011978×4
  • 285100012090
    $1.57
    Cheese-head screw - 5100012090×8
  • 295100013536
    $2.44
    Serrated lock washer - 5100013536×8
  • 345100013223
    $119.26
    Flexible tubing - 5100013223×0.05
  • 355100013223
    $119.26
    Flexible tubing - 5100013223×0.22
  • 365100012097
    $11.26
    T-hose connector - 5100012097×1
  • 375100013367
    $2.04
    Hose clip - 5100013367×8
  • 385100013223
    $119.26
    Flexible tubing - 5100013223×0.16
  • 395100013223
    $119.26
    Flexible tubing - 5100013223×0.16
  • 505100012438
    $14.53
    Silentbloc - 5100012438×1
  • 515100086737Not stocked
    fillister head screw×1
  • 525100012965
    $3.01
    Locking washer - 5100012965×1
  • 535100012545
    $1.57
    Hexagon nut - 5100012545×1
  • 575100013200
    $26.41
    Metal plate - 5100013200×1
  • 585100012932
    $44.61
    Handle - 5100012932×1
  • 595100012665
    $1.49
    Countersunk screw - 5100012665×2
  • 615100012545
    $1.57
    Hexagon nut - 5100012545×2
  • 625100066893Not stocked
    protecting sheet×1
  • 655100013204
    $65.25
    Jack latch - 5100013204×1
  • 665100034679
    $1.66
    Washer - 5100034679×2
  • 675100011747
    $15.75
    Hexagon nut - 5100011747×2
  • 755100066894Not stocked
    protecting sheet×1
  • 765100012626
    $1.57
    Hexagon screw - 5100012626×1
  • 775100012968
    $1.57
    Locking washer - 5100012968×2
  • 795100012548
    $5.41
    Hexagon nut - 5100012548×1
  • 1005100013175
    $3,246.90
    Scraper - 5100013175×1
  • 1085100012665
    $1.49
    Countersunk screw - 5100012665×2
  • 1095100033218Not stocked
    holder×1
