SM100

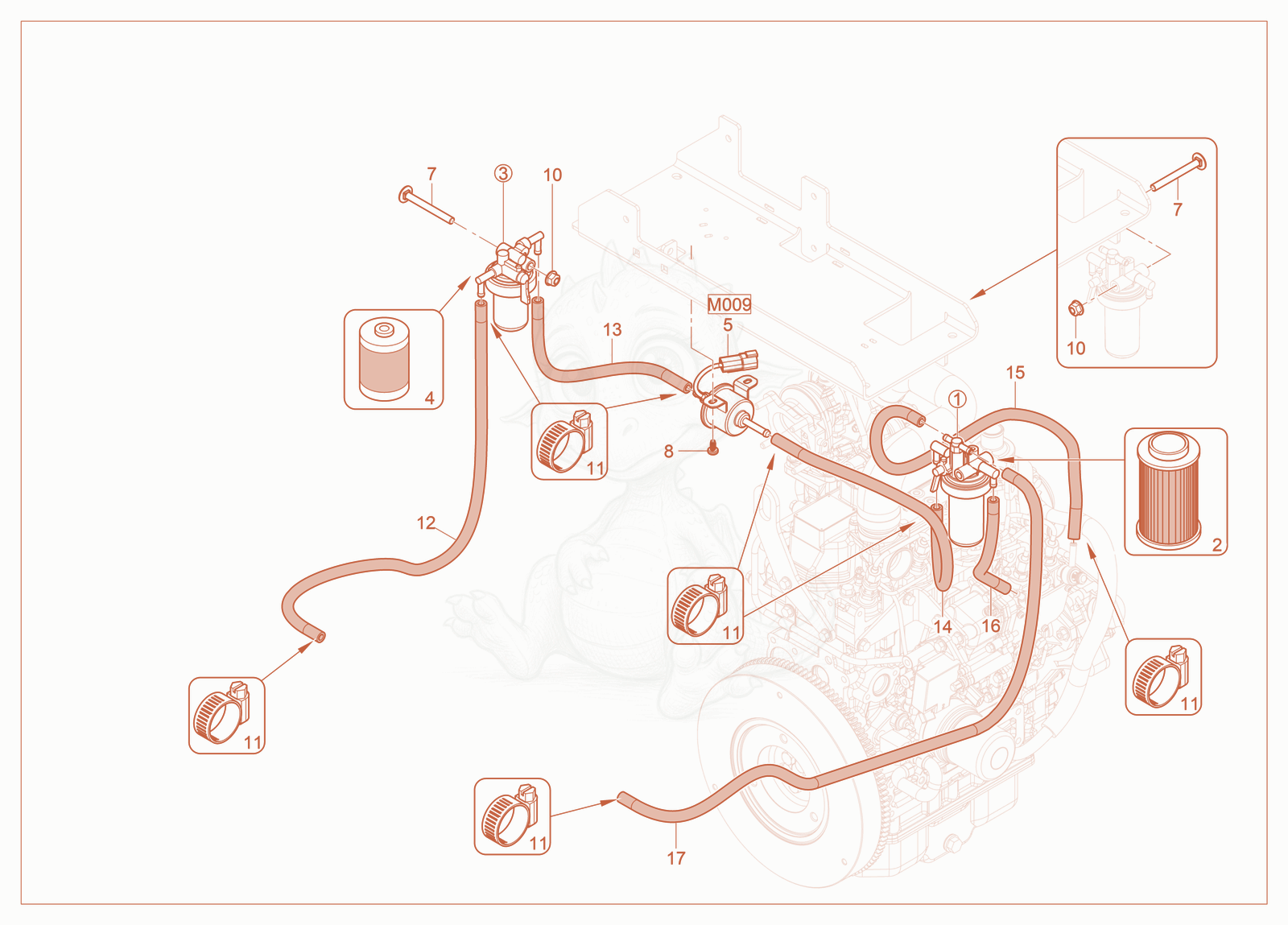

SM100 Fuel System Diagram

Exploded parts diagram of the Fuel System of a Wacker Neuson SM100, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000466933
    $126.95
    Fuel filter - 1000466933×1
  • 21000466939
    $25.73
    Fuel Filter Element - 1000466939×1
  • 31000466934
    $325.85
    WATER SEPERATOR - 1000466934×1
  • 41000466935
    $93.82
    Fuel / water separator element - 1000466935×1
  • 55200021618Not stocked
    Fuel pump×1
  • 71000446237
    $1.21
    BOLT-CARRIAGE.SHRT.NK-M8x80-8.8-ZNC - 1000446237×2
  • 81000366944
    $0.26
    SCREW M6 X 12 THREAD ROLLING ZINC - 1000366944×2
  • 105000010367
    $0.10
    NUT-LOCK M8 HEX - 5000010367×2
  • 115000028707
    $0.67
    CLAMP-THREADED,.21-.63 - 5000028707×12
  • 121000424469
    $6.07
    HOSE FUEL SUCTION - 1000424469×1
  • 131000424385
    $2.59
    HOSE FUEL SUCTION - 1000424385×1
  • 141000424310
    $4.11
    HOSE FUEL SUCTION - 1000424310×1
  • 151000424999
    $3.89
    HOSE FUEL RETURN - 1000424999×1
  • 161000425000
    $2.16
    HOSE FUEL SUPPLY - 1000425000×1
  • 171000425303
    $8.70
    HOSE FUEL RETURN - 1000425303×1
