SM100

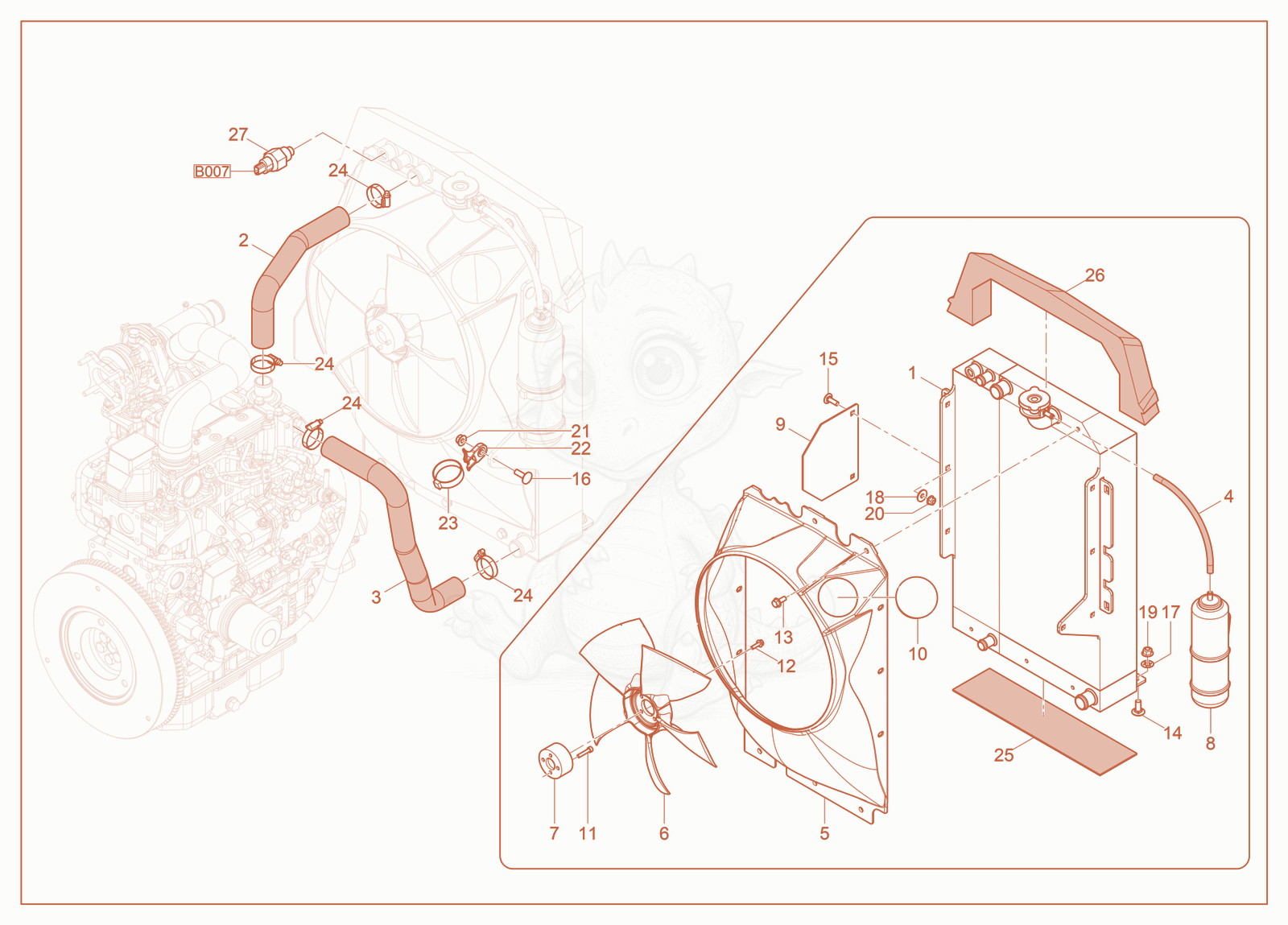

SM100 Cooler Diagram
- Coolerutl 1000431928×1
- CAP-RADIATOR,16 PSI,MG,MED - 5100041347×1
- HOSE COOLANT INLET - 1000426246×1
- HOSE COOLER OUTLET - 1000426248×1
- HOSE RECOVERY - 1000434942×1
- CLAMP-WORM DRIVE,1/2" TO 3/4" - 5100044806×2
- SEAL SHROUD SIDE - 1000434703Unknown×2
- SEAL SHROUD - 1000434704Unknown×2
- 51000536738Not stockedShroud×1
- Fan 1000424786×1
- FAN SPACER - 1000441651×1
- regulation container - 1000176084×1
- PLUG DOME - 1000509103×1
- SCREW M6X30,SOC.HD. - 5000207611×4
- 125200020974Not stockedHexagonal flange head screw×4
- BOLT M8 X 20 FLANGED 8.8 ZINC - 1000343396×5
- BOLT M10X25 CARRIAGE SHORT NECK 8.8 ZINC - 1000343297×6
- BOLT-CARRIAGE,SHRT NK-M8x25-8.8-ZNC - 1000403381×6
- BOLT-CARRIAGE,SHRT NK-M8x25-8.8-ZNC - 1000403381×1
- RETAINER BOLT M10 - 1000343294×6
- WASHER B8.4 FLAT - 5000010374×6
- NUT-LOCK M10 HEX. - 5000010365×6
- NUT M8 FLANGED LOCKNUT 8 ZINC - 1000343350×6
- NUT M8 FLANGED LOCKNUT 8 ZINC - 1000343350×1
- MOUNT SADDLE M8 - 1000382596×1
- TIE HEAVY DUTY - 1000342986×3
- CLAMP 20-45 WORM DRIVE - 5000089701×4
- FOAM PAD - 1000435018×1
- SEAL RADIATOR - 1000461675×1
- SENSOR HYD OIL TEMP - 1000339887×1
