SM100

SM100 ISO Coupler Diagram

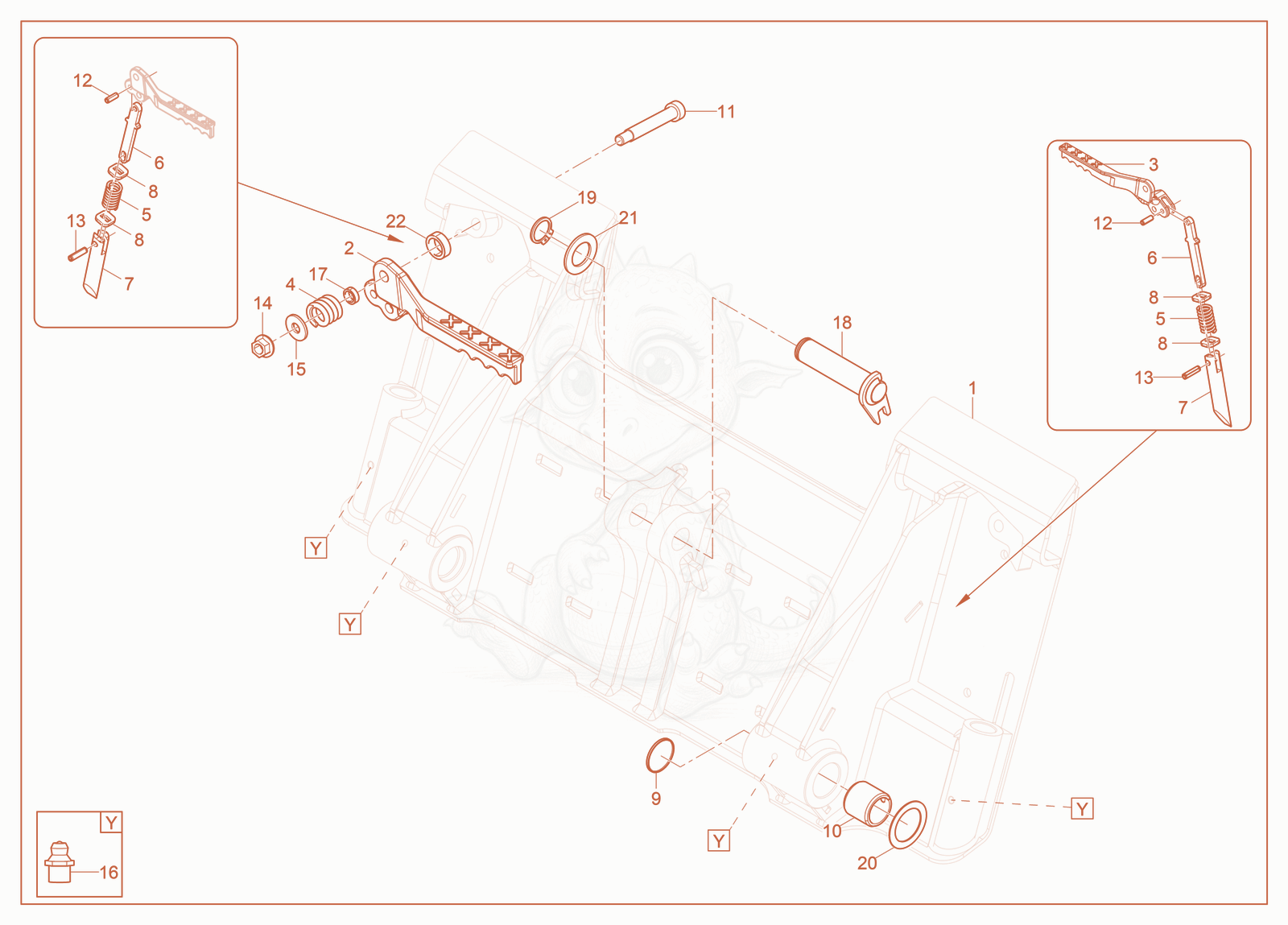

Exploded parts diagram of the ISO Coupler of a Wacker Neuson SM100, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000497372
    $3,111.42
    WELDMENT COUPLER UTL-ISO - 1000497372×1
  • 21000378707
    $33.90
    HANDLE MACH LH - 1000378707×1
  • 31000378708
    $33.90
    HANDLE MACH RH - 1000378708×1
  • 41000397081
    $14.02
    SPRING LEVER - 1000397081×2
  • 51000340013
    $10.74
    SPRING WEDGE - 1000340013×2
  • 61000387925
    $21.75
    LINK COUPLER - 1000387925×2
  • 71000497371
    $58.33
    PIN WEDGE COUPLER - 1000497371×2
  • 81000340316
    $3.18
    WASHER WEDGE - 1000340316×4
  • 91000473085
    $9.02
    PLUG EXPANSION 1.5in - 1000473085×2
  • 101000424035
    $7.62
    WEAR BUSHING - 1000424035×2
  • 111000505588
    $9.93
    BOLT M12 X 70 SHOULDER 12.9 MA - 1000505588×2
  • 121000340315
    $1.19
    PIN M10 X 30 COILED HEAVY DUTY - 1000340315×2
  • 131000340314
    $2.06
    PIN M12 X 45 COILED HEAVY DUTY - 1000340314×2
  • 145100078048Not stocked
    Nut×2
  • 155000010375
    $0.18
    WASHER B10.5 FLAT - 5000010375×2
  • 161000343269
    $0.80
    ZERK GREASE - 1000343269×4
  • 171000343271
    $3.50
    WASHER WEDGE - 1000343271×2
  • 181000440716
    $18.92
    WELDMENT FLAG PIN - 1000440716×1
  • 191000440911
    $0.67
    RING M25 EXTERNAL RETAINING - 1000440911×1
  • 201000490693
    $1.64
    SHIM-30X42X1 DIN 988 SPRING STEEL - 1000490693×2
  • 211000424036
    $1.46
    WASHER 27MM ID - 1000424036×1
  • 221000505809
    $12.78
    SPACER 9.5MM X 28MM OD X 12.2MM ID - 1000505809×2
