SM60

SM60 Hydraulic Filter / Cooling System Diagram

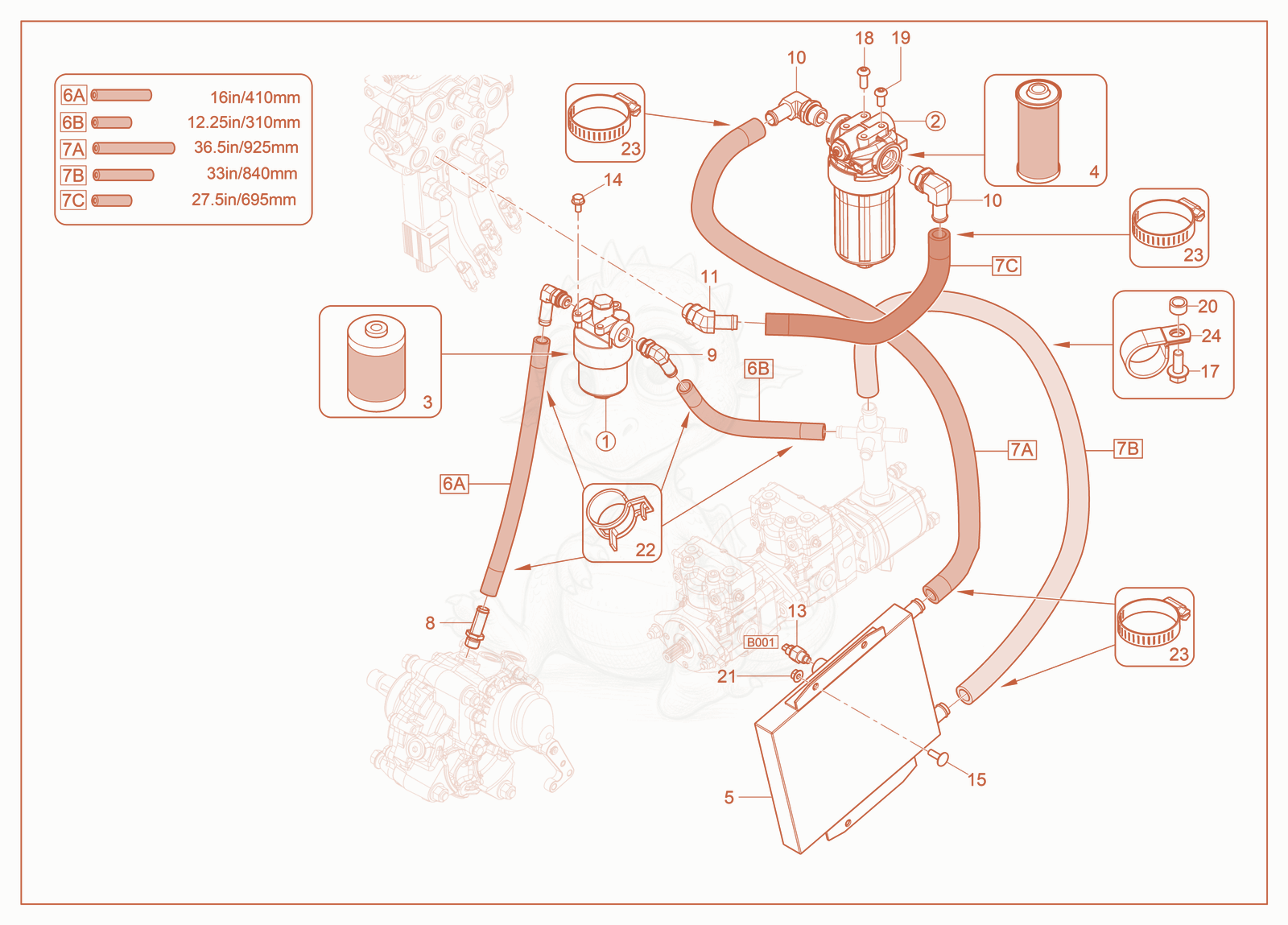

Exploded parts diagram of the Hydraulic Filter / Cooling System of a Wacker Neuson SM60, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15100040787
    $123.46
    FILTER ASM HYDRAULIC 580PSI - 5100040787×1
  • 21000459723
    $164.27
    Filterhydraulic 1000459723×1
  • 35100044533
    $54.78
    FILTER-ELEMENT - 5100044533×1
  • 41000463685
    $84.66
    HYDRAULIC OIL FILTER - 1000463685×1
  • 51000488918
    $124.36
    OIL COOLER SM60 - 1000488918×1
  • 61000469168
    $9.94
    Hose 2FT (609.6mm) - 1000469168×1
  • 71000469310
    $21.20
    Hose 5FT (1524mm) - 1000469310×1
  • 81000343361
    $11.30
    FITTING HYD 4604-10-08-O - 1000343361×1
  • 91000475143
    $7.67
    FITTING HYD 08MB-10HB90 - 1000475143×2
  • 101000479882
    $12.94
    FITTING HYD 12MB-12HB90 SHORT - 1000479882×2
  • 111000457651
    $6.52
    FITTING HYD 10MB-12HB45 - 1000457651×1
  • 131000339887
    $38.90
    SENSOR HYD OIL TEMP - 1000339887×1
  • 145000155839
    $0.48
    SCREW M8X16 HX HD,SERR FLG BLK - 5000155839×3
  • 151000403381
    $0.65
    BOLT-CARRIAGE,SHRT NK-M8x25-8.8-ZNC - 1000403381×3
  • 175000119211
    $0.37
    SCREW M8X20 W/THDLK,202 - 5000119211×1
  • 185000164514
    $2.32
    SCREW M10X25 BTNSCH, W/3M-2353 - 5000164514×2
  • 191000462387
    $0.32
    SCREW-M10x20-SOC.BTN-10.9-ZNC - 1000462387×2
  • 201000443489
    $0.25
    SPACER-FILTERS - 1000443489×1
  • 211000343350
    $0.18
    NUT M8 FLANGED LOCKNUT 8 ZINC - 1000343350×3
  • 221000357141
    $0.96
    HOSE CLAMP CTB 23 - 1000357141×4
  • 235000172012
    $1.40
    CLAMP-HOSE W/O SERATN 20-32 MM - 5000172012×6
  • 241000449055
    $1.39
    P-CLIP 1-1/4 VINYL COAT - 1000449055×1
