SM60

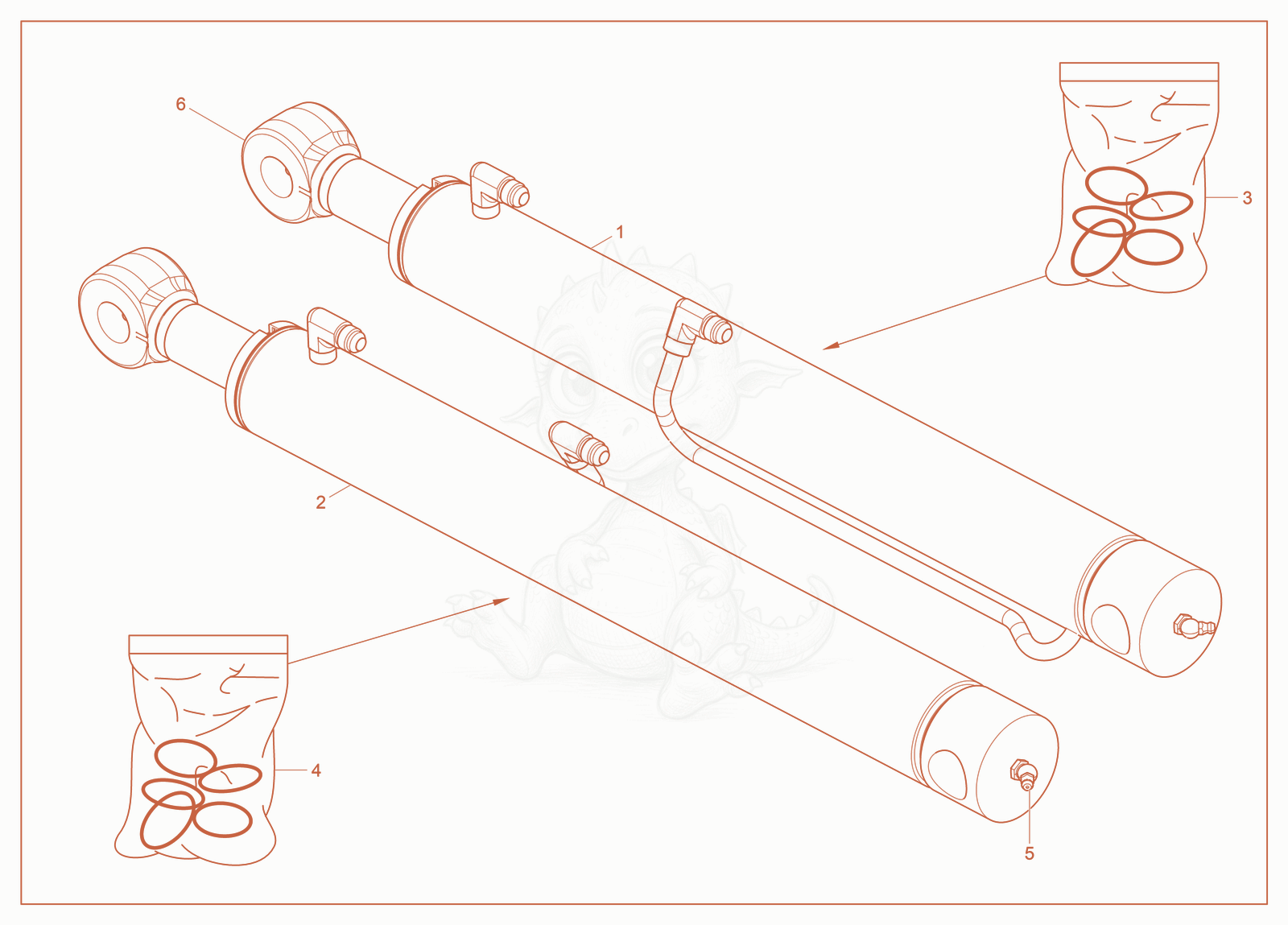

SM60 Lifting Boom Cylinder Diagram

Exploded parts diagram of the Lifting Boom Cylinder of a Wacker Neuson SM60, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000544670Not stocked
    CYLINDER HYD LIFT RH SUTL×1
  • 21000544673Not stocked
    CYLINDER HYD LIFT LH SUTL×1
  • 31000472191
    $55.48
    SEAL KIT - 1000472191×1
  • 41000472190
    $55.48
    SEAL KIT - 1000472190×1
  • 55100062438
    $5.05
    45° GREASE FITTING - 5100062438×2
  • 65100062439
    $2.06
    Straight GREASE FITTING - 5100062439×2
