SM60

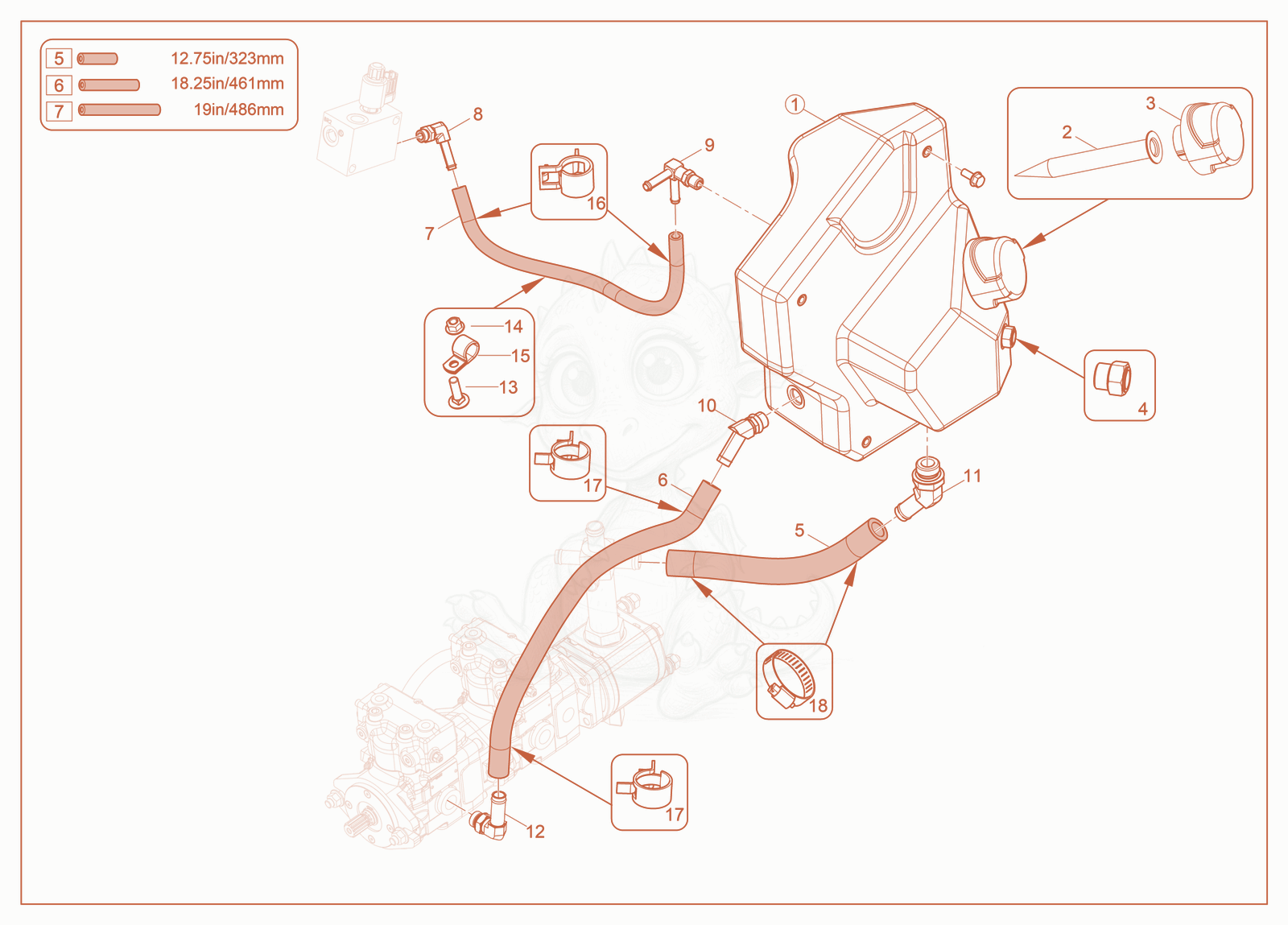

SM60 Hydraulic Tank Diagram

Exploded parts diagram of the Hydraulic Tank of a Wacker Neuson SM60, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000473599
    $327.05
    Tankhydassy 1000473599×1
  • 21000340159
    $11.54
    SCREEN HYD FILL - 1000340159×1
  • 31000340157
    $32.85
    CAP HYDRAULIC - 1000340157×1
  • 41000431943
    $39.47
    SIGHT WINDOW HYD - 1000431943×1
  • 51000505702
    $21.24
    Hose 2FT (609.6mm) - 1000505702×1
  • 61000469168
    $9.94
    Hose 2FT (609.6mm) - 1000469168×1
  • 71000505589
    $19.76
    Hose 2FT (609.6mm) - 1000505589×1
  • 81000343381
    $6.71
    FITTING HYD 06MB-06HB90 - 1000343381×1
  • 91000343151
    $11.95
    FITTING HYD TEE 06MORB 06 06 - 1000343151×1
  • 101000357187
    $20.09
    FITTING HYD 4603-10-08-NWO - 1000357187×1
  • 111000384083
    $14.91
    FITTING HYD 12HB-12MAORB45 - 1000384083×1
  • 121000475143
    $7.67
    FITTING HYD 08MB-10HB90 - 1000475143×1
  • 135000162829
    $0.67
    BOLT-CARR M10X35 4.6,ZN YEL - 5000162829×1
  • 145000010365
    $0.20
    NUT-LOCK M10 HEX. - 5000010365×1
  • 151000366591
    $0.69
    P-CLIP 3/4 VINYL COAT - 1000366591×1
  • 161000357140
    $1.19
    HOSE CLAMP CTB 16 - 1000357140×2
  • 171000357141
    $0.96
    HOSE CLAMP CTB 23 - 1000357141×2
  • 185000172012
    $1.40
    CLAMP-HOSE W/O SERATN 20-32 MM - 5000172012×2
