ST31

ST31(S08) Brake System Diagram

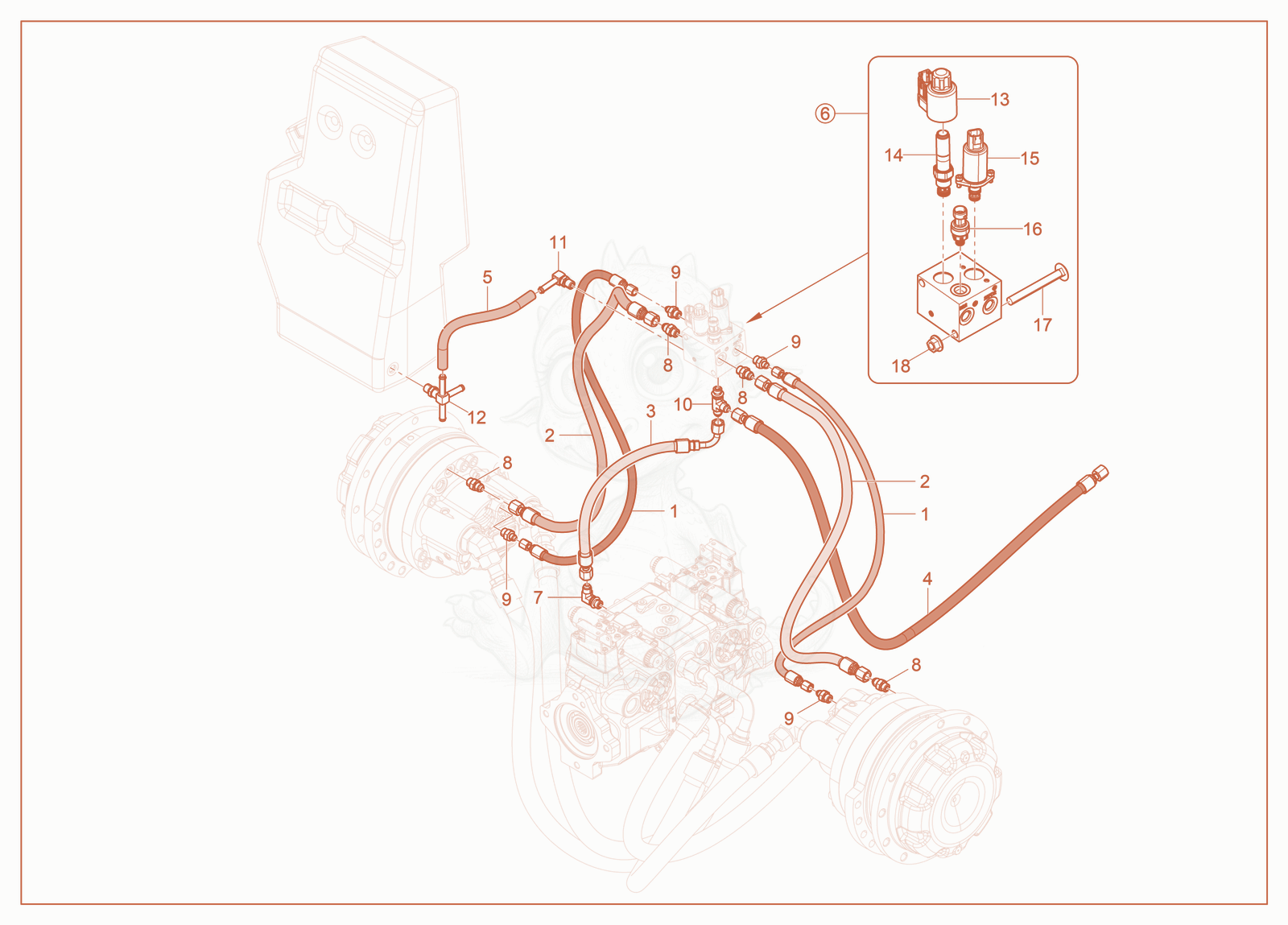

Exploded parts diagram of the Brake System of a Wacker Neuson ST31(S08), with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000368406Not stocked
    Hose assembly×2
  • 21000340183Not stocked
    Hose assembly×2
  • 31000343408Not stocked
    Hydraulic hose×1
  • 41000483179Not stocked
    HOSE ASSEMBLY×1
  • 51000451453
    $1.62
    HOSE - 1000451453×1
  • 61000340171Not stocked
    Valve×1
  • 71000343340Not stocked
    Fitting×1
  • 81000343338
    $2.95
    FITTING HYD 06MB-06MJ - 1000343338×4
  • 91000343339
    $2.74
    FITTING HYD 06MB-04MJ - 1000343339×4
  • 101000343369Not stocked
    Tee fitting×1
  • 111000343341Not stocked
    Fitting×1
  • 121000343323
    $14.37
    FITTING HYD 820-06-06-06-06 - 1000343323×1
  • 131000365402
    $29.43
    MAGNET SPOOL - 1000365402×1
  • 141000437948
    $121.41
    valve - 1000437948×1
  • 151000365406
    $352.85
    valve - 1000365406×1
  • 161000342842Not stocked
    Valve×1
  • 171000343337
    $2.61
    BOLT M10 X 90 CARRIAGE 8.8 ZINC - 1000343337×2
  • 181000343293
    $0.23
    NUT M10 FLANGED 10 ZINC - 1000343293×2
