ST31

ST31(S08) Battery Disconnect Diagram

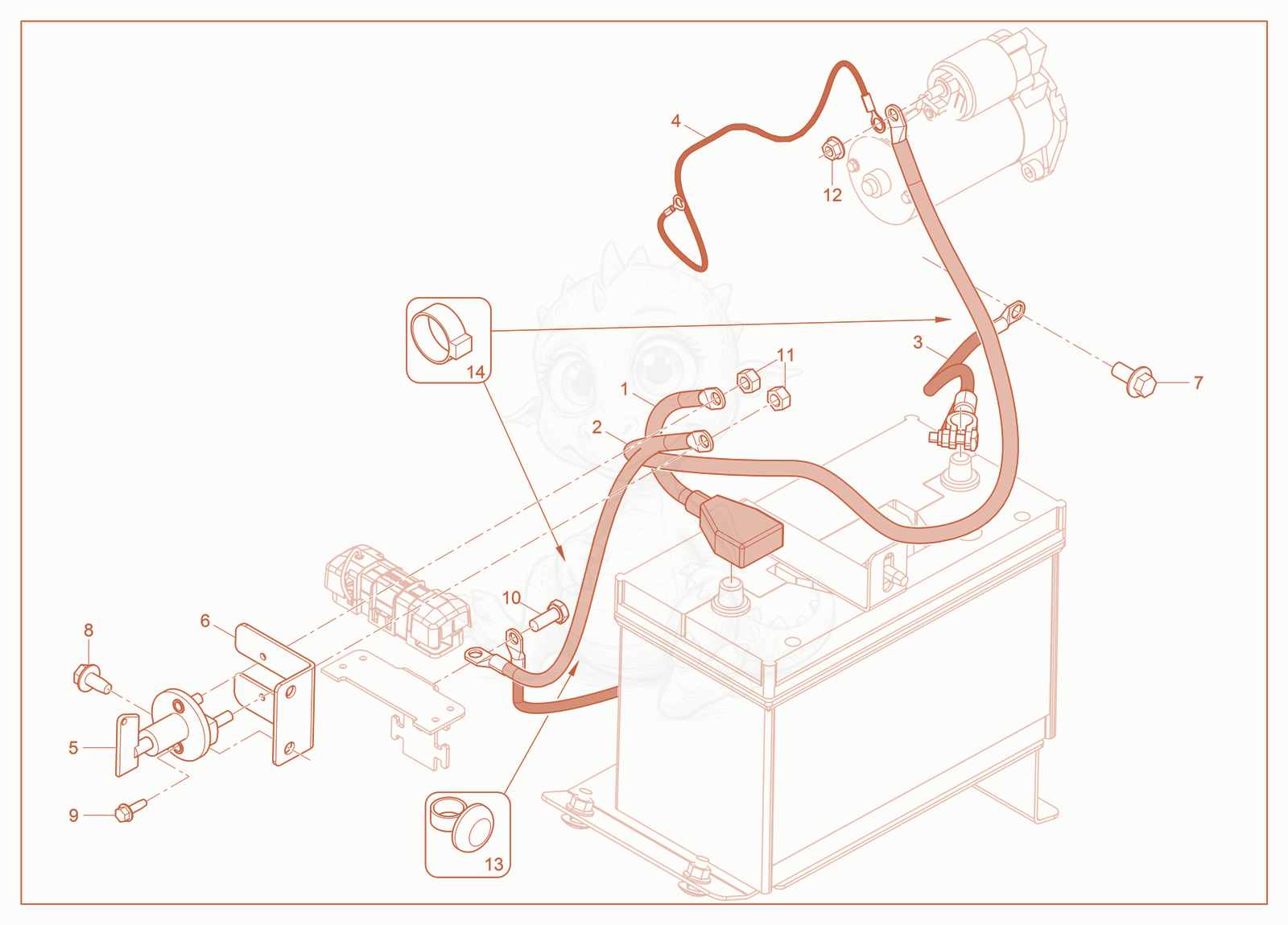

Exploded parts diagram of the Battery Disconnect of a Wacker Neuson ST31(S08), with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000388538Not stocked
    Positive battery cable×1
  • 21000391633Not stocked
    Positive battery cable×1
  • 31000403206Not stocked
    Negative battery cable×1
  • 41000384605
    $47.16
    WIRING HARNESS ALTERNATOR - 1000384605×1
  • 51000366018Not stocked
    Battery disconnect×1
  • 61000363275Not stocked
    Bracket×1
  • 71000343355Not stocked
    Bolt×1
  • 81000343280
    $0.44
    SCREW M10 X 20 THREAD ROLLING ZINC - 1000343280×2
  • 91000342814Not stocked
    Screw×2
  • 101000343393Not stocked
    Hexagonal head cap screw×1
  • 111000343310
    $0.06
    NUT M10 HEX 8 ZINC - 1000343310×2
  • 121000343350
    $0.18
    NUT M8 FLANGED LOCKNUT 8 ZINC - 1000343350×1
  • 131000357167
    $1.80
    TIE BUTTON - 1000357167×1
  • 141000342986
    $0.58
    TIE HEAVY DUTY - 1000342986×2
