ST31

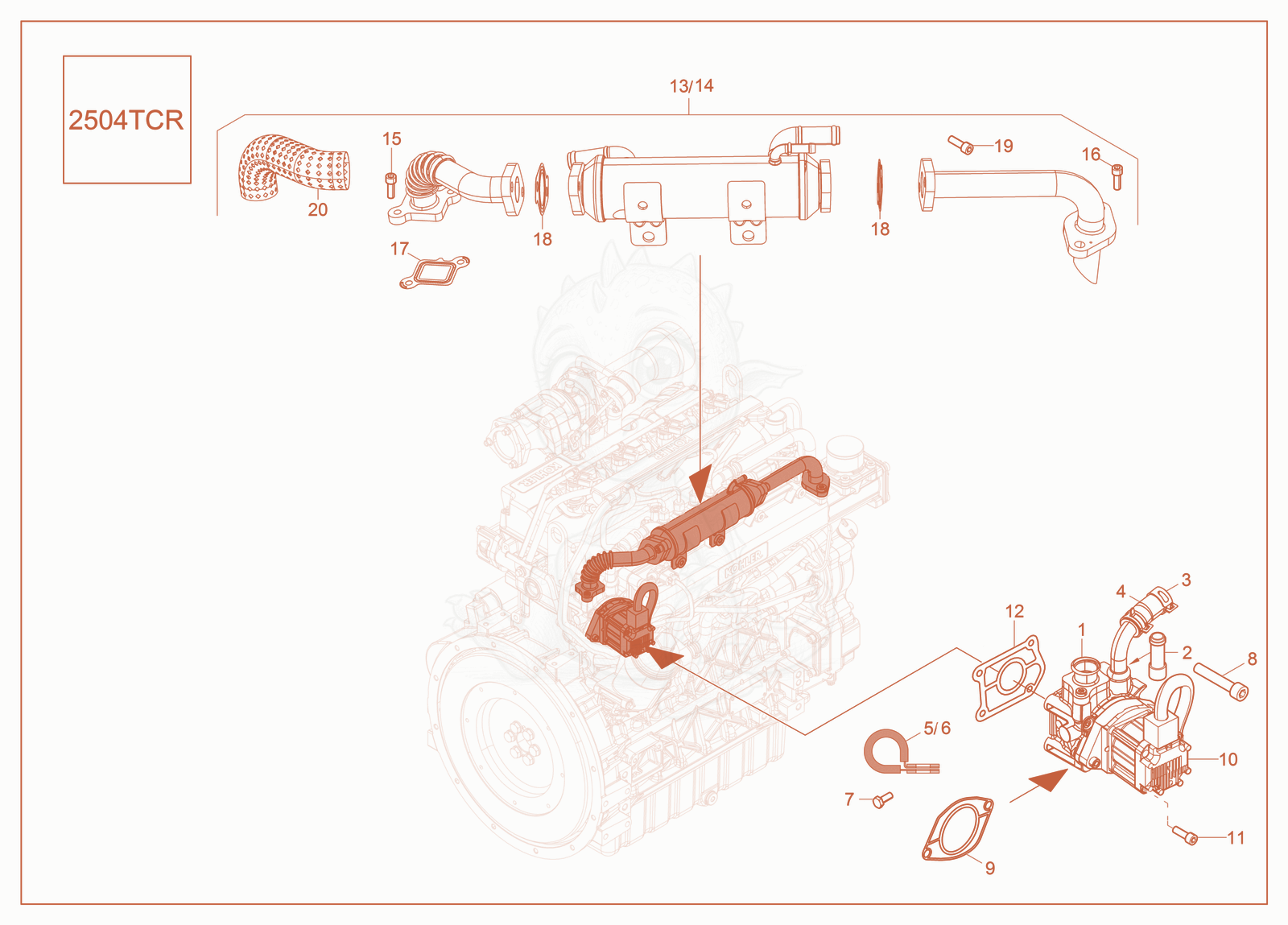

ST31(S08) Exhaust Diagram

Exploded parts diagram of the Exhaust of a Wacker Neuson ST31(S08), with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15100029473
    $336.56
    FLANGE-EGR - 5100029473×1
  • 25200016471Not stocked
    Hose fitting×1
  • 35200016388Not stocked
    Clamp×2
  • 45100029474Not stocked
    Hose×1
  • 55100016079
    $10.96
    Clamp - 5100016079×1
  • Clamp - 5100016100×1
  • 75200016365Not stocked
    Screw×1
  • SCREW M6 X 1 X 65MM - 5000207992×4
  • GASKET - 5100016102×1
  • 105100016103
    $2,046.43
    EGR VALVE - 5100016103×1
  • 115200016441Not stocked
    Bolt×2
  • 125100016104
    $15.77
    GASKET - 5100016104×1
  • 135200016805Not stocked
    Cooler×1
  • 145200016805Not stocked
    Cooler×1
  • 155200016337Not stocked
    Screw×2
  • 165200016486Not stocked
    Screw×2
  • 175200016808Not stocked
    Gasket×1
  • 185100016076
    $16.04
    GASKET - 5100016076×3
  • 195000084169
    $1.83
    SCREW M8 X 20 - 5000084169×4
  • 205100029472
    $76.00
    SHEATH-THERMIC - 5100029472×1
