ST31

ST31(S08) Kit—14-pin Kit Diagram

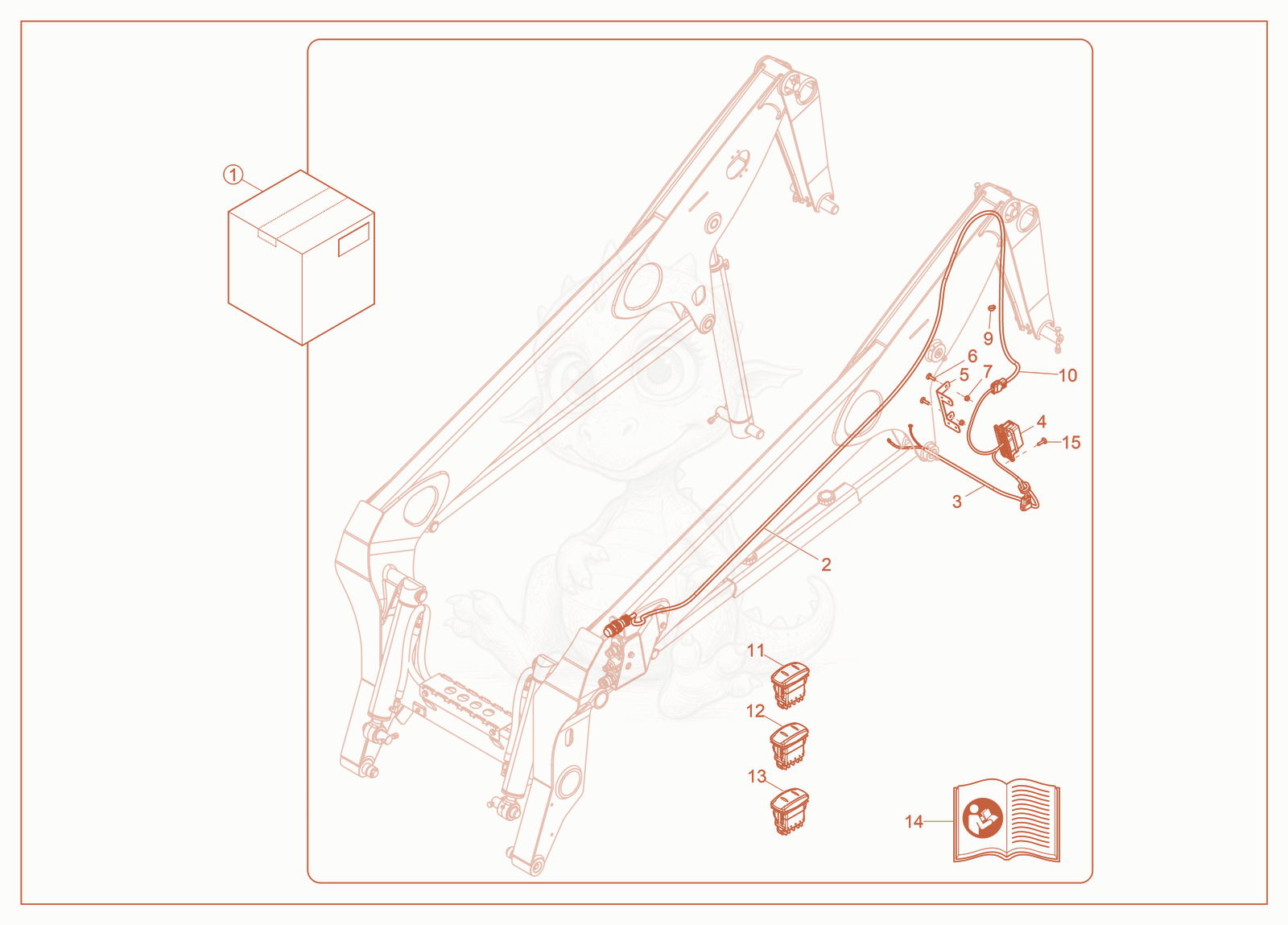

Exploded parts diagram of the Kit—14-pin Kit of a Wacker Neuson ST31(S08), with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000340403Not stocked
    Kit—14-pin harness×1
  • 21000362989Not stocked
    Wiring harness×1
  • 31000377024Not stocked
    Wiring harness×1
  • 41000342858Not stocked
    Fuse box×1
  • 51000362468Not stocked
    Bracket×1
  • 61000402940
    $0.28
    BOLT-M8x20-CARRIAGE.SHRT.NK-8.8-ZNK - 1000402940×2
  • 71000343350
    $0.18
    NUT M8 FLANGED LOCKNUT 8 ZINC - 1000343350×2
  • 91000094905
    $0.10
    cable ties 280x4,8mm - 1000094905×5
  • 101000342961Not stocked
    Connector×1
  • 111000342318Not stocked
    Rocker switch×1
  • 111000382297Not stocked
    Rocker switch×1
  • 121000342406Not stocked
    Rocker switch×1
  • 131000342407Not stocked
    Rocker switch×1
  • 141000374678Not stocked
    Installation instructions×1
  • 151000342814Not stocked
    Screw×4
