ST31(S08) Bucket Cylinder Operation Diagram

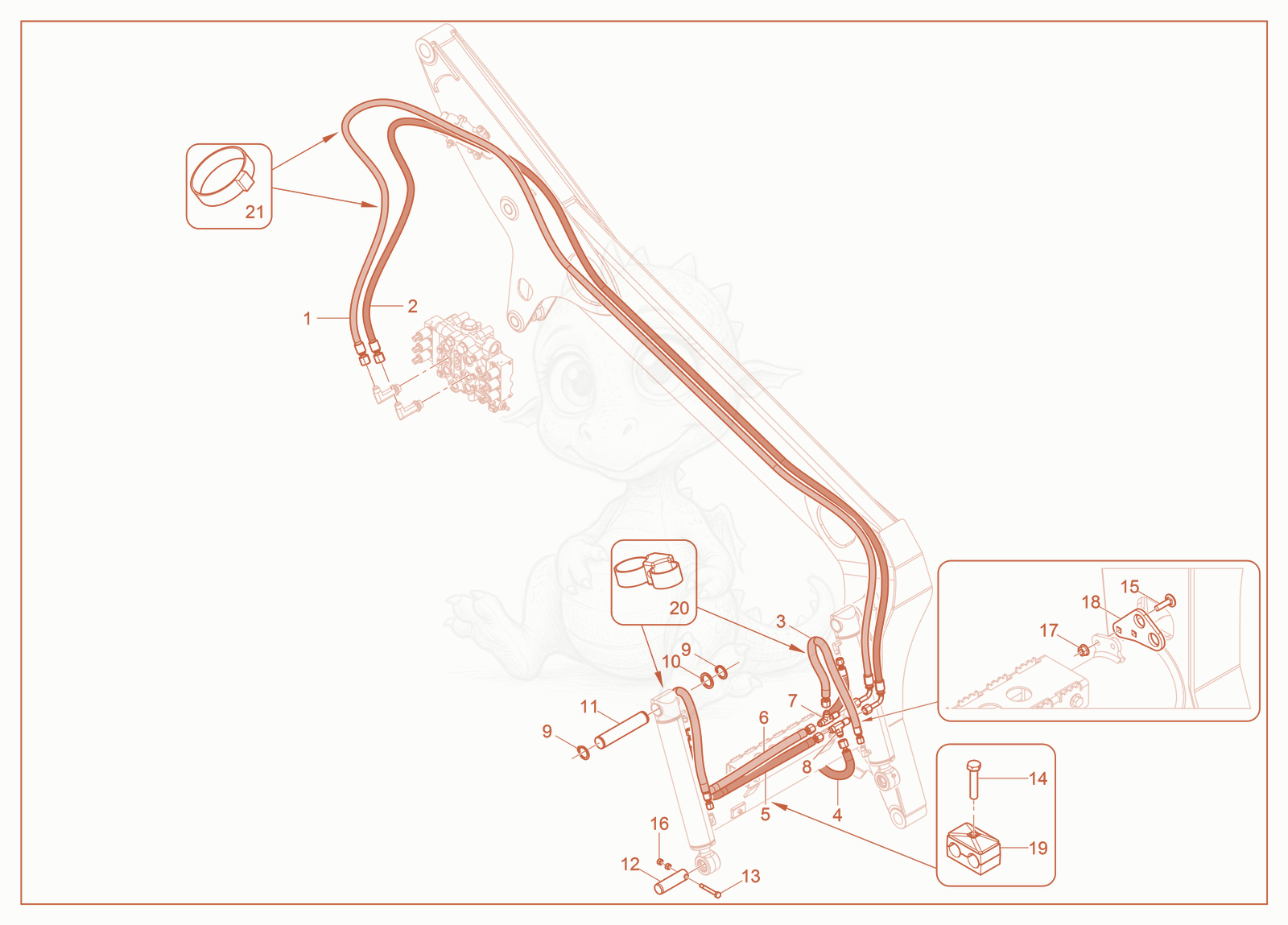

Exploded parts diagram of the Bucket Cylinder Operation of a Wacker Neuson ST31(S08), with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000507265Not stocked
    HOSE ASSEMBLY×1
  • 21000507265Not stocked
    HOSE ASSEMBLY×1
  • 31000446358Not stocked
    HOSE ASSEMBLY×1
  • 41000507266Not stocked
    HOSE ASSEMBLY×1
  • 51000501563Not stocked
    HOSE ASSEMBLY×1
  • 61000501562Not stocked
    HOSE ASSEMBLY×1
  • 75000025640
    $0.15
    WASHER 3/4 NOM,FLAT STEEL - 5000025640Unknown×1
  • 71000343153Not stocked
    Hexagon nut×1
  • 71000343372Not stocked
    Tee fitting×1
  • 85000025640
    $0.15
    WASHER 3/4 NOM,FLAT STEEL - 5000025640Unknown×1
  • 81000343153Not stocked
    Hexagon nut×1
  • 81000343372Not stocked
    Tee fitting×1
  • 91000343371Not stocked
    Ring×4
  • 101000378709Not stocked
    Flat washer×6
  • 111000399934Not stocked
    Pivot pin×2
  • 121000399999Not stocked
    Pivot pin×2
  • 131000343312Not stocked
    Screw×2
  • 145000011452
    $0.44
    SCREW M8 X 50 HX.HD. - 5000011452×1
  • 151000343405Not stocked
    Carriage bolt×2
  • 161000343310
    $0.06
    NUT M10 HEX 8 ZINC - 1000343310×4
  • 171000343350
    $0.18
    NUT M8 FLANGED LOCKNUT 8 ZINC - 1000343350×2
  • 181000383057Not stocked
    Plate×1
  • 191000386925Not stocked
    Clamp×1
  • 201000342832
    $2.64
    TIE DOUBLE - 1000342832×4
  • 211000342986
    $0.58
    TIE HEAVY DUTY - 1000342986×4
