ST31

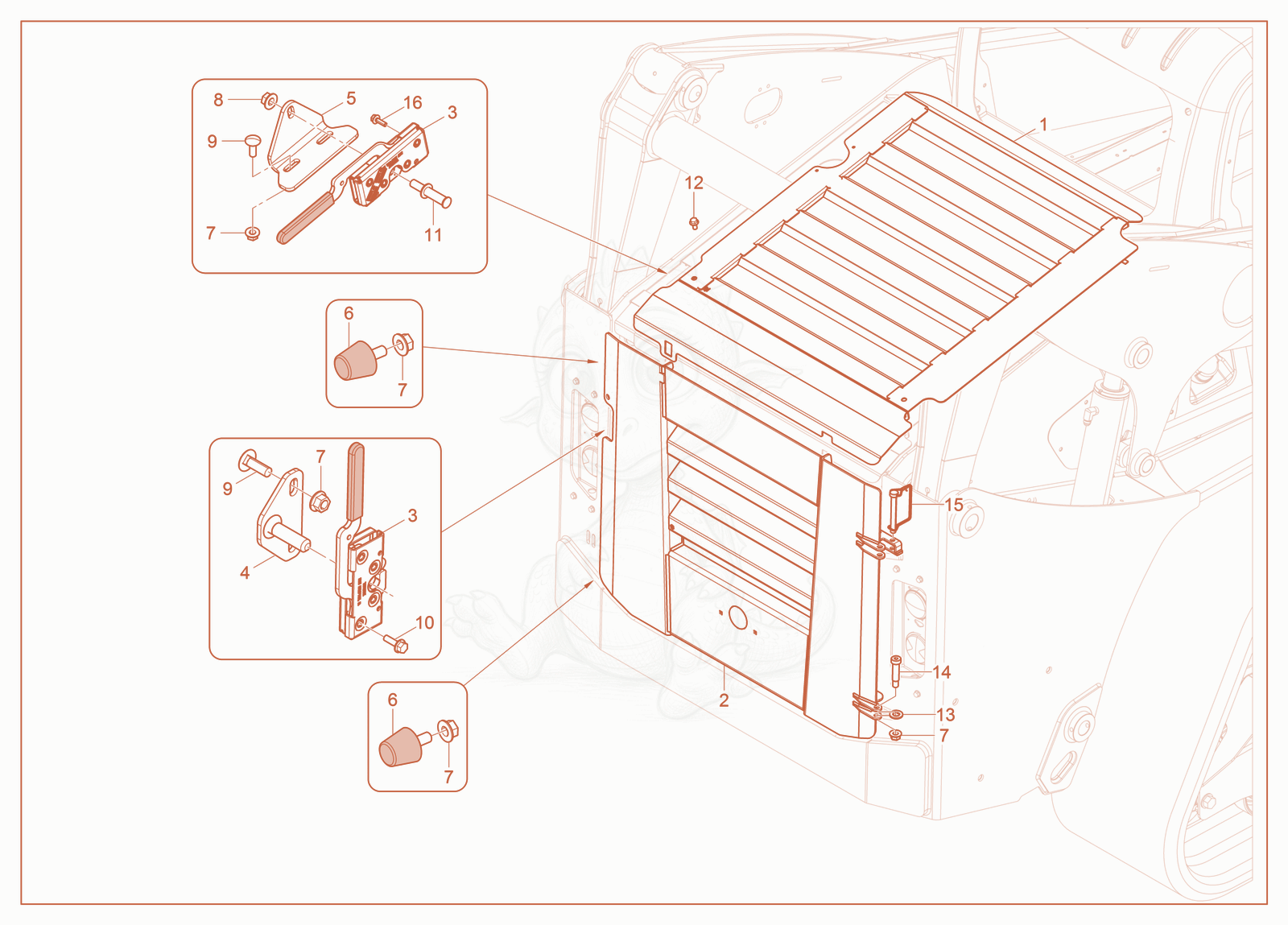

ST31(S08) Engine hood Diagram

Exploded parts diagram of the Engine hood of a Wacker Neuson ST31(S08), with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000347317Not stocked
    Engine hood×1
  • 21000434682
    $1,119.32
    WELDMENT REAR COVER MF - 1000434682×1
  • 31000340096Not stocked
    Latch×2
  • 41000434689
    $28.70
    WELDMENT STRIKER - 1000434689×1
  • 51000375144Not stocked
    Plate×1
  • 61000340323Not stocked
    Rubber buffer×2
  • 71000343293
    $0.23
    NUT M10 FLANGED 10 ZINC - 1000343293×8
  • 81000343305
    $0.73
    NUT M12 FLANGED 10 ZINC - 1000343305×1
  • 91000343318
    $0.41
    BOLT M10 X 30 CARRIAGE 8.8 ZINC - 1000343318×4
  • 101000343317Not stocked
    Bolt×4
  • 111000340572Not stocked
    Pin×1
  • 121000343289Not stocked
    Flanged bolt×2
  • 131000343402Not stocked
    Flat washer×2
  • 141000343319
    $3.80
    BOLT M12 X 40 SHOULDER 12.9 MAGNI 501 - 1000343319×2
  • 151000340259
    $3.42
    PIN LYNCH - 1000340259×1
  • 161000357189
    $0.26
    BOLT M6 X 20 BUTTON HD BLK - 1000357189×4
