ST50

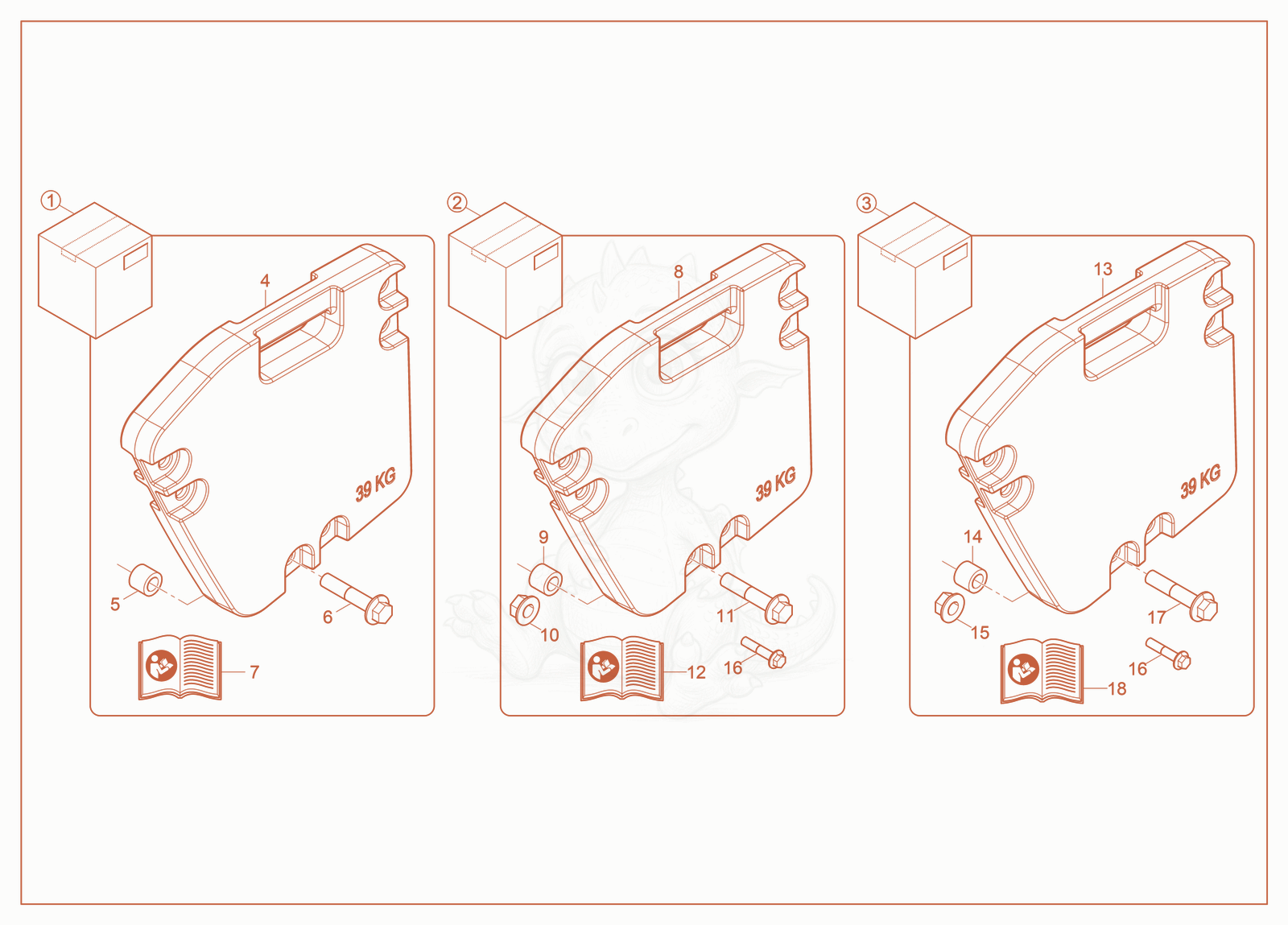

ST50 Kit—Additional Weights Diagram

Exploded parts diagram of the Kit—Additional Weights of a Wacker Neuson ST50, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000340384Not stocked
    Kit—170 auxiliary weights×1
  • 21000340385Not stocked
    Kit—340 auxiliary weights×1
  • 31000340386Not stocked
    Kit—510 auxiliary weights×1
  • 41000340070Not stocked
    Auxiliary weight×2
  • 51000378381Not stocked
    Spacer×6
  • 61000343275Not stocked
    Bolt×6
  • 71000365297Not stocked
    Installation instructions 170×1
  • 81000340070Not stocked
    Auxiliary weight×4
  • 91000378381Not stocked
    Spacer×6
  • 101000343276Not stocked
    Flange nut×6
  • 111000343275Not stocked
    Bolt×6
  • 121000365296Not stocked
    Installation instructions 340×1
  • 131000340070Not stocked
    Auxiliary weight×6
  • 141000378381Not stocked
    Spacer×6
  • 151000343276Not stocked
    Flange nut×12
  • 161000343277Not stocked
    Flange bolt×12
  • 171000343275Not stocked
    Bolt×6
  • 181000365301Not stocked
    Installation instructions 510×1
