ST50

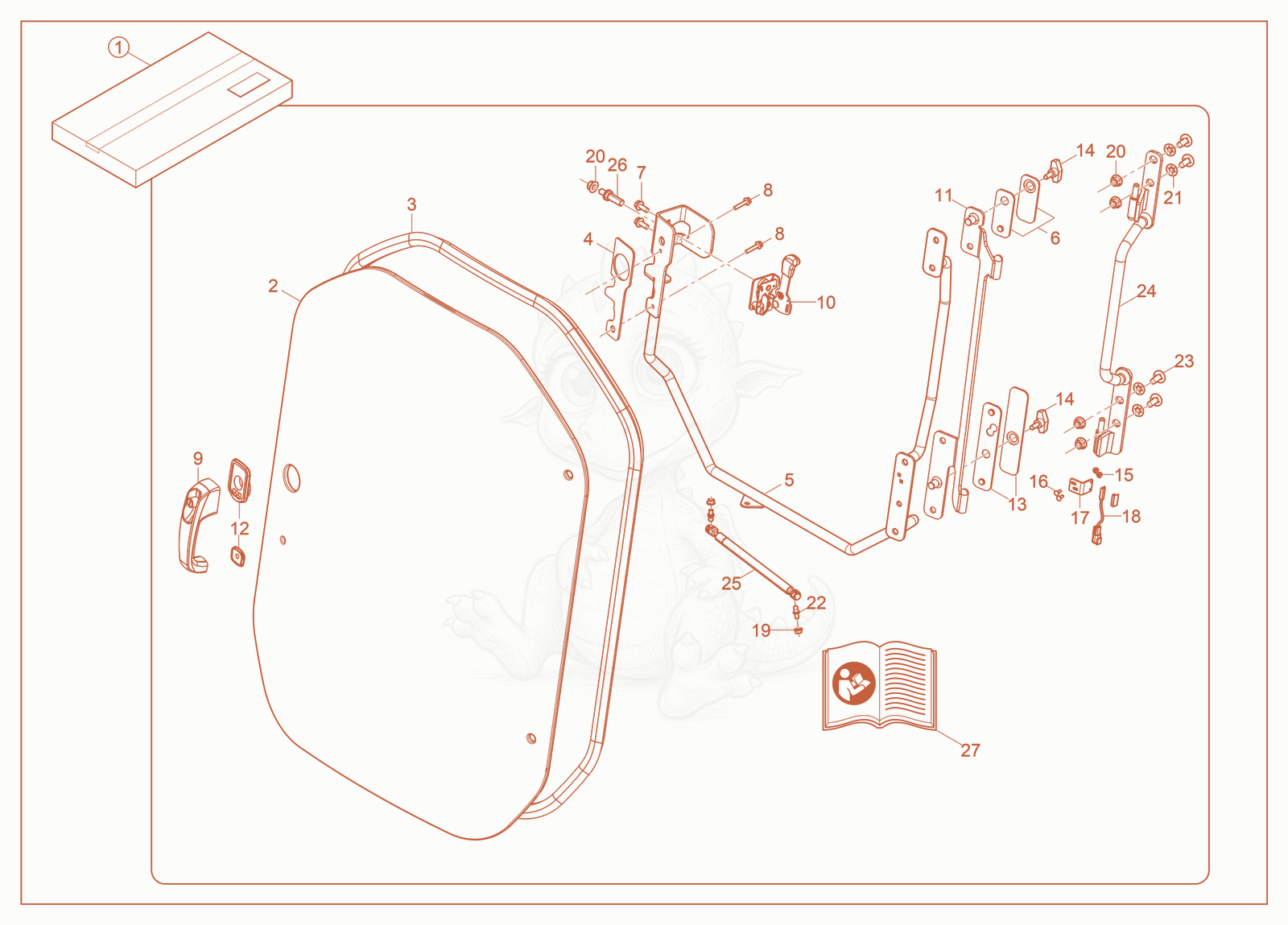

ST50 Kit—Polycarbonate Door Diagram

Exploded parts diagram of the Kit—Polycarbonate Door of a Wacker Neuson ST50, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000378853Not stocked
    Kit—polycarbonate door×1
  • 21000340468Not stocked
    Polycarbonate door glass×1
  • 21000440930Not stocked
    Polycarbonate cabin door×1
  • 31000373988Not stocked
    Seal×1
  • 41000340115Not stocked
    Gasket×1
  • 51000363836Not stocked
    Polycarbonate door frame×1
  • 51000440925Not stocked
    Polycarbonate door frame×1
  • 61000340116Not stocked
    Gasket×2
  • 71000343396
    $0.18
    BOLT M8 X 20 FLANGED 8.8 ZINC - 1000343396×2
  • 81000400412
    $0.56
    BOLT M6 X 40 FLANGED 10.9 ZINC - 1000400412×2
  • 91000340102Not stocked
    Handle×1
  • 101000343178Not stocked
    Door latch×1
  • 111000372597Not stocked
    Weldment×1
  • 121000361491Not stocked
    Gasket×1
  • 131000342898Not stocked
    Gasket×2
  • 141000364916Not stocked
    Knob×2
  • 151000342931Not stocked
    Flange nut×2
  • 161000362726Not stocked
    Carriage bolt×2
  • 171000363276Not stocked
    Bracket×1
  • 181000364840
    $30.98
    KIT DOOR SENSOR - 1000364840×1
  • 191000343350
    $0.18
    NUT M8 FLANGED LOCKNUT 8 ZINC - 1000343350×2
  • 201000343293
    $0.23
    NUT M10 FLANGED 10 ZINC - 1000343293×5
  • 211000343294
    $0.06
    RETAINER BOLT M10 - 1000343294×4
  • 221000342932Not stocked
    Ball valve×2
  • 231000343297
    $0.85
    BOLT M10X25 CARRIAGE SHORT NECK 8.8 ZINC - 1000343297×4
  • 241000347326Not stocked
    Door hinge×1
  • 251000343183Not stocked
    Gas spring×1
  • 261000343093Not stocked
    Bolt×1
  • 271000365293Not stocked
    Installation instructions×1
