ST50

ST50 Control Block Zero Drift (Exploded View) Diagram

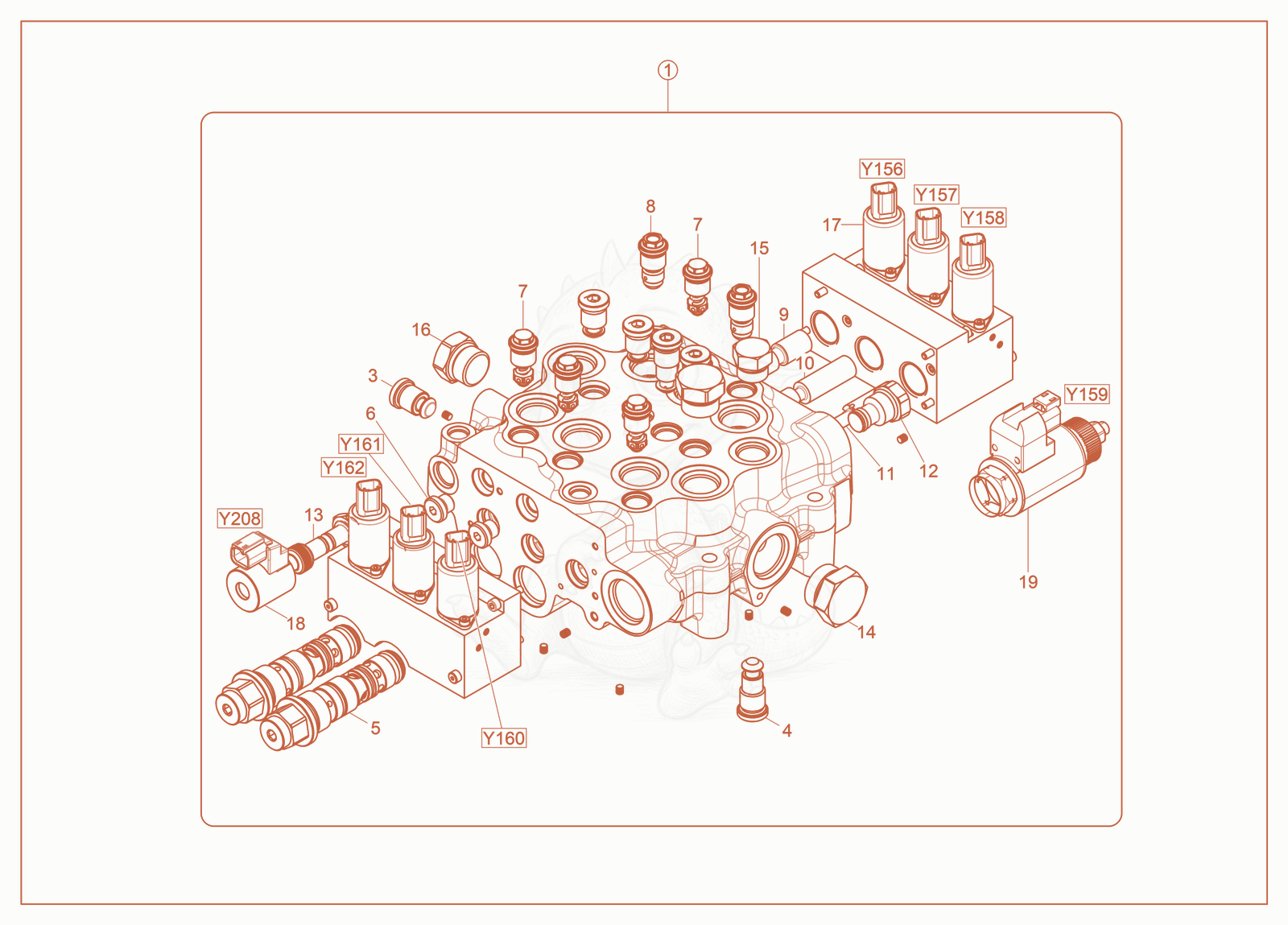

Exploded parts diagram of the Control Block Zero Drift (Exploded View) of a Wacker Neuson ST50, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000444543Not stocked
    Control block×1
  • 21000369411
    $182.44
    VALVE-RELIEF - 1000369411×1
  • 31000369412
    $75.00
    VALVE-CHECK - 1000369412×4
  • 41000369413
    $343.64
    VALVE-CHECK - 1000369413×2
  • 51000369444Not stocked
    Valve zero drift×2
  • 61000369445Not stocked
    Screw joint×2
  • 71000369414
    $112.61
    VALVE-RELIEF - 1000369414×4
  • 81000369415
    $95.88
    VALVE-RELIEF - 1000369415×2
  • 91000383178Not stocked
    Magnet spool×1
  • 101000369417
    $218.35
    Spool - 1000369417×1
  • 111000369418
    $226.01
    Spool - 1000369418×1
  • 121000369419
    $271.94
    VALVE-CHECK - 1000369419×1
  • 131000369420Not stocked
    Soleniod valve×1
  • 141000369431
    $29.98
    PLUG-HEX - 1000369431×1
  • 151000369432
    $40.19
    PLUG-HEX - 1000369432×1
  • 161000369433
    $31.72
    PLUG-HEX - 1000369433×2
  • 171000369434
    $379.39
    VALVE-RELIEF - 1000369434×6
  • 181000369435
    $155.84
    COIL - 1000369435×1
  • 191000484018
    $293.13
    Valve - 1000484018×1
