TH755

TH755(416-04) Frame Diagram

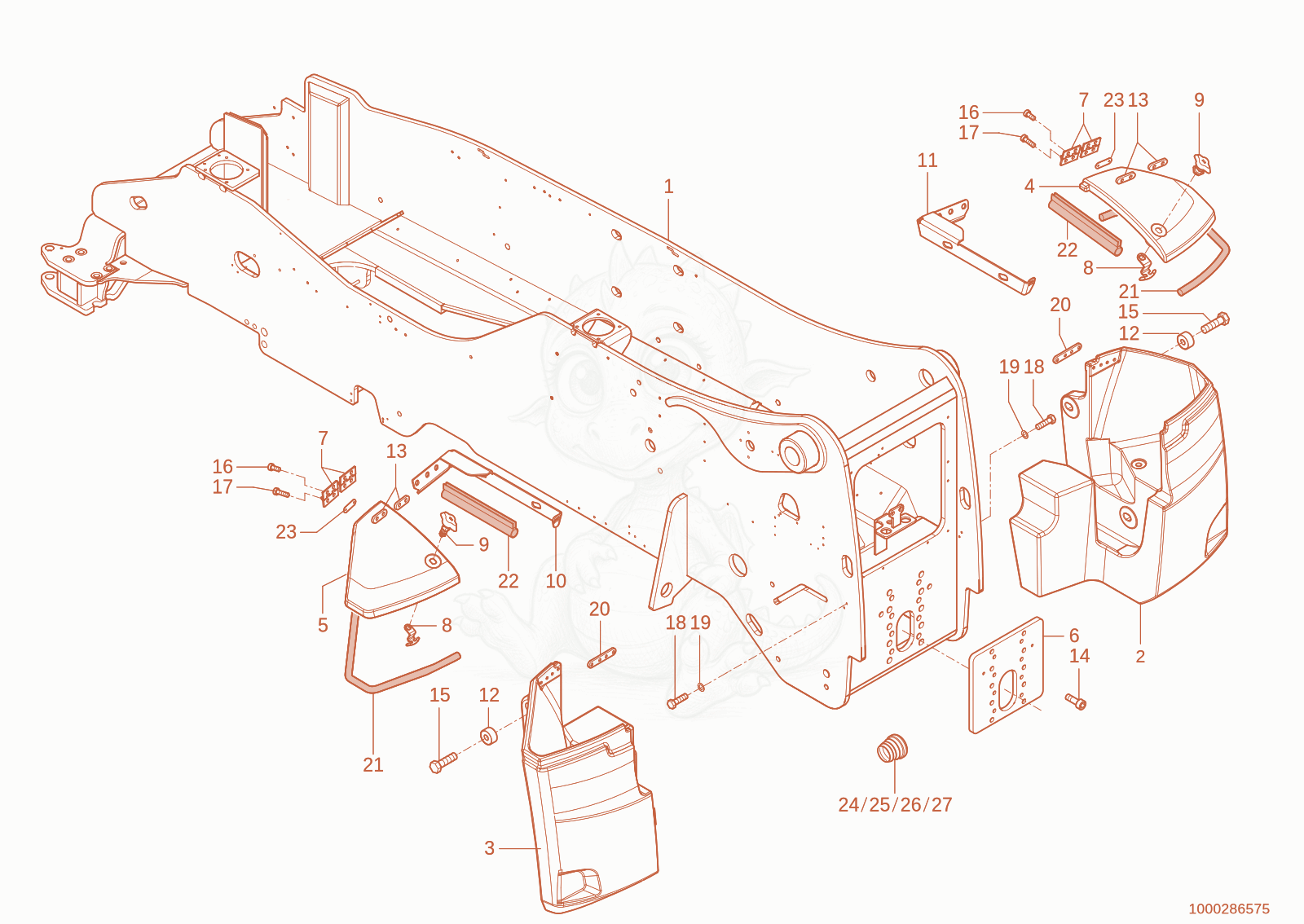

Exploded parts diagram of the Frame of a Wacker Neuson TH755(416-04), with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000280911Not stocked
    frame×1
  • 21000284338Not stocked
    ballast weight×1
  • 31000284337Not stocked
    ballast weight×1
  • 41000284340Not stocked
    cover×1
  • 51000284339Not stocked
    cover×1
  • 61000270737Not stocked
    plate×1
  • 71000283561Not stocked
    hinge×4
  • 81000284345Not stocked
    lock×2
  • 91000247037
    $94.42
    LOCK - 1000247037×2
  • 101000284346Not stocked
    holder×1
  • 111000285214Not stocked
    holder×1
  • 121000270888Not stocked
    washer×6
  • 131000285095Not stocked
    thread piece×8
  • 141000085468
    $0.42
    cheese head screw M10x25-8.8 A2C-DIN912 - 1000085468×2
  • 151000085346Not stocked
    hex screw×6
  • 161000082514
    $0.73
    cheese head screw - 1000082514×8
  • 171000082428
    $0.68
    socket head screw M4x12 8.8 A2C DIN912 - 1000082428×8
  • 181000019136Not stocked
    hex screw×4
  • 191000013027Not stocked
    washer×4
  • 201000293944Not stocked
    strap×2
  • 211000099662
    $11.72
    RUBBER PROFILE - 1000099662×1.6
  • 221000097040
    $21.32
    rofile - 1000097040×0.77
  • 231000295314Not stocked
    lining×2
  • 241000153436
    $6.32
    Plug - 1000153436×8
  • 251000153401
    $10.67
    Plug - 1000153401×8
  • 261000307020
    $0.66
    Plug - 1000307020×1
  • 271000307021
    $1.41
    Plug - 1000307021×3
