TH755

TH755(416-04) cover Diagram

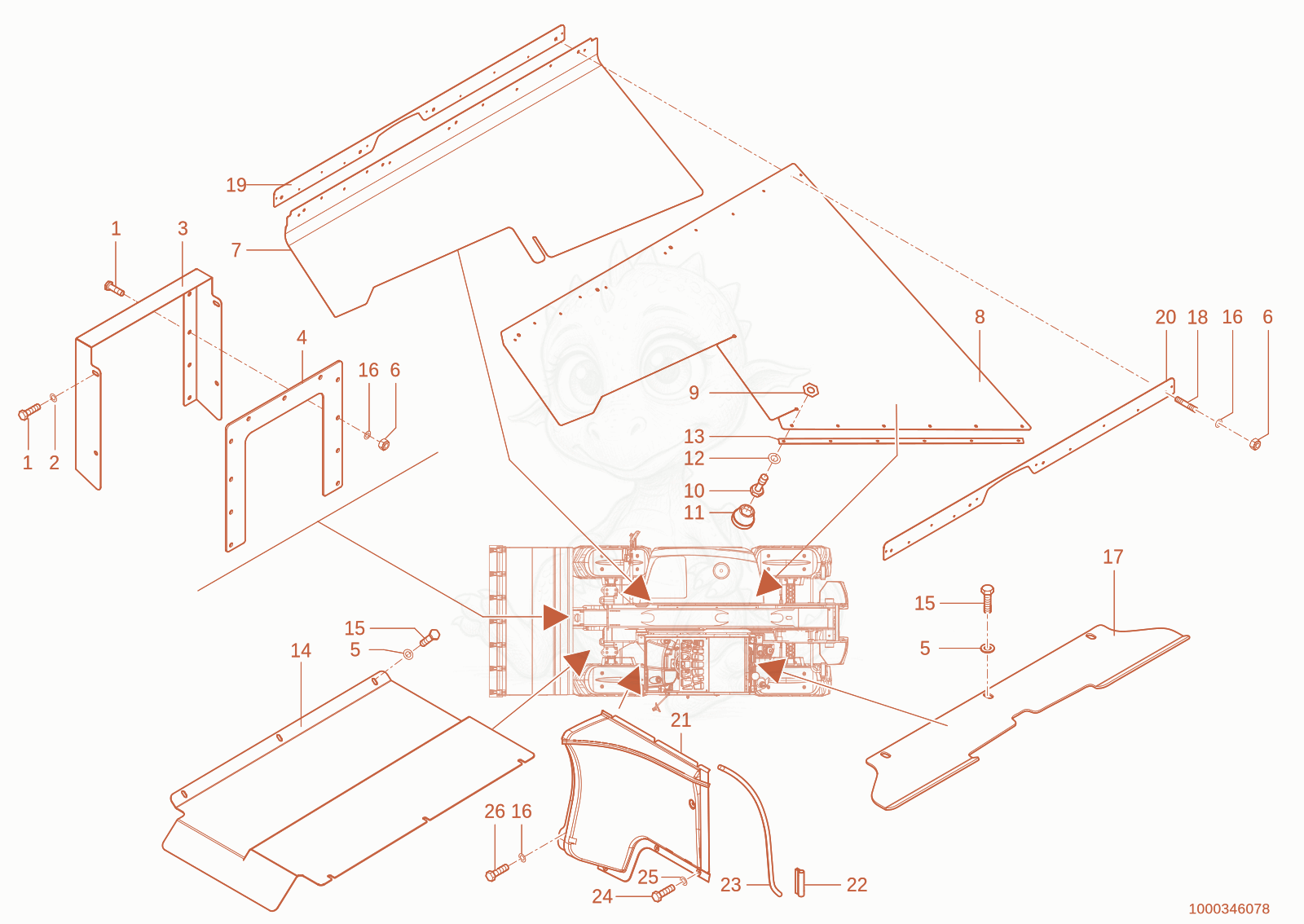

Exploded parts diagram of the cover of a Wacker Neuson TH755(416-04), with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000013008Not stocked
    hex screw×15
  • 21000297726Not stocked
    washer×4
  • 31000270924Not stocked
    Stripping plate×1
  • 41000270925Not stocked
    Stripping rubber×1
  • 51000013027Not stocked
    washer×11
  • 61000013022Not stocked
    hexagon nut×10
  • 71000277770Not stocked
    cover×1
  • 81000329881Not stocked
    cover×1
  • 91000247655
    $3.64
    lock plate - 1000247655×6
  • 101000247652
    $14.49
    Screw - 1000247652×6
  • 111000265805
    $10.79
    Button - 1000265805×6
  • 121000015431Not stocked
    washer×6
  • 131000286617Not stocked
    strap×1
  • 141000279104Not stocked
    cover plate×1
  • 151000019136Not stocked
    hex screw×9
  • 161000015431Not stocked
    washer×13
  • 171000297743Not stocked
    cover×1
  • 181000048914
    $1.31
    stud - 1000048914×4
  • 191000277766Not stocked
    strap×1
  • 201000277765Not stocked
    strap×1
  • 211000283330Not stocked
    trim×1
  • 221000097040
    $21.32
    rofile - 1000097040×1.06
  • 231000099662
    $11.72
    RUBBER PROFILE - 1000099662×0.48
  • 241000085389
    $0.73
    hex screw M8x12-8.8 A2C DIN933 - 1000085389×4
  • 251000013027Not stocked
    washer×4
  • 261000047828Not stocked
    hex screw×4
