TH755

TH755(416-04) Drives cycle Diagram

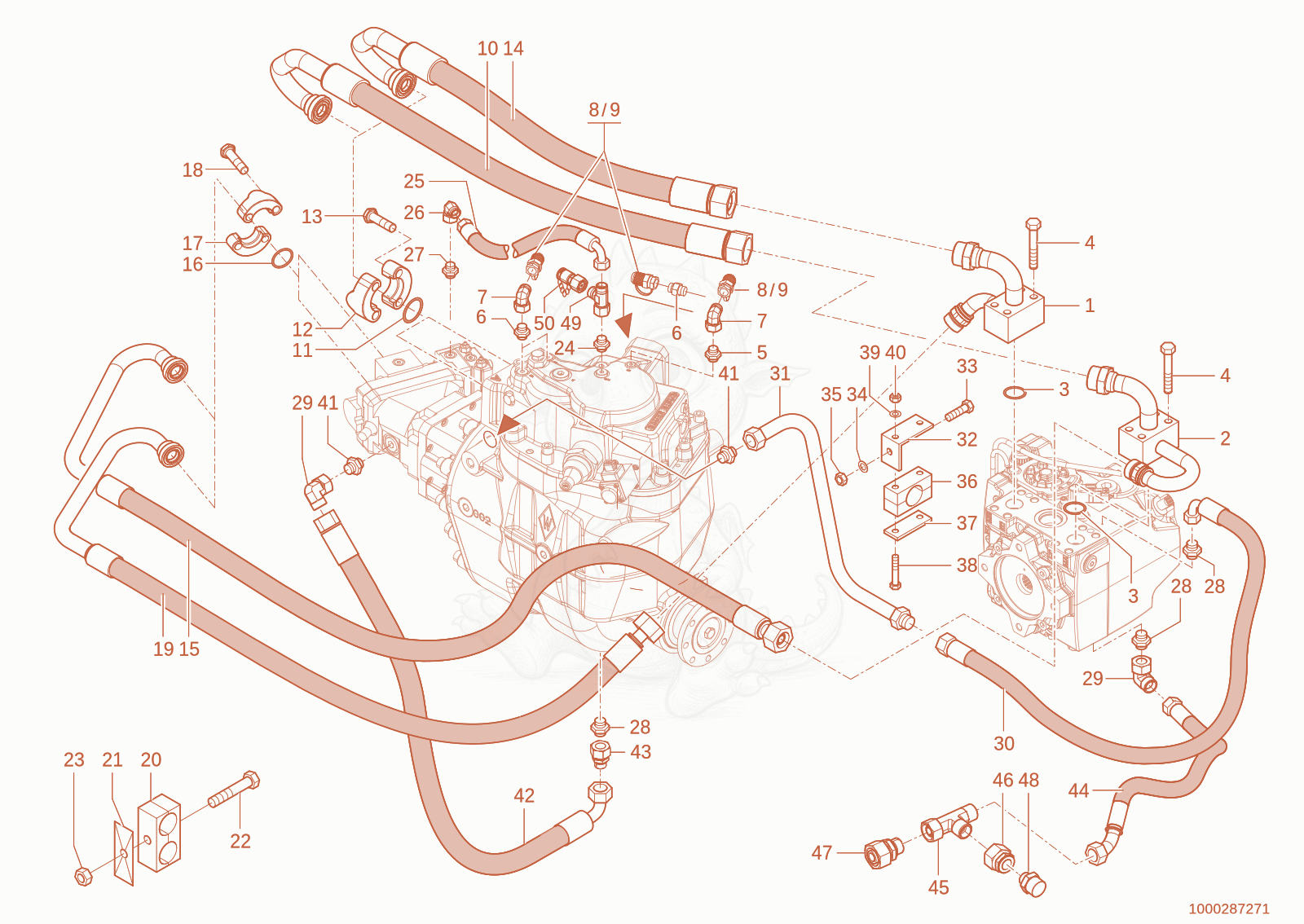

Exploded parts diagram of the Drives cycle of a Wacker Neuson TH755(416-04), with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000275540Not stocked
    connection piece×1
  • 21000275541Not stocked
    connection piece×1
  • 31000020771
    $3.42
    O-RING - 1000020771×2
  • 41000047850Not stocked
    hex screw×8
  • 51000182761Not stocked
    screw joint×1
  • 61000182762
    $6.26
    GE08SM14X1,5OROMDA3C - 1000182762×3
  • 71000085100
    $17.68
    EW08SOMDA3C - 1000085100×3
  • 81000028555Not stocked
    minimess point×4
  • 91000152349Not stocked
    minimess point×4
  • 101000273479Not stocked
    Hose×1
  • 111000020772
    $3.19
    o-ring - 1000020772×1
  • 121000028694Not stocked
    half flange×4
  • 131000032990Not stocked
    hex screw×8
  • 141000273478Not stocked
    Hose×1
  • 151000273475Not stocked
    Hose×1
  • 161000090485
    $1.71
    O-RING - 1000090485×2
  • 171000028689Not stocked
    half flange×4
  • 181000015346Not stocked
    hex screw×8
  • 191000273477Not stocked
    Hose×1
  • 201000253233
    $7.62
    clamp - 1000253233×1
  • 211000031631Not stocked
    cover plate×2
  • 221000085467
    $0.98
    cheese head screw - 1000085467×1
  • 231000013022Not stocked
    hexagon nut×1
  • 241000275568Not stocked
    screw joint×1
  • 251000271187Not stocked
    Hose×1
  • 261000028562Not stocked
    EW10-S A3C×1
  • 271000028520Not stocked
    screw joint×1
  • 281000028519Not stocked
    screw joint×2
  • 291000020261
    $17.85
    EW22LOMD - 1000020261×3
  • 301000271188Not stocked
    Hose×1
  • 311000280842Not stocked
    hydraulic pipe×1
  • 321000277571Not stocked
    angle×1
  • 331000015343Not stocked
    hex screw×1
  • 341000015431Not stocked
    washer×1
  • 351000013022Not stocked
    hexagon nut×1
  • 361000032127
    $2.66
    CLAMP - 1000032127×1
  • 371000031643Not stocked
    cover plate×1
  • 381000085312
    $0.93
    hex screw M6x60-8.8 A2C-DIN931 - 1000085312×2
  • 391000049283Not stocked
    bearing disc×2
  • 401000085588
    $0.32
    self-locking nuts M6-8 A2C-DIN985 - 1000085588×2
  • 411000115391Not stocked
    screw joint×2
  • 421000271189
    $68.62
    SLHYDR SPIR20 PN22 0 PN22 90 L500,0 - 1000271189×1
  • 431000085056
    $6.47
    GE22LMEDOMDA3C - 1000085056×1
  • 441000107873Not stocked
    Hose×1
  • 451000316928Not stocked
    ELR22/18/22-L×1
  • 461000107702
    $156.82
    NON RETURN VALVE - 1000107702×1
  • 471000028337
    $17.46
    REDUCTION - 1000028337×1
  • 481000028095Not stocked
    drain coupling×1
  • 491000294905Not stocked
    screw joint×1
  • 501000248638Not stocked
    minimess point×1
