VP1030R-VIBROPLATE

VP1030R Baseplate/Console cpl. Diagram

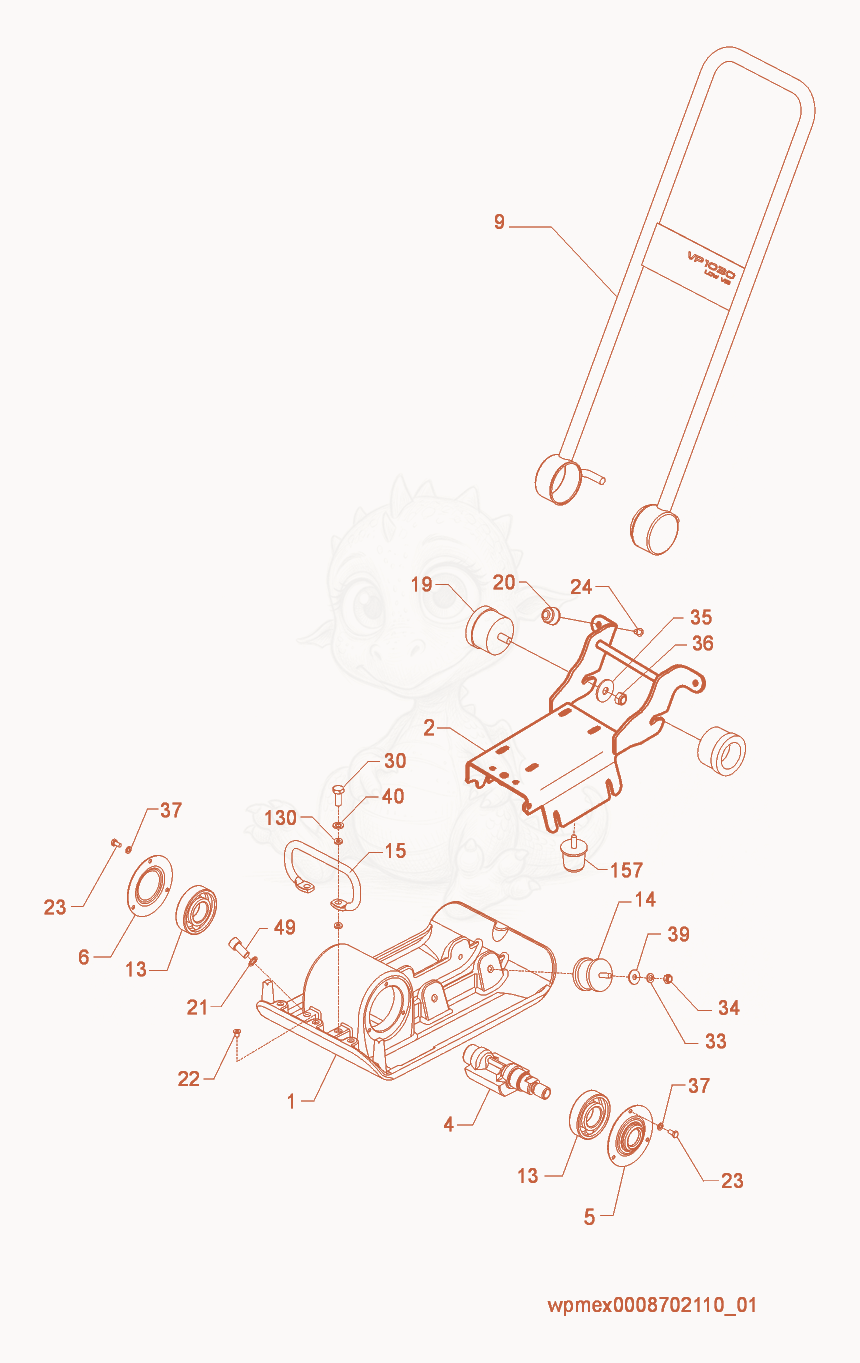

Exploded parts diagram of the Baseplate/Console cpl. of a Wacker Neuson VP1030R, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000401261
    $797.53
    Baseplate 30 cm - 5000401261×1
  • 25000401606Not stocked
    Console×1
  • 45000130148
    $136.66
    SHAFT-EXCITER - 5000130148×1
  • 55000155430
    $111.57
    CAPS-SEAL COMPLETE - 5000155430×1
  • 65000115054
    $9.38
    Cap-End w/o Hole - 5000115054×1
  • 95000400902Not stocked
    Guide handle×1
  • 135000114484
    $42.58
    BEARING-RADIAL BALL,6307-C3 - 5000114484×2
  • 145000130014
    $34.65
    SHOCKMOUNT X-REF 5000400388 - 5000130014×4
  • 155000130882
    $82.19
    HANDLE LIFTING KIT - 5000130882×1
  • 195000130064
    $27.51
    SHOCKMOUNT-LOW VIBE - 5000130064×2
  • 205000105056
    $4.79
    SHOCKMOUNT-M30X20,SPECIAL - 5000105056×2
  • 215000013444
    $3.06
    SEAL-RING 12 X 18 - 5000013444×1
  • 225000074985
    $0.18
    PLUG-CAP #1,TAPERED,PLASTC,RED - 5000074985×3
  • 235000012357
    $0.10
    SCREW M6 X 12 HX.HD. - 5000012357×6
  • 245000012360
    $0.12
    SCREW M8 X 12 HX.HD. - 5000012360×2
  • 305000011440
    $0.36
    SCREW M10 X 25 HX.HD. - 5000011440×2
  • 335000012397
    $0.10
    WASHER-LOCK B8 - 5000012397×4
  • 345000010367
    $0.10
    NUT-LOCK M8 HEX - 5000010367×4
  • 355000114766
    $6.50
    WASHER .531X 1.625X.120,FLAT - 5000114766×4
  • 365000010366
    $0.54
    NUT-LOCK M12X1.75 HEX - 5000010366×2
  • 375000010649
    $0.07
    WASHER-LOCK B6 - 5000010649×6
  • 395000010374
    $0.22
    WASHER B8.4 FLAT - 5000010374×4
  • 405000407043
    $0.95
    Washer Lock DIN6796,Zinc Mechanical - 5000407043×2
  • 495000017086
    $1.28
    Screw-M12 x 25, 12.9,Soc Mechanical Zinc - 5000017086×1
  • 1305000130787
    $1.02
    SPACER-RUBBER - 5000130787×4
  • 1575000130961
    $30.49
    Shockmount - 5000130961×1
