VP1030R-VIBROPLATE

VP1030R Clutch cpl. Diagram

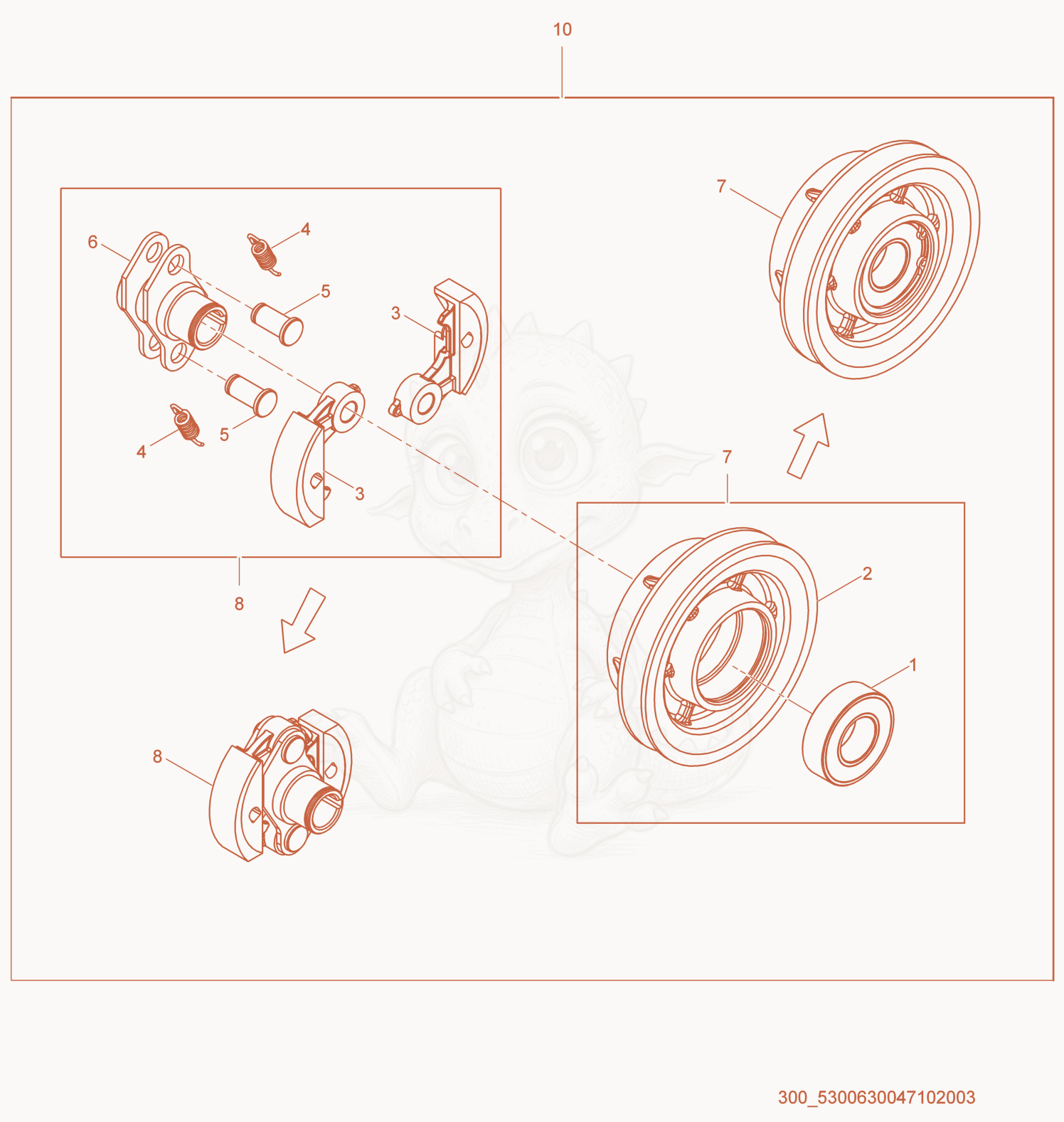

Exploded parts diagram of the Clutch cpl. of a Wacker Neuson VP1030R, with numbered balloons — Hover a box for the part, its price and its row below. Click it to select.

15000130162
$41.03
BEARING-BALL - 5000130162×1
25000130160
$148.32
DRUM-CLUTCH - 5000130160×1
35000130153
$59.30
SHOE-CLUTCH - 5000130153×2
45000130158
$10.40
SPRING-CLUTCH - 5000130158×2
55000130157
$26.49
PIN-CLUTCH ARM - 5000130157×2
65000130155
$107.12
HUB-CLUTCH - 5000130155×1
75000130149
$205.79
Clutch drum - 5000130149×1
85000130050
$180.88
SHOE-CLUTCH - 5000130050×1
105000130041
$373.67
CLUTCH-CENTRIFUGAL - 5000130041×1
