VP1030R-VIBROPLATE

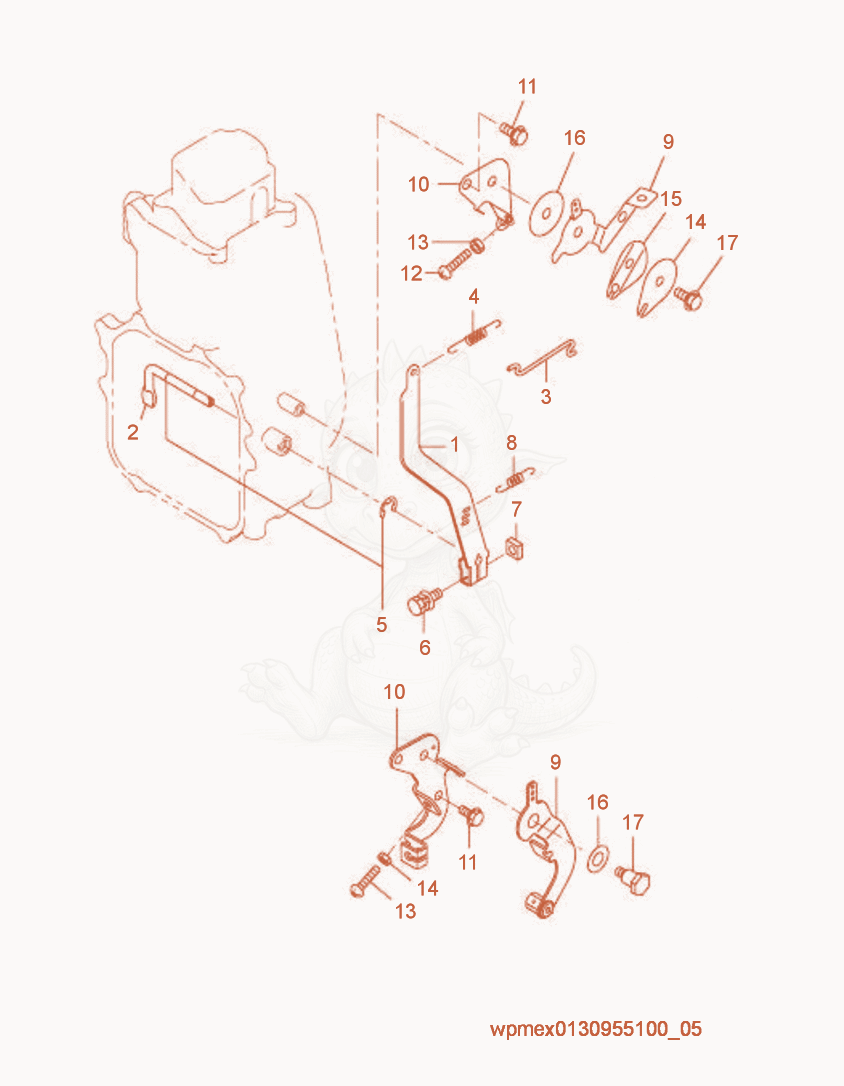

VP1030R Governor Diagram

Exploded parts diagram of the Governor of a Wacker Neuson VP1030R, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000216766Not stocked
    Governor lever×1
  • 25000216739
    $15.04
    Governor shaft - 5000216739×1
  • 35000097189Not stocked
    Governor rod×1
  • 45000216740Not stocked
    Spring×1
  • 55000156106
    $0.55
    CLIP - 5000156106×2
  • 65000156107
    $0.69
    BOLT W/WASHER - 5000156107×1
  • 75000156108
    $0.45
    nut - 5000156108×1
  • 85000216767Not stocked
    Governor spring×1
  • 95000156110
    $30.92
    CONTROL-SPEED - 5000156110×1
  • 105000156112
    $9.74
    Baseplate - 5000156112×1
  • 115000156645
    $2.46
    BOLT-FLANGE - 5000156645×2
  • 125000053649
    $0.45
    SCREW M6 X 30,PAN.HD. - 5000053649×1
  • 135000053650
    $0.58
    NUT M6,HEX - 5000053650×1
  • 145000088466
    $8.39
    PLATE-STOP - 5000088466×1
  • 155000053646
    $2.94
    WASHER-LOCK - 5000053646×1
  • 165000156111
    $1.32
    WASHER-FRICTION - 5000156111×1
  • 175000053648
    $2.65
    SCREW M6 X 14,HEX.FLANGE - 5000053648×1
