WL52

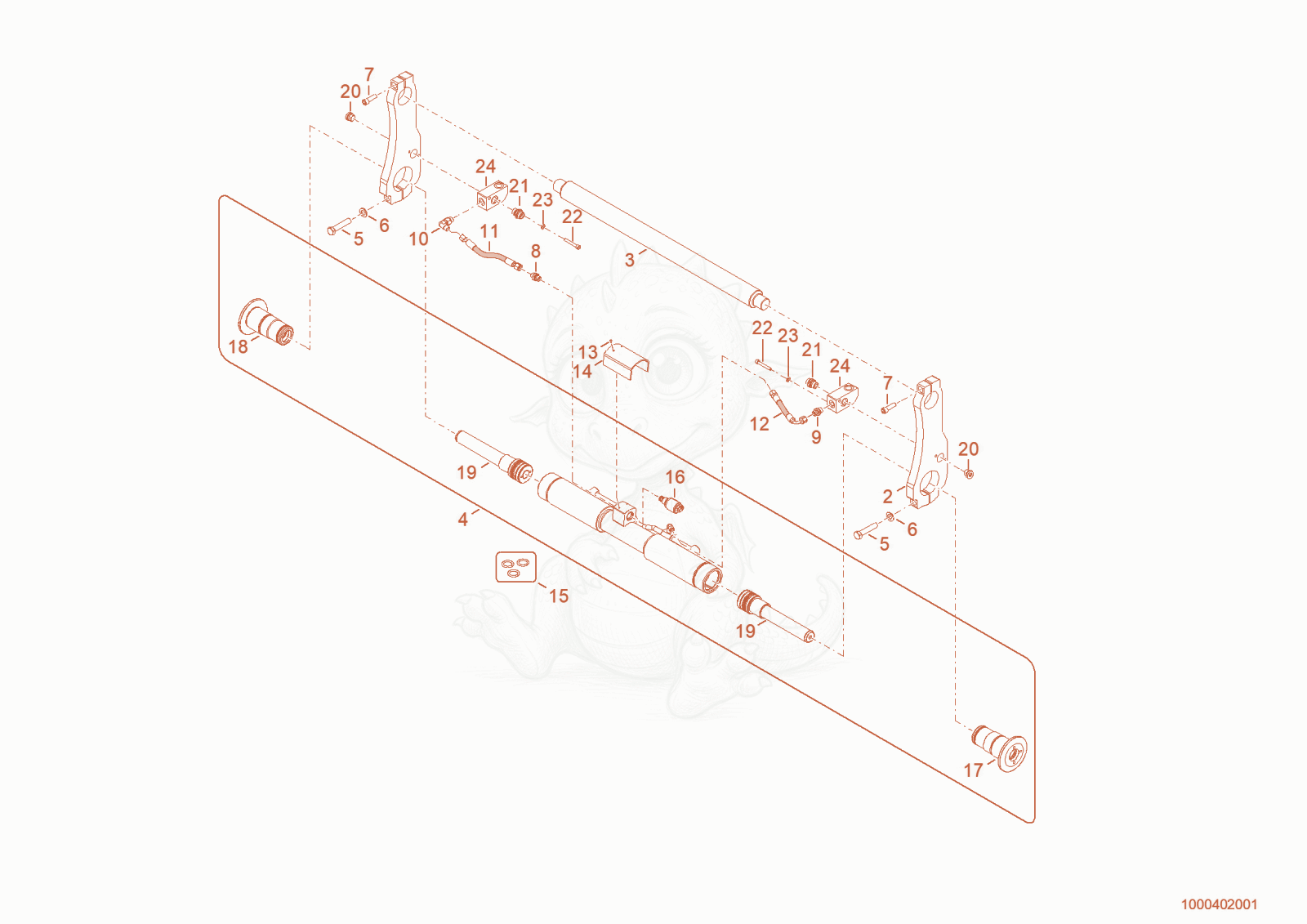

WL52 quickhitch plate Diagram

Exploded parts diagram of the quickhitch plate of a Wacker Neuson WL52, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000391284
    $504.79
    lever - 1000391284×1
  • 21000398665
    $504.79
    lever - 1000398665×1
  • 31000391286
    $477.84
    Shaft - 1000391286×1
  • 41000505615Not stocked
    locking cylinder×1
  • 51000085340
    $2.13
    hex screw - 1000085340×2
  • 61000021001
    $0.89
    WASHER - 1000021001×2
  • 71000085512
    $1.18
    allen screw M12x50 10.9 - 1000085512×2
  • 81000083057
    $5.47
    GE10LM16X1,5EDOMDA3C - 1000083057×1
  • 91000015491Not stocked
    screw joint×1
  • 101000264768
    $54.49
    EWE10LR 3/8" - 1000264768×1
  • 111000218089
    $18.40
    SLHYDR 2SC 8,0PN10 0 PN10 0 L260,0 - 1000218089Unknown×1
  • 111000399266Not stocked
    Hose×1
  • 121000399265Not stocked
    Hose×1
  • 131000048513Not stocked
    ovalhead screw×2
  • 141000413170Not stocked
    protection plate×1
  • 151000413491Not stocked
    cylinder seal kit×1
  • 161000414062
    $845.85
    Valve - 1000414062×1
  • 171000413169Not stocked
    piston liner×1
  • 181000413168Not stocked
    piston liner×1
  • 191000413167Not stocked
    piston rod×2
  • 201000030660Not stocked
    lock plug×1
  • 211000015494Not stocked
    screw joint×1
  • 221000085464
    $1.53
    cheese head screw - 1000085464×2
  • 231000015431Not stocked
    washer×2
  • 241000393559Not stocked
    distributor block×1
