WL60

WL60T4F cylinder head Diagram

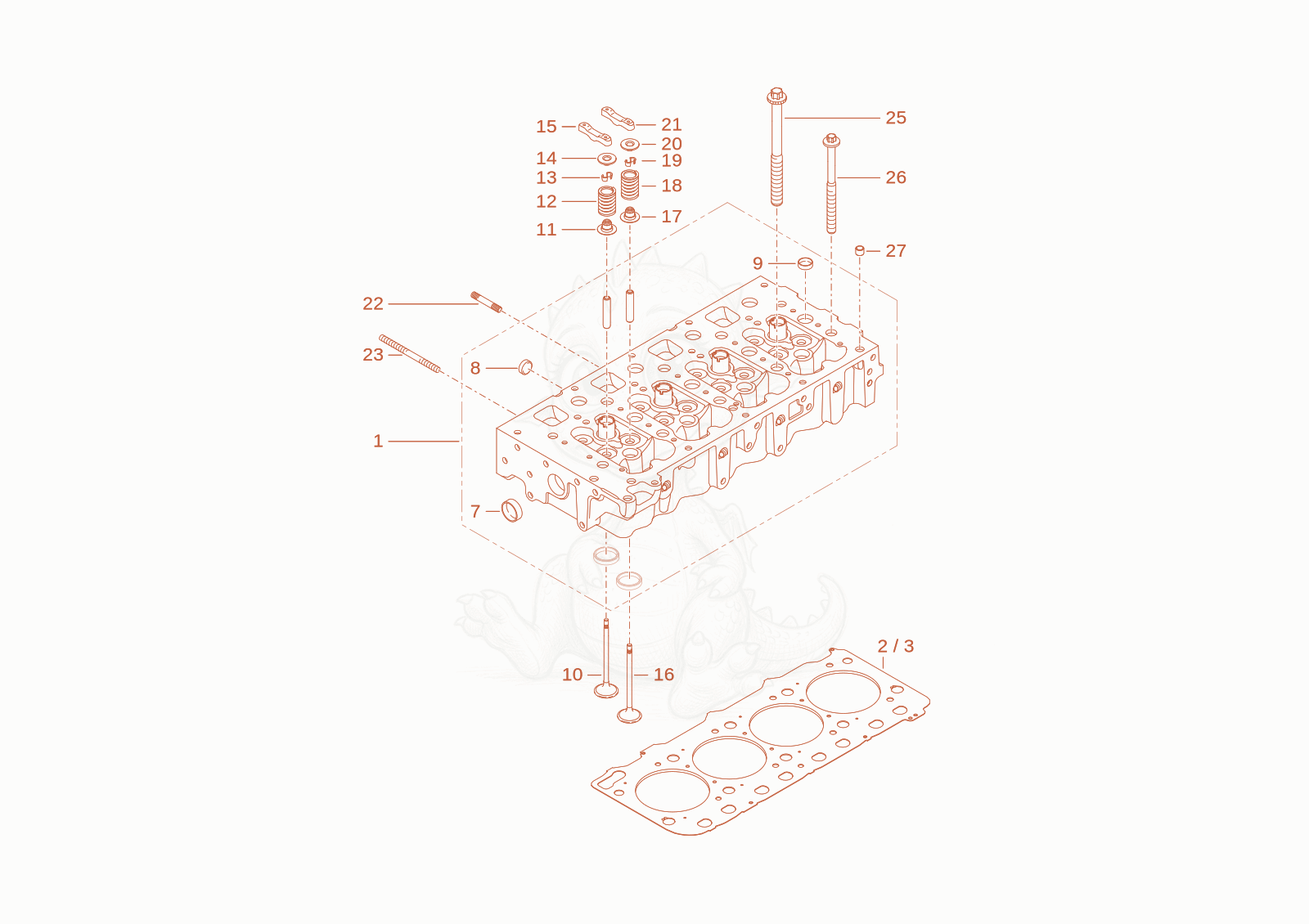

Exploded parts diagram of the cylinder head of a Wacker Neuson WL60T4F, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000484815Not stocked
    cylinder head×1
  • 21000484809Not stocked
    cylinder head gasket×1
  • 31000484810Not stocked
    cylinder head gasket×1
  • 71000310158Not stocked
    lock plug×1
  • 81000484787Not stocked
    lock plug×3
  • 91000310592Not stocked
    lock plug×12
  • 101000484788Not stocked
    intake valve×8
  • 111000484790
    $8.91
    Cap valve spring 854F - 1000484790×8
  • 121000484792
    $8.27
    Valve spring - 1000484792×8
  • 131000484793
    $27.15
    valve wedge - 1000484793×8
  • 141000484794
    $200.92
    Cap valve spring 854F - 1000484794×8
  • 151000484795Not stocked
    connection×4
  • 161000484796Not stocked
    exhaust valve×8
  • 171000484790
    $8.91
    Cap valve spring 854F - 1000484790×8
  • 181000484792
    $8.27
    Valve spring - 1000484792×8
  • 191000484793
    $27.15
    valve wedge - 1000484793×8
  • 201000484794
    $200.92
    Cap valve spring 854F - 1000484794×8
  • 211000484795Not stocked
    connection×4
  • 221000310634Not stocked
    stud bolt×8
  • 231000484799Not stocked
    stud bolt×1
  • 251000310633Not stocked
    stud bolt×6
  • 261000310631Not stocked
    stud bolt×4
  • 271000310635Not stocked
    cylinder pin×3
