WL60

WL60T4F Tubing Diagram

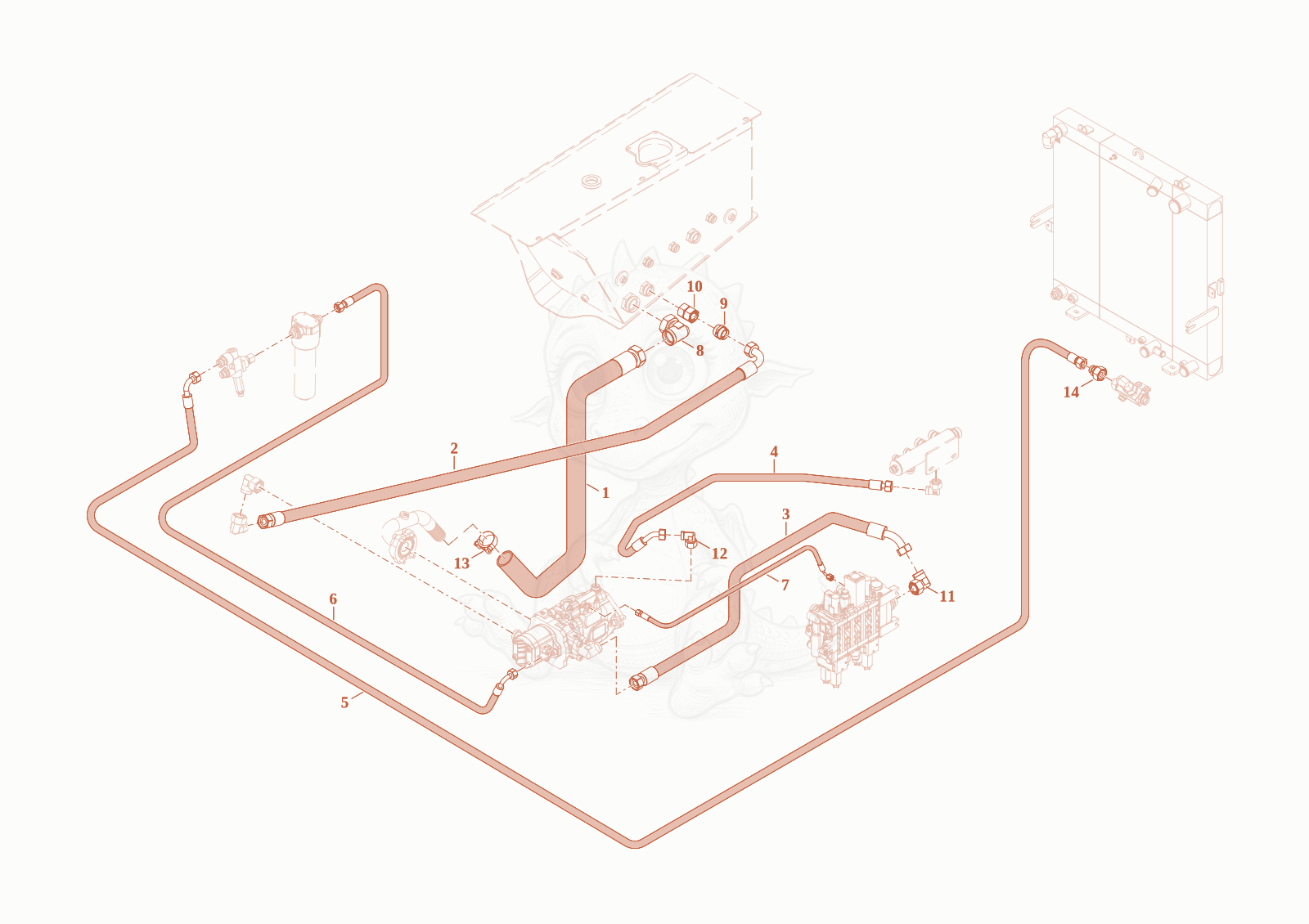

Exploded parts diagram of the Tubing of a Wacker Neuson WL60T4F, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000320299Not stocked
    Hose×1
  • 21000218094
    $98.08
    Slhydr1Sn25Pn280Pn2890L1150 1000218094×1
  • 31000337180Not stocked
    Hose×1
  • 41000221603
    $71.39
    SLHYDR 1SN 16 PN18 0 PN18 45 L1450 S - 1000221603×1
  • 51000303975
    $71.02
    SLHYDR 2SC 16 PN18 0 PN18 90 L1750 - 1000303975×1
  • 61000222424
    $28.05
    SLHYDR 2SN 12 PN15 0 PN15 90 L1350 - 1000222424×1
  • 71000320272Not stocked
    Hose×1
  • 81000162881
    $88.80
    EW42LOMDA3C - 1000162881×1
  • 91000085083
    $28.18
    G28LOMDA3CX - 1000085083×1
  • 101000085062
    $41.36
    SCREW JOINT - 1000085062×1
  • 111000085091
    $31.25
    EW28LOMDA3C - 1000085091×1
  • 121000015513Not stocked
    screw joint×1
  • 131000018527Not stocked
    hose clamp×1
  • 141000028292Not stocked
    screw joint×1
