WL60

WL60T4F REAR PART CHASSIS Diagram

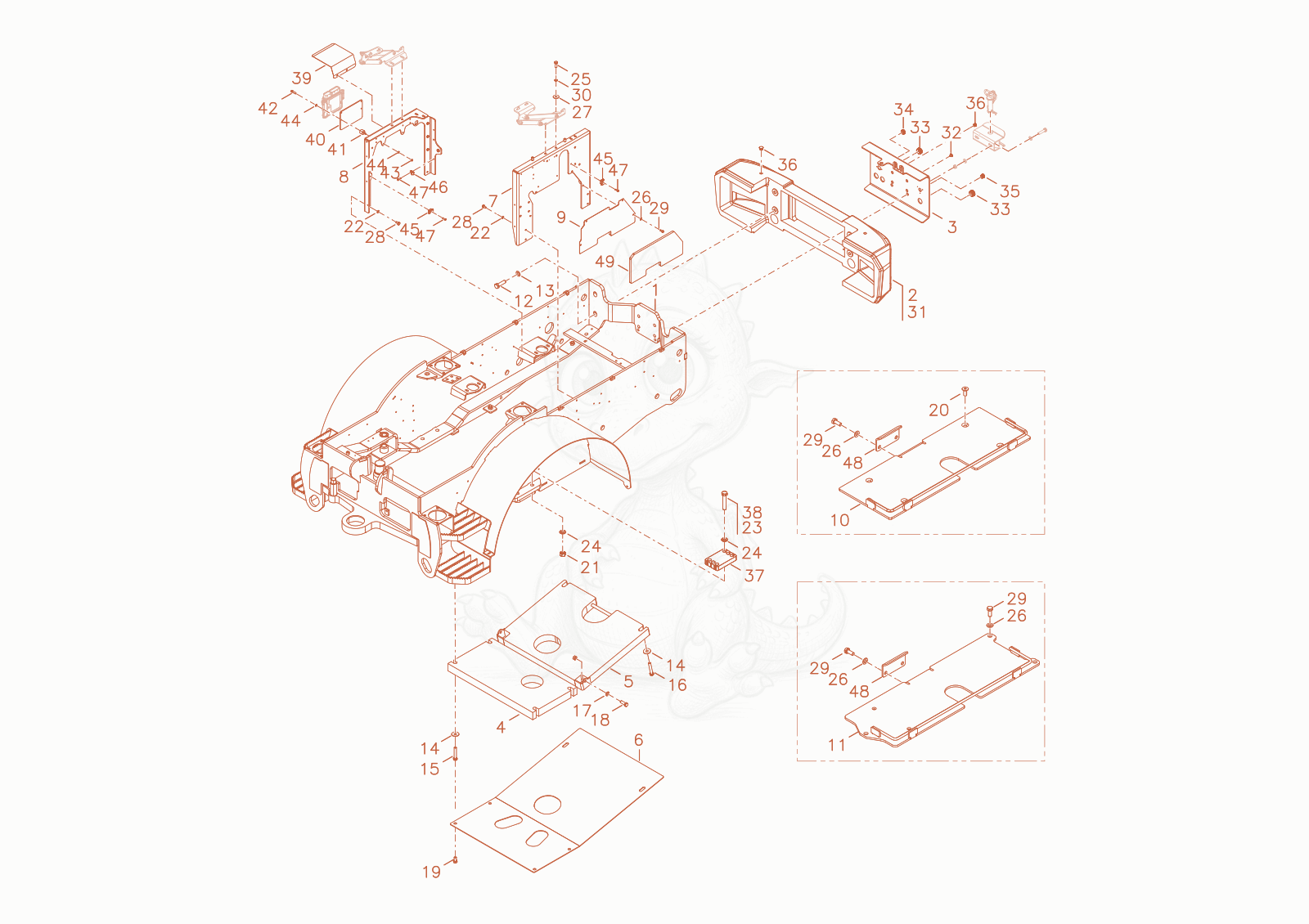

Exploded parts diagram of the REAR PART CHASSIS of a Wacker Neuson WL60T4F, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000342344Not stocked
    REAR PART CHASSIS×1
  • 21000288792
    $2,322.66
    Ballastweight 1000288792×1
  • 31000352760Not stocked
    frame cover×1
  • 41000288736
    $2,846.05
    Ballastweight 1000288736×1
  • 51000287704
    $2,490.88
    Ballastweight 1000287704×1
  • 61000380287Not stocked
    floor plate×1
  • 71000342330Not stocked
    console hinge×1
  • 81000344095Not stocked
    console hinge×1
  • 91000359972Not stocked
    heat protection plate×1
  • 101000342322Not stocked
    battery plate×1
  • 111000397641Not stocked
    battery plate×1
  • 121000082423
    $2.84
    hex screw - 1000082423×4
  • 131000222745
    $2.89
    u-washer - 1000222745×4
  • 141000223013
    $1.84
    Washer - 1000223013×6
  • 151000085340
    $2.13
    hex screw - 1000085340×4
  • 161000085341
    $2.71
    hex screw - 1000085341×2
  • 171000015404Not stocked
    hex screw×2
  • 181000021001
    $0.89
    WASHER - 1000021001×2
  • 191000109786
    $3.41
    hex screw - 1000109786×6
  • 201000224069
    $1.16
    Bolt - 1000224069×4
  • 211000274071
    $1.81
    Hexagon nut M20-10 ISO 4032-Geomet 321 - 1000274071×8
  • 221000015432
    $0.05
    washer 10,5 A2C DIN125 - 1000015432×18
  • 231000223382
    $8.89
    hex screw - 1000223382×8
  • 241000274540
    $1.33
    U-WASHER - 1000274540×16
  • 251000085404
    $0.93
    hex screw - 1000085404×4
  • 261000015431Not stocked
    washer×7
  • 271000222774
    $1.22
    u-washer - 1000222774×4
  • 281000015345
    $1.55
    Hex Screw M10x25-8.8 A2K-DIN933 - 1000015345×8
  • 291000013008Not stocked
    hex screw×9
  • 301000022017Not stocked
    spring washer×4
  • 311000287728
    $3,216.53
    Ballastweight 1000287728×1
  • 321000350305Not stocked
    lock plug×5
  • 331000297711
    $5.56
    Plug - 1000297711×5
  • 341000204971
    $2.18
    PLUG-PLASTIC - 1000204971×1
  • 351000213288
    $2.83
    Plug - 1000213288×1
  • 361000327901
    $1.45
    Plug - 1000327901×4
  • 371000238302
    $171.86
    Plate 1000238302×2
  • 381000274029
    $8.62
    hex screw - 1000274029×8
  • 391000376844Not stocked
    cover plate×1
  • 401000374804Not stocked
    bracket×1
  • 411000299892
    $2.87
    rubber buffer - 1000299892×4
  • 421000085457
    $0.13
    allen screw M6x25-8.8 A2C DIN912 - 1000085457×4
  • 431000085588
    $0.32
    self-locking nuts M6-8 A2C-DIN985 - 1000085588×4
  • 441000015430Not stocked
    u-washer×8
  • 451000282739
    $2.12
    sockets - 1000282739×14
  • 461000282738
    $2.17
    sockets - 1000282738×2
  • 471000356352
    $2.30
    Rivet - 1000356352×16
  • 481000374375Not stocked
    bracket battery×2
  • 491000342382Not stocked
    Silencing foam×1
